ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
ONN-X3Q Waterproof LED Freezer Lamp Screw Mount For Refrigerated Displays
Specifications
Place of Origin :
Guangdong, China
Delivery Time :
5-8 working days
lifespan :
40000H
MOQ :
1
Payment Terms :
T/T
Material :
PC
Packaging Details :
packaging size based on the length
Application :
Freezer Shelf,supermarket shelves
Model Number :
X3Q
Price :
$4.60-7
Installation :
Fixed by screws
Supply Ability :
1-800pcs 5-12 working days
Power :
AC200-240V
Certification :
IP65
IP Rating :
IP65
Brand Name :
ONN
Description

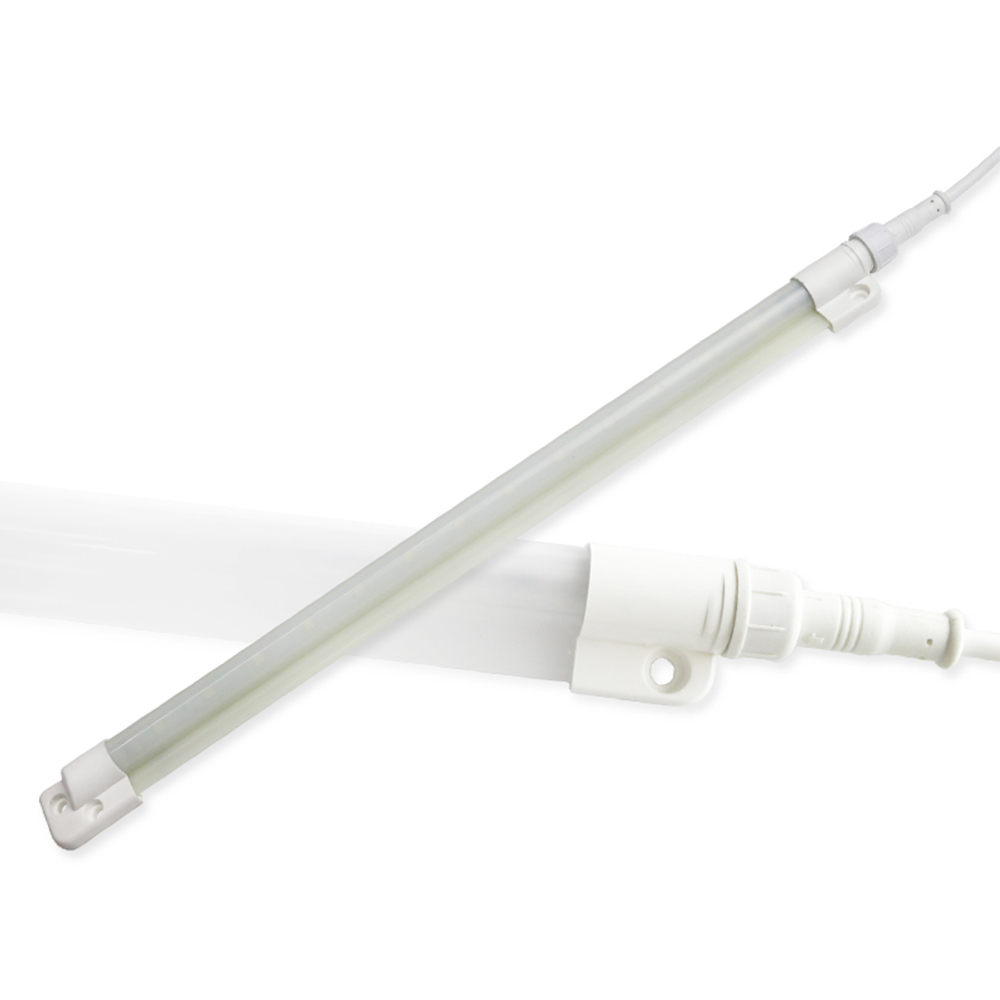

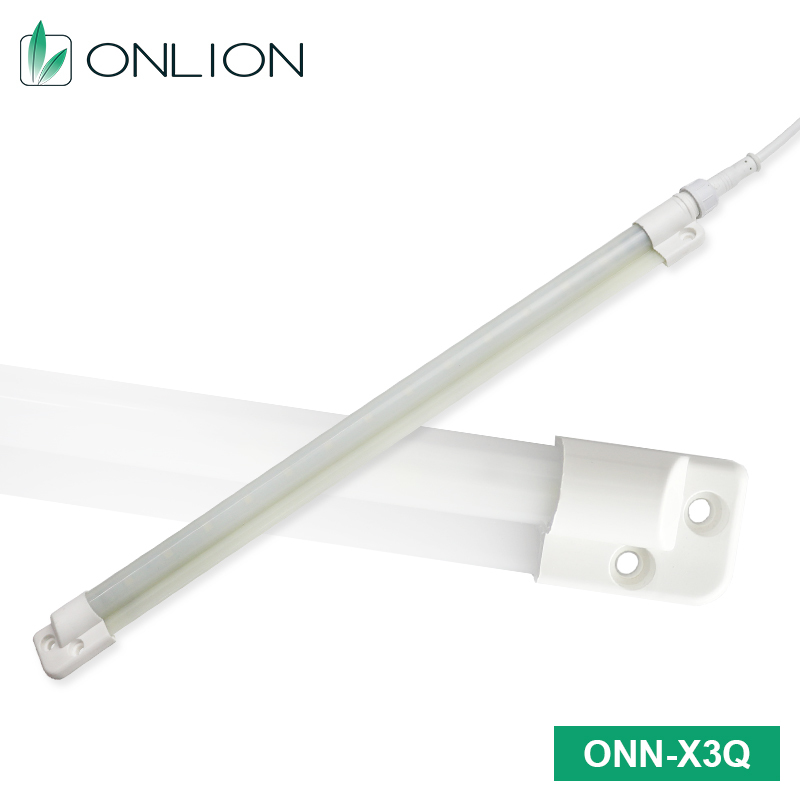

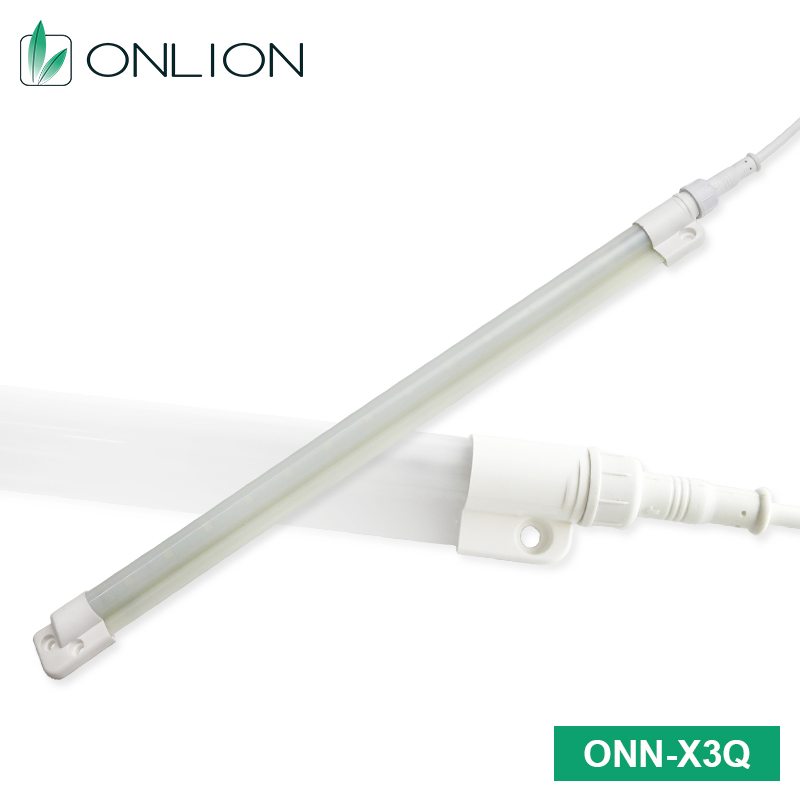

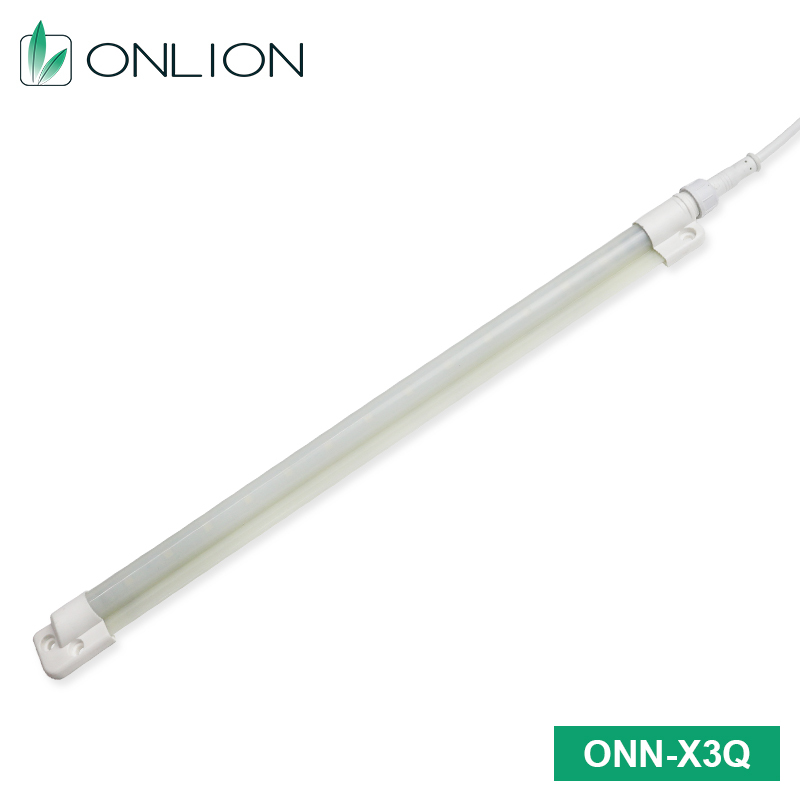

ONN-X3Q Waterproof LED Freezer Lamp Screw Mount for Refrigerated Displays

Product Overview

ONN-X3Q is an IP65 vapor-sealed LED light for refrigerated displays and freezer rooms. High-brightness SMD2835 delivers 95-100lm/W, CRI>80, 5500-6000K. Slim 22.5mm profile, 9 lengths (315-1435mm), left/right 45° direction. AC200-240V. 40,000hr life. CE/RoHS. 2-year warranty.

Selection Quick Reference

Length Power Best For
315mm 8W Small store counters
490-575mm 11-12W Medium display cases
740-875mm 16-18W Standard coolers
1025-1175mm 20-24W Large displays
1435mm 30W Walk-in coolers

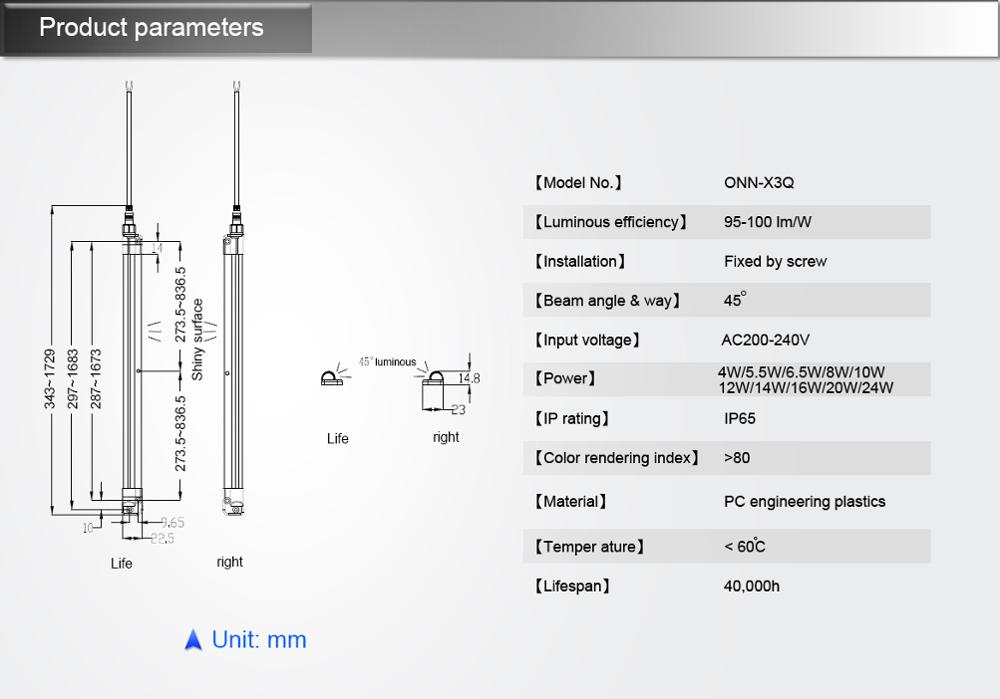

Specs

Parameter Detail
IP Rating IP65 — fully vapor sealed
Efficacy 95-100 lm/W
CCT 5500-6000K (cool white)
CRI >80Ra
Beam Angle 110°-120°
Voltage AC200-240V 50/60Hz
PF >0.9
Surface Temp <50°C
Lifetime 40,000 hrs

Key Features

  • All vapor sealed — no moisture/steam concerns

  • High brightness SMD2835 with wide 110-120° angle

  • Slim 22.5mm body — easy to integrate into displays

  • Left or Right 45° emitting direction optional

  • Screw mount — simple installation

  • Low surface temp (<50°C) — safe near food products

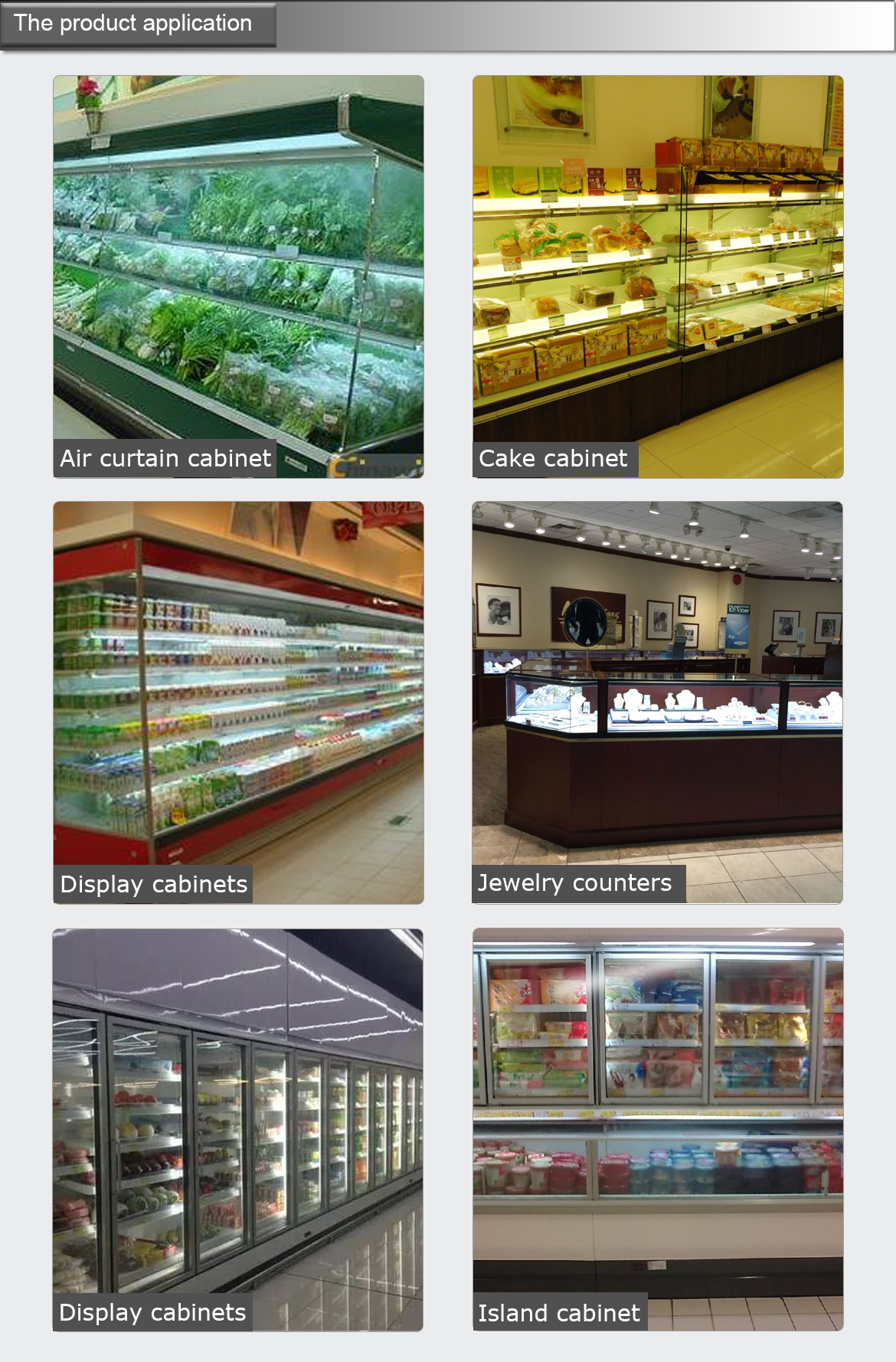

Applications

Freezer rooms, refrigerators, display shelves, store counters, coolers, cold storage.

Package Info

L1 (mm) 343 518 603 768 901 1055 1203 1463 1748
Qty 200 100 100 100 100 100 100 100 200
G.W. 9.6 7.7 7.5 8.5 9.3 10.2 11 12.6 14.7kg
