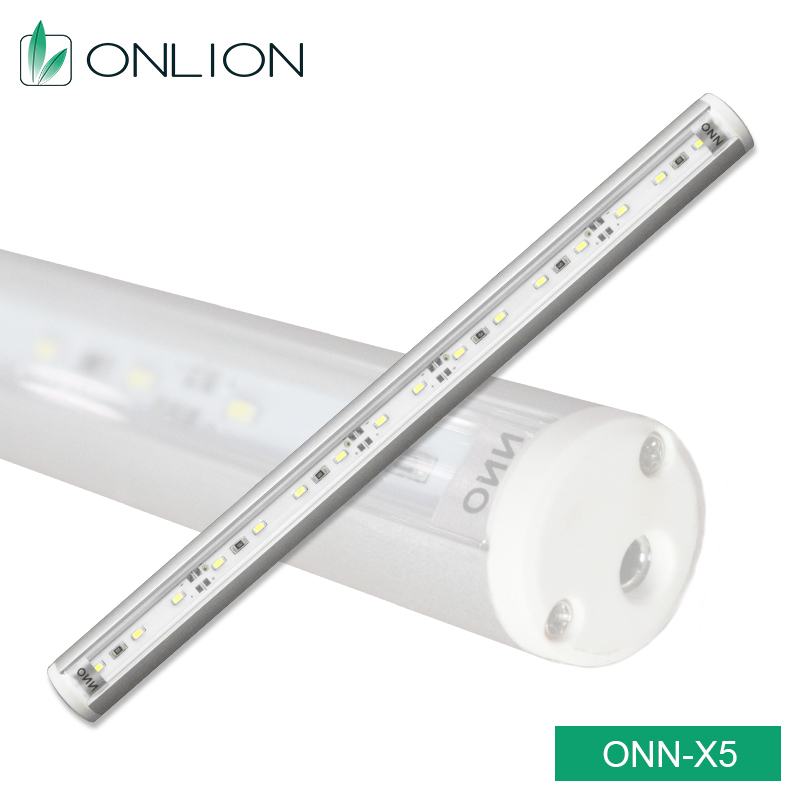

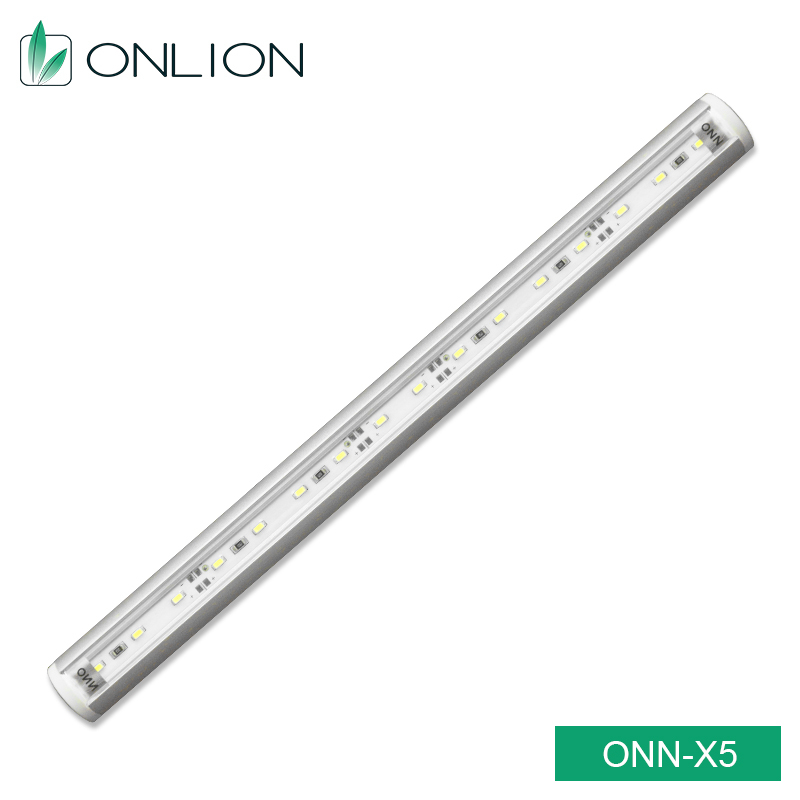

ONN X5 Ultra Brightness Cooler Lighting DC24V IP65 Freezer LED Light Refrigerator Lamps

Product Overview

Patented Φ19 round aluminum linear lamp for supermarket freezers, refrigerated display cases and jewelry counters, IP55 dust & moisture resistant. Adopts 2835 SMD LEDs with aluminum PCB for efficient heat dissipation. Features 360° rotatable clip mounting, seamless daisy-chain connection without dark gaps, dual DC12/DC24 voltage and three color temperature options, 50,000-hour LED lifespan, 18-month warranty.

Quick Detail

• Housing: 19mm round aluminum extrusion, single-side light-emitting PC cover, IP55 rating
• Light source: 0.2W 2835 SMD LED, beam angle 110°, CRI Ra≥80, luminous efficiency 80–90Lm/W
• Voltage options: AC/DC12V / AC/DC24V
• CCT selections: 2800–3200K warm white / 4000–4500K neutral white / 6500K cool white
• Standard lengths & power: 600(6.5W)/900(9.5W)/1200(12W)/1500(14W)/1800(18W)
• Wiring: 0.15m standard SYP plug wire

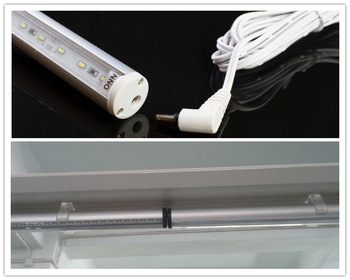

• Mount: Slidable plastic metal clips with 360° full rotation to adjust light direction
• Connection: Interlinkable end caps for seamless continuous lighting (no dark joints)
• Surface temperature: ＜60℃
• Lifespan: 50,000H
• Environment: Operate -20~45℃, store -40~70℃, humidity 10%–90%

Specifications

Competitive Advantages

• Slim Φ19 round tube design saves limited cabinet internal space
• 360° adjustable lamp clips solve fixed-angle defects of traditional T5 tubes
• Ultra-thin connecting terminals achieve gap-free seamless series lighting
• Aluminum substrate greatly reduces light decay and extends service life
• Three color temperatures fit fruit, meat, jewelry and general commodity display
• Lightweight metal body avoids breakage during transportation & installation

Applications

CNC machining centers, SMT lines, automated packaging, injection molding, robotics workcells, conveyors, and industrial warning systems.

Package Info

49pcs per outer carton for all lengths, single net weight ranges 0.13–0.42kg
