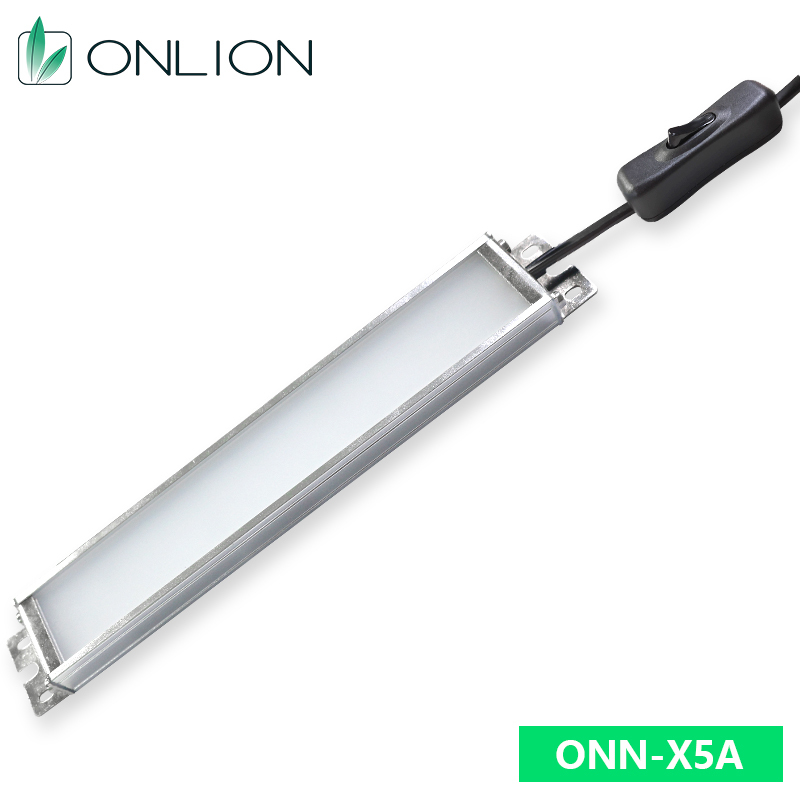

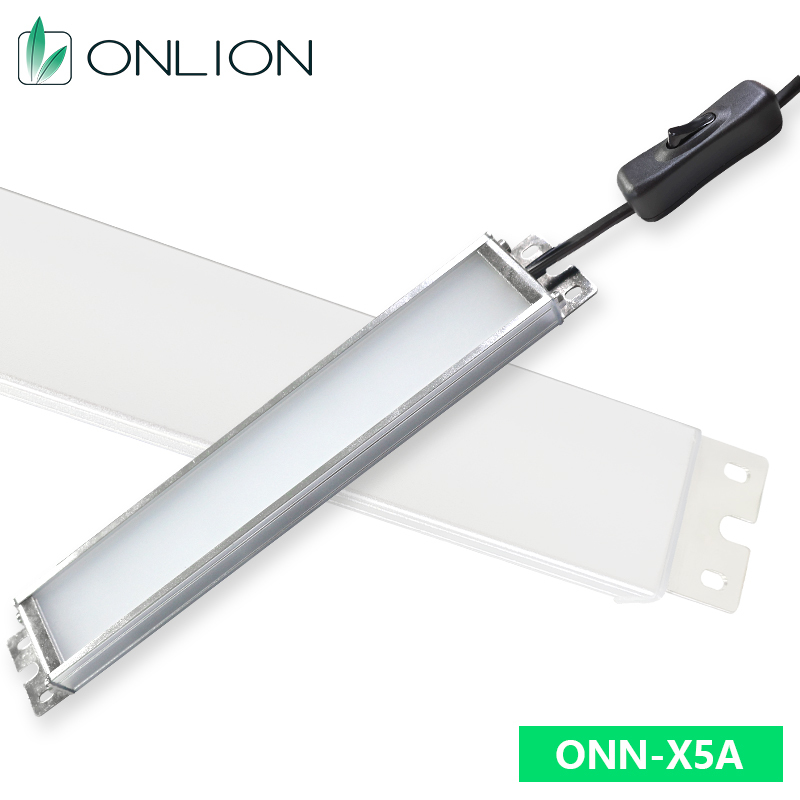

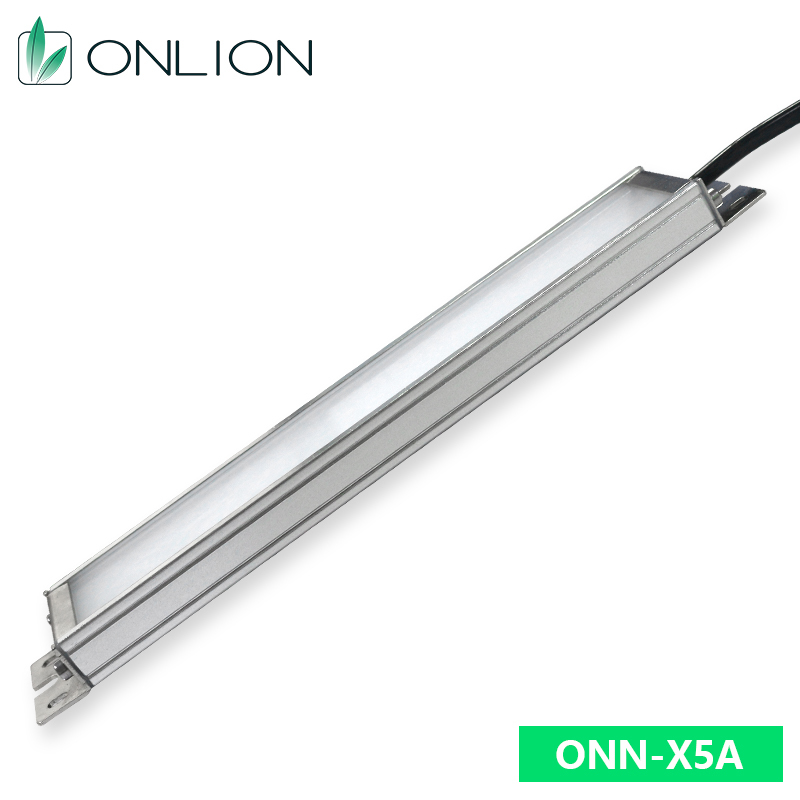

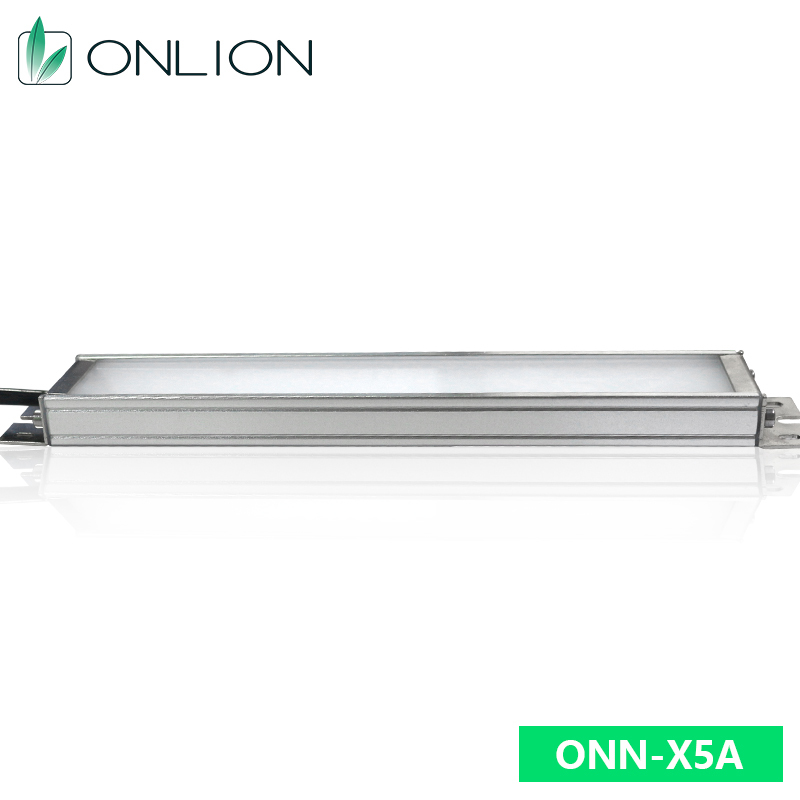

ONN X5A Machine Work Light with Optional Length/Aluminum Body/PC Cover DC24V with Switch Suit for Workbench and Cabinet Lighting

Product Overview

Slim aluminum linear machine lamp with anti-glare frosted PC diffuser, IP50 dustproof grade, powered by wide-range DC20–28V (DC24V nominal). Equipped with 2835 SMD LEDs, 1.45m built-in on/off switch cable, screw fixed mounting. Three color temperature options and multiple length/power specs, uniform soft illumination, long 50,000-hour LED lifespan, 12-month warranty for CNC machines, electrical cabinets, freezers and railway inspection equipment.

Quick Detail

• Housing: Aluminum alloy + anti-glare frosted PC cover, IP50
• Light source: 2835 SMD LED, 120° beam angle, CRI Ra≥82, luminous efficiency 61–76Lm/W
• Voltage: DC20–28V nominal DC24V, PF=1.0
• CCT options: 2800–3200K warm white / 4000–4500K neutral white / 6000–6500K cool white
• Standard sizes & power: 225mm(5W,347.5lm) / 390mm(10W,748lm) / 555mm(15W,1142lm) / 912mm(24W)
• Wiring: 1.45m integrated power cord with independent on-off switch
• Mount: Φ3mm screw direct fixing
• Surface temperature: ≤60℃
• Lifespan: 50,000H
• Environment: Operate -20~45℃, store -40~70℃, humidity 10%–90%

Specifications

Competitive Advantages

• Special anti-glare optical cover delivers soft, even non-irritating lighting
• Independent inline switch enables one-click power control without extra circuit modification
• Wide DC20–28V input fits all industrial 24V control power supplies
• Aluminum body with excellent heat dissipation reduces light decay and maintenance costs
• Simple screw mounting for fast installation on machine cabinets and equipment panels
• Multiple color temperatures match machine inspection, refrigeration and cabinet lighting demands

Applications

CNC machine tools, electrical control cabinets, supermarket freezers, refrigerated display cases, railway inspection equipment, industrial workstations.

Package Info

eparate carton dimensions & loading quantities for each length:

225/390/555mm: 20pcs per carton; 912mm: 9pcs per carton, single net weight 0.22–0.6kg
