ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
ONN M9Q Anti Corrosion LED Machine Work Light IP67 Waterproof Aluminium Alloy Housing
Specifications
Supply Ability :
50000pcs/month
Warranty(Year) :
2-Year
Payment Terms :
T/T
IP Rating :
IP67
Packaging Details :
8pcs/10pcs in 1ctn
Input Voltage(V) :
Dc 24V
Place of Origin :
Guangdong,China
MOQ :
1
Price :
$21~26
Lamp Body Material :
Aluminum alloy
Model Number :
ONN-M9Q
Brand Name :
ONLION
Certification :
FCC CE ROHS
Color Temperature(CCT) :
6000-6500K/4000-4500K/2800-3200K
Delivery Time :
5~8 working days
Application :
Workshop
Description

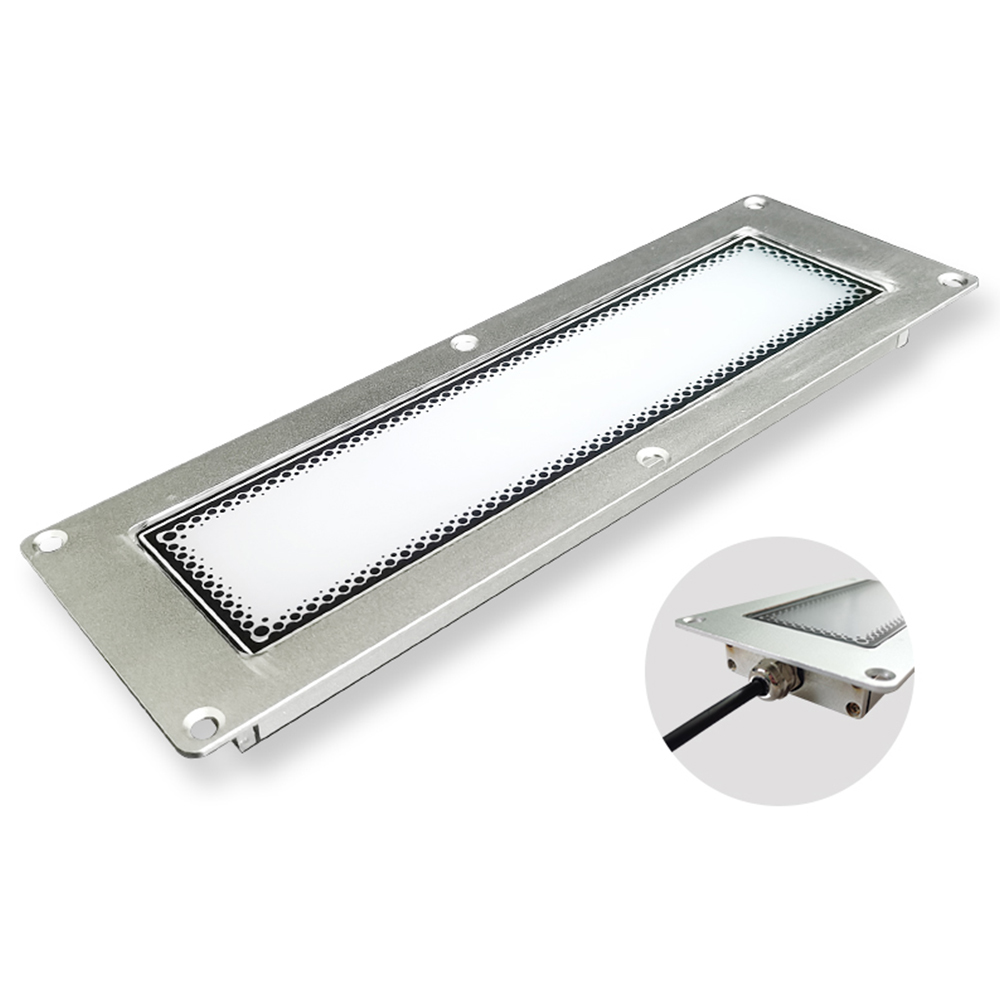

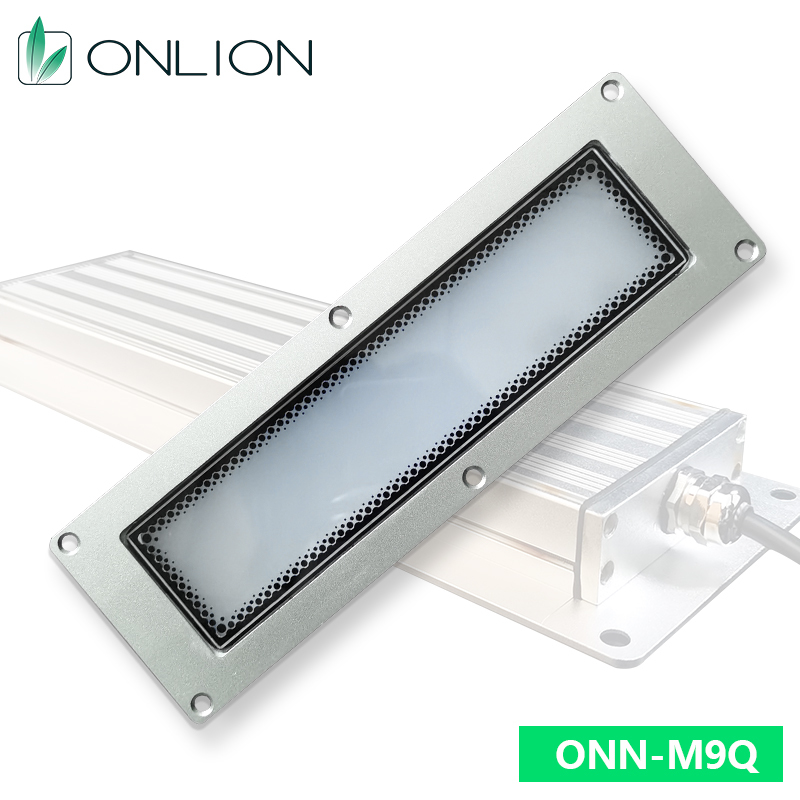

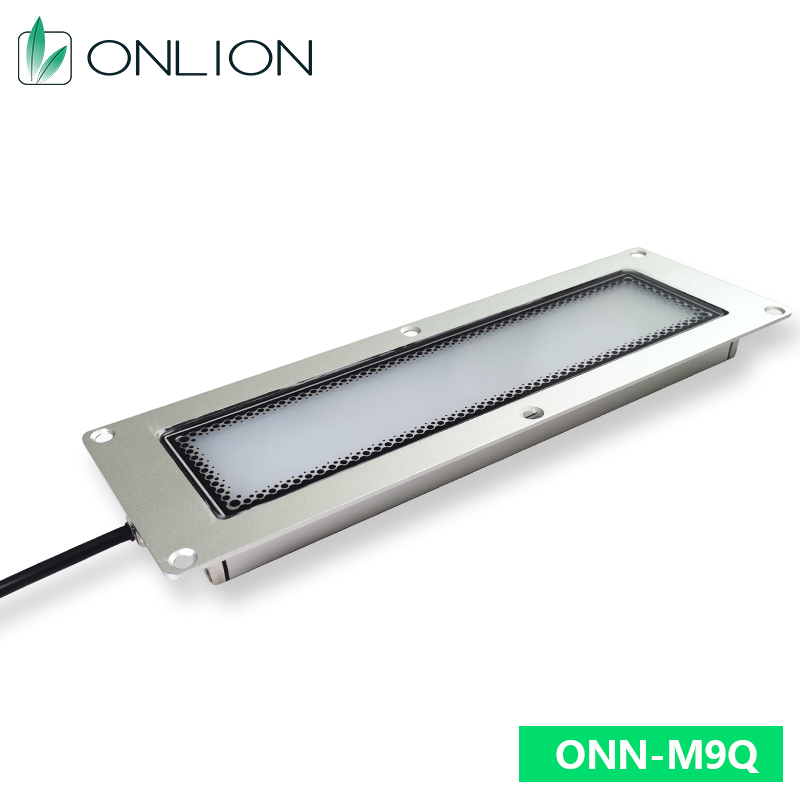

ONN M9Q LED Work Light IP67 Waterproof & Corrosion-Proof with Aluminium Alloy Housing

Product Overview

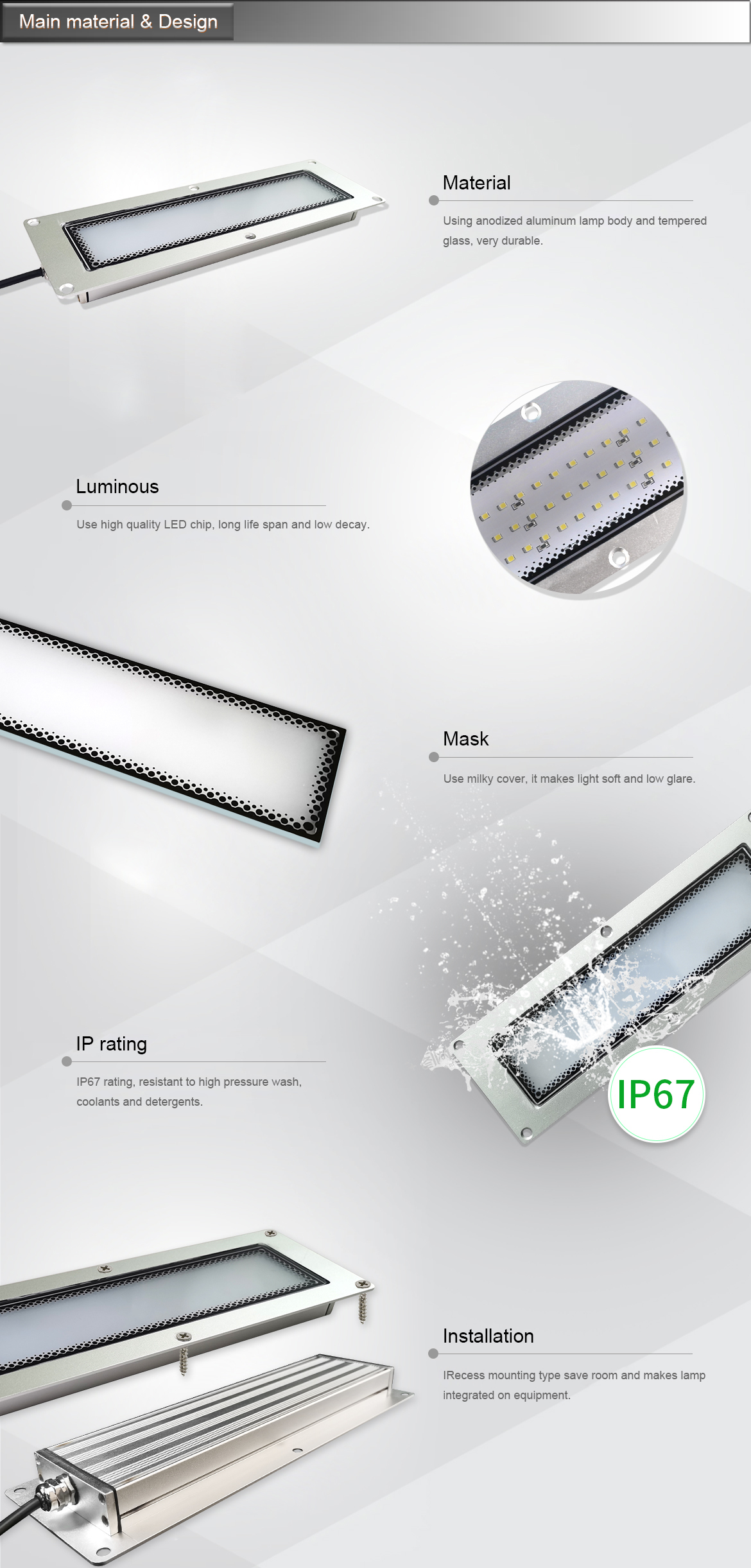

Flush-mounted industrial LED lamp with sandblasted aluminum alloy housing, tempered glass + PC diffuser, fully IP67 sealed with rubber gaskets. Adopts 2835 LEDs with low light decay. Supports DC24V/AC220V dual voltage, 3 color temperatures and 4 length/power options. Fixed by sunk screws, ideal for CNC equipment requiring high protection, with 12-month warranty.

Quick Detail

  • Housing: Oxidized sandblasted aluminum, tempered glass+PC diffuser, IP67
  • LED: 2835 chip, efficiency 61–64Lm/W, Ra≥82, 110° beam angle, 50,000h lifespan
  • Voltage: DC24V / AC220V (±2V tolerance), PF=1.0, 0.5m standard cable
  • Sizes & Power: 280mm/12W, 360mm/18W, 430mm/24W, 730mm/39W
  • CCT: 6000-6500K / 4000-4500K / 2800-3200K
  • Mount: Recessed flush installation, Φ5 countersunk screw fixing
  • Temp range: -20~45℃ operation; -40~70℃ storage, humidity 10%-90%

Specifications

Parameter Specification
Model ONN-M9Q-B1/B2/B3
Input Voltage DC24V / AC220V (±2V)
Optional Sizes & Power 280mm/12W; 360mm/18W; 430mm/24W;730mm/39W
Luminous Flux 721.6LM / 1108LM / 1478LM
Luminous Efficiency 61–64Lm/W
CRI Ra≥82
Beam Angle 110°
IP Rating IP67
LED Lifetime 50,000H
Max Surface Temp ≤60℃
Mounting Recessed flush, Φ5 countersunk screw
Standard Cable 0.5m
Operating Temp -20℃ ~ +45℃
Storage Temp -40℃ ~ +70℃

Competitive Advantages

  1. Recessed flush design saves machine internal space
  2. Sandblasted aluminum shell delivers good heat dissipation & corrosion resistance
  3. IP67 full sealing with matching rubber gasket, anti-cutting fluid & dust
  4. Dual voltage DC24V/AC220V fits different factory power supplies
  5. 4 lengths & 3 color temperatures to match various machine sizes
  6. Impact-resistant tempered glass with soft uniform light output

Applications

CNC machining centers, CNC milling lathes and high-protection industrial equipment.

Package Info

Carton packaging, size-based parameters:
    • 280mm:10pcs/ctn, single N.W.0.44kg, outer box 380×320×290mm
    • 360mm:10pcs/ctn, single N.W.0.57kg, outer box 450×265×345mm
    • 430mm:8pcs/ctn, single N.W.0.68kg, outer box 530×290×240mm
    • 730mm:10pcs/ctn, single N.W.1.16kg, outer box 865×365×290mm
