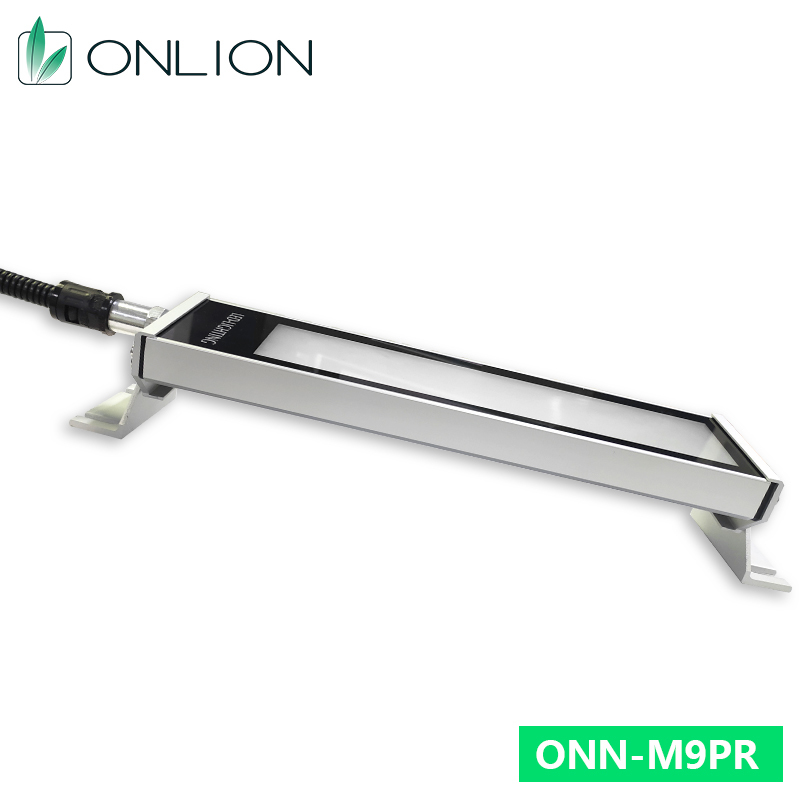

Product Overview

Aluminum alloy industrial machine lamp with tempered glass and IP67 full sealing. Equipped with high-stability 2835 LEDs, low light decay and excellent heat dissipation. Adjustable bracket supports 120° angle rotation via M5/M6 screw fixing. DC24V power supply, 3 optional color temperatures, multiple lengths/power options for machine tools and cold storage lighting, 18-month warranty.

Quick Detail

• Housing: Aluminum alloy + tempered glass, IP67 waterproof/dustproof
• Light source: 2835 LED; Efficiency: 80-90Lm/W, CRI Ra≥83, 120° beam angle
• Voltage: DC24V ±2V, PF=1.0, standard 0.55m power cord
• Sizes & Power: 300mm(12W), 400mm(18W), 600mm(28W), customizable length
• CCT options: 6000-6500K / 4000-4500K / 2800-3200K
• Mount: M5/M6 screw bracket, 120° angle adjustable
• Lifetime: 50,000H, surface temp <60℃
• Ambient range: -20~45℃ operation, -40~70℃ storage, humidity 10%-90%

Specifications

Competitive Advantages

• All-aluminum structure with good heat dissipation, effectively suppress light decay
• IP67 fully sealed design, withstands cutting fluid, dust and humid cold storage environments
• Rotatable bracket for 120° lighting angle adjustment, flexible installation
• Three color temperatures & three standard lengths to match diverse equipment demands
• High color rendering, uniform wide-angle illumination, flicker-free DC24V stable output
• Wide temperature adaptability, suitable for factory and low-temperature warehouse scenarios

Applications

CNC machine tools, machining equipment, cold storage interior lighting

Package Info

• 300mm: 16pcs/carton, single N.W.0.51kg, outer box 395×350×345mm
• 400mm: 9pcs/carton, single N.W.0.64kg, outer box 530×290×240mm
• 600mm: 16pcs/carton, single N.W.0.90kg, outer box 670×310×400mm
