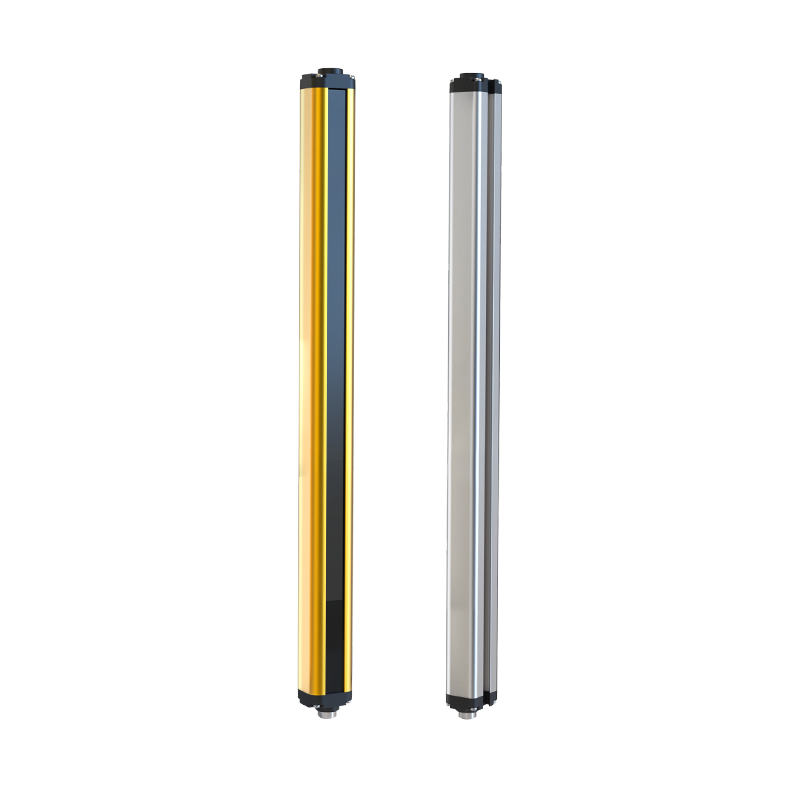

ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
Specifications
Features :
Relative expression
Enclosure rating :
IP65
Brand Name :
ONLION
Manufacturer Part Number :
GS-D
Output :
PNP / NPN
Storage temperature :
-30°C-70°C (with freezing)
Usage :
Industrial Equipment
Wave length :
940nm
Housing cross-section :
35*27mm
Place of Origin :
Guangdong, China
Type :
Safety light curtains
Capacity :
<5W
MOQ :
2
Theory :
Infrared radiation
Power supply :
DC10V-30V
Mounting Type :
Bracket fixed installation
Anti-optical interference :
10000 Lux ( angle>5" )
Description :
Infrared safety protection device, ONN-GS-D
Resolution :
15mm,25mm,45mm
Series :
Safety light curtains
Enclosure material :
Aluminum alloy
Product name :
SafetyLightCurtain
Description
ONN-GS-D IP65 Waterproof DC10V/30V Safety Curtains Light for CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
Products Description
1. Aluminum alloy, tempered glass material.2. Various non-standard requirements are quickly customized.
3. With security self-check mutual check function.
4. The maximum range of the beam can reach 30m.
5. Using line synchronization technology, anti-light interference ability is strong.
6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.
7. A variety of bracket installation options, convenient and fast.
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
Spectification
Beam space
10mm,20mm,40mm
Protective height
Protective height=(N-1)*beam gap, N is beam quantity.
Sensing distance
0.1~0.5m,0.1~2m,0.1~5m
Sensing method
Through-beam type
Synchronization
Wire synchronization
Ambient operating temperature
-10°C~55°C (with freezing)
Resolution
15mm,25mm,45mm
Response time
Response time=(N*0.1ms)+0.4ms ( N is beams qty )
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine

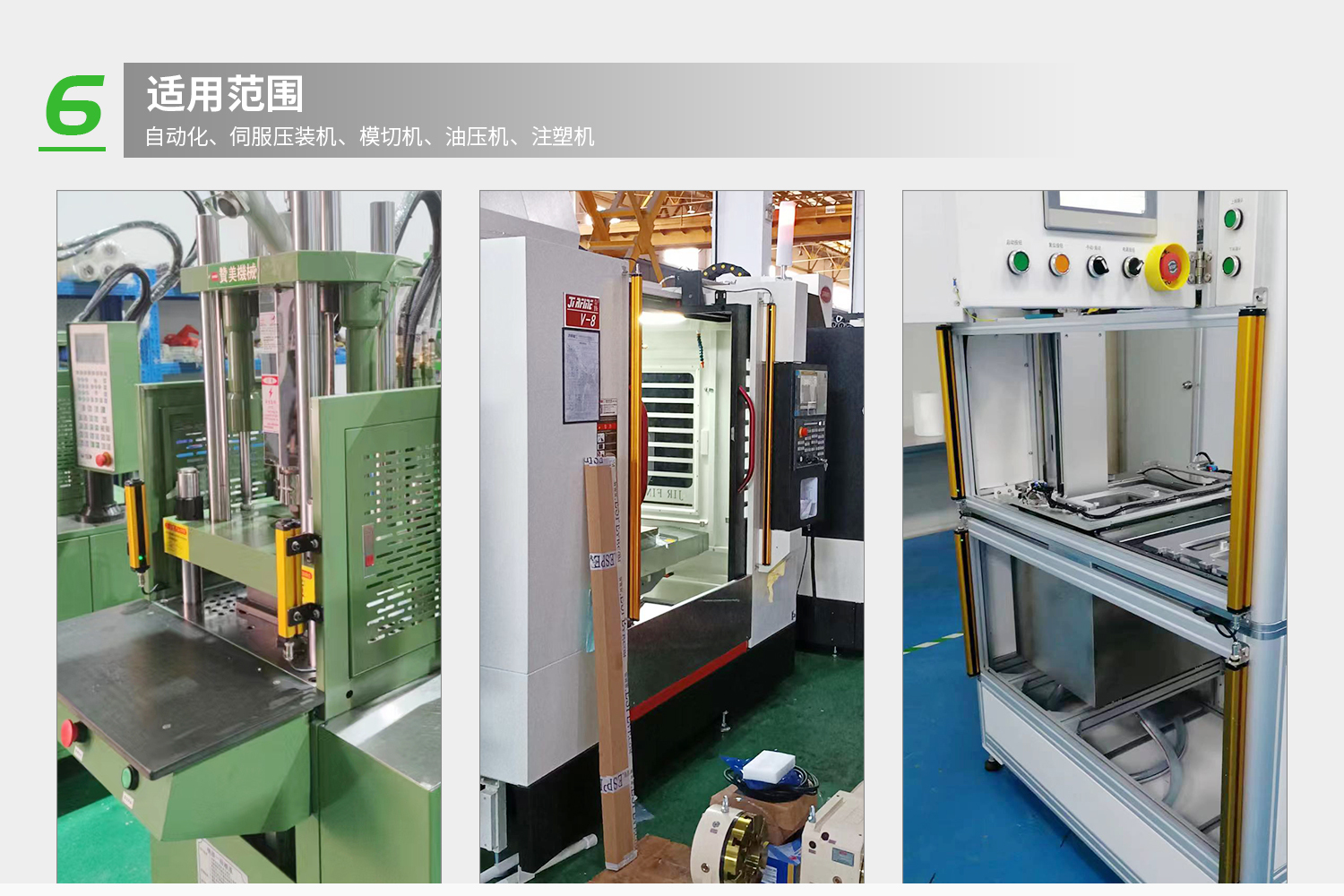

Application
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
Company Information
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
Shenzhen ONN Semi-conductor Lighting Co., LTD. established in 2010 and located in Shenzhen, as a National high-tech enterprise, we design, manufacture and supply L E D Machine Light, Signal Tower Light and L E D Freezer Light to global industrial customers. ONN Lighting has a complete range of professional equipment for production, testing and research and development, and we have 6 U shape production lines, 13 workbenches, 2 automated S M T Lines and 1 automation line. Each line equipped Light MES system, we can manage, monitor and trace the status of production on MES Screen and Smartphone. With very strong and flexible production capacity, we can produce average 3500pcs lamps and 160 orders per day. ONN Lighting also has very strict quality control system from incoming materials to finished products, and we have got the Certificate of Quality Management System I S O 9 0 0 1. And we also have strict test processes, such as airtight test, salt spray test, aging test and integrating sphere test. ONN Lighting has got certification of T U V, C E, RoHS, F C C, C C C, E R P and obtained 252 patents. Our team has rich experience for customized projects, and support O E M and O D M service If you are looking for a reliable supplier, welcome to contact us, thanks.
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
Certifications
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
Customers
ONN-GS-D DC10V 30V Safety Curtain Light IP65 Waterproof For CNC Machine
FAQ
Q: How to order our product ? A: 1). Please tell us the model and quantity and other request you need. 2). We make the PI for you. 3). After you confirm the PI, we arrange the order for you after receiving your payment. 4). After the goods finished, we send the goods out to you and tell you the tracking number. 5). We will track your goods until you receive the goods. Q: Do you have a picture book of all the products? A: Yes,we have. Q: What's your warranty ? A: Two years. Thank you & Now please send your kindly inquiry
