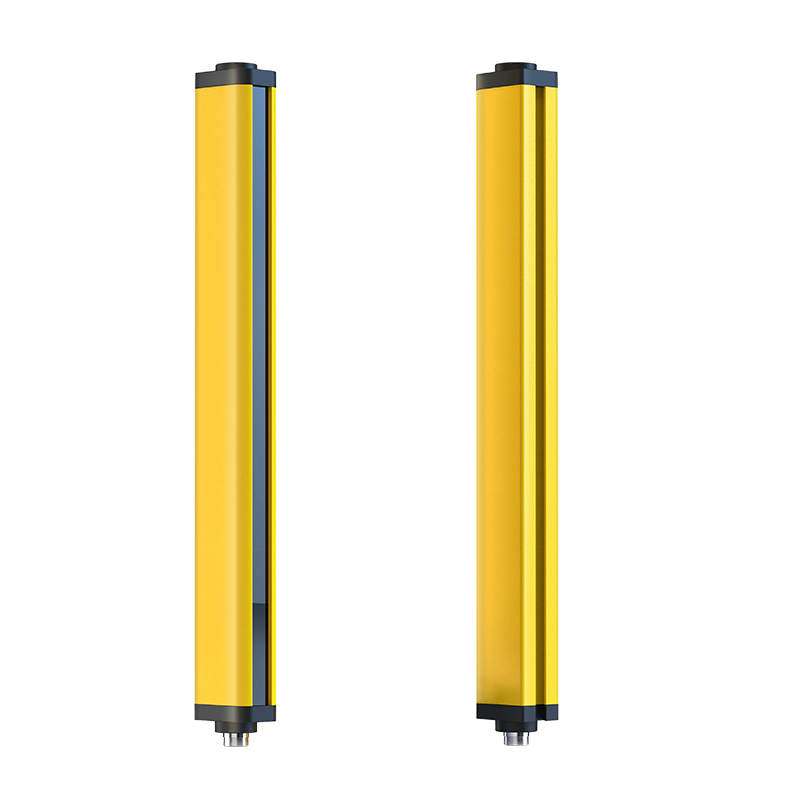

ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
Specifications
Features :
Relative expression
IP rating :
IP65
Usage :
Industrial Equipment
Color :
Yellow
Wave length :
940nm
Theory :
Infrared radiation
Section size :
35*50mm
MOQ :
2
Type :
Safety light curtains
Power source :
DC10~30V
Manufacturer Part Number :
GS-T
Output :
PNP / NPN
Anti-interference :
10000 Lux ( angle>5" )
Brand Name :
ONLION
Mounting Type :
Bracket fixed installation
Working temperature :
-10℃~55℃
Place of Origin :
Guangdong, China
Series :
Safety light curtains
Light curtain form :
Relative expression
Material :
Aluminum alloy
Power :
<5W
Description :
Infrared safety protection device, ONN-GS-T
Manufacturing Date Code :
2023
Description
ONN-GS-T Hot Selling IP65 electric safety curtain DC10V/DC30V Sensor Safety Light
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
Product Description
1. Aluminum alloy, tempered glass material.
2. Various non-standard requirements are quickly customized.
3. With security self-check mutual check function.
4. The maximum range of the beam can reach 30m.
5. Using line synchronization technology, anti-light interference ability is strong.
6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.
7. A variety of bracket installation options, convenient and fast.
Main application: automation equipment, injection molding machines, detection and measurement equipment, etc.
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
Specification
Model No.
ONN-GS-T
Power source
DC10~30V
Light source
940nm
Anti-interference
10000Lux
Light curtain form
Relative expression
Power
<5W
IP rating
IP65
Section size
35*50mm
Working temperature
-10~55℃
Color
Yellow
Material
Aluminum alloy
Ordering Code
ONN-GS-T 08 10 -N -L -6
1 2 3 4 5 6
1.Model No.
GS-T
2.Number of optical axes
04, 06, 08, 10, 12,……
3.Optical axis distance
10: 10mm 20:20mm 40:40mm
4.Connect type
N: NPN P:PNP
5.Mounting
L: L side bracket
6.Shooting distance
6: 0.1~6m 30: 0.1~30m
Product size drawing
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
Company Information
Shenzhen ONN Semi-conductor Lighting Co.,Ltd. was established in Auguest 2005, has Taken part in 115 exhibitions, got 252 patents and TUV CE,UL.FCC,CCC, is O9001: 2015 certifications. Our company is focusing on LED Signal Tower Light and Machine Work Light.
ONN Lighting also has very strict quality control system from incoming materials to finished products, and we have got the Certificate of Quality Management System I S O 9 0 0 1. And we also have strict test processes, such as airtight test, salt spray test, aging test and integrating sphere test.
VR
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
Trade Show
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
Certifications
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
Customers
ONN-GS-T IP65 Electric Safety Light Curtain Sensor DC10V - DC30V
FAQ
Q:How to order our product ?
A:(1).Please tell us the model and quantity and other request you need.
(2).We make the PI for you.
(3).After you confirm the PI, we arrange the order for you after receiving your payment.
(4).After the goods finished, we send the goods out to you and tell you the tracking number.
(5).We will track your goods until you receive the goods.

Q:What's your warranty ?
A:Two years

Q:Why select our products ?
A:(1).Produce and supply high-quality led industrial lights,including led machine work
lights,led signal tower lights,led freezer lights,led cleanroom lights and so on.
(2).After-sale service. we make sure every light from us is strictly tested before delivery.
If any quality failure, we have an 18-36 months warranty based on different types of
lights.
(3).OEM and ODM service. We focus on led industrial lights for 16 years. We are professional
and experienced.
