ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output

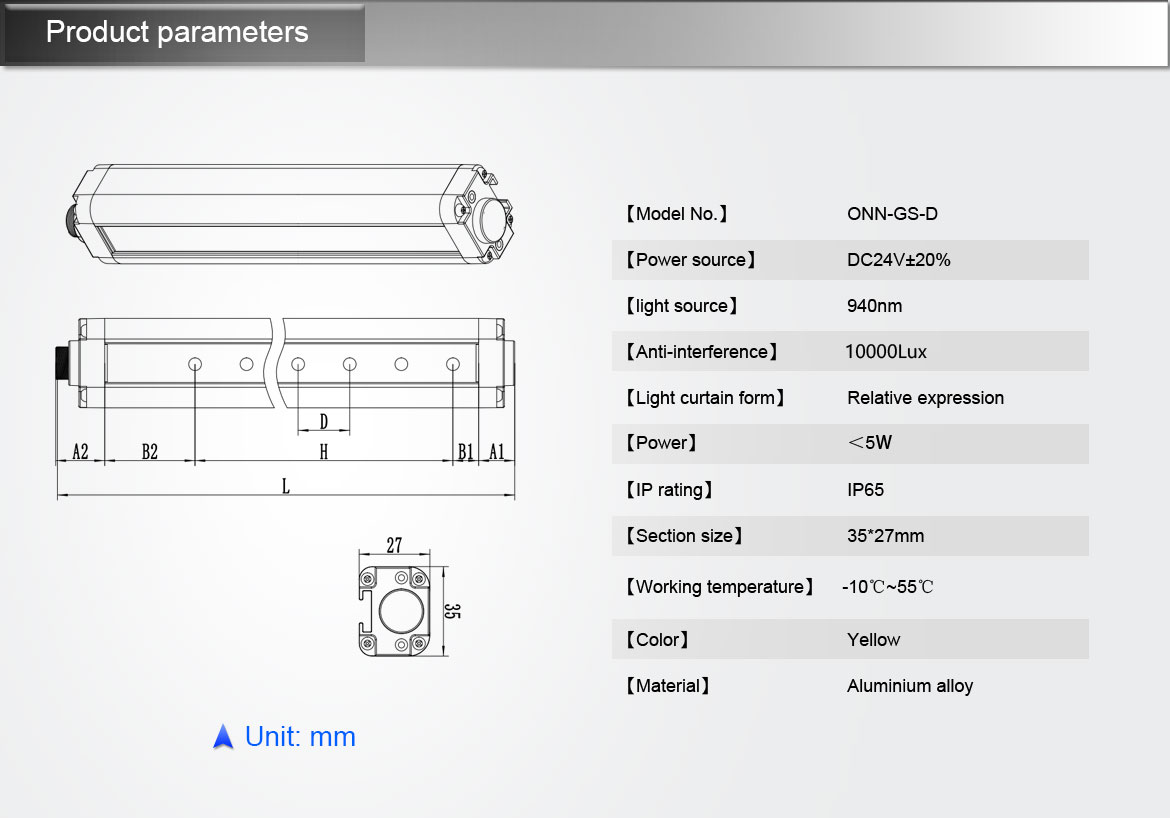

Specifications
Theory :
Infrared radiation
Enclosure material :
Aluminum alloy
Mounting Type :
Bracket fixed installation
Features :
Relative expression
Housing cross-section :
35*27mm
Manufacturer Part Number :
GS-D
Output :
PNP / NPN
Anti-optical interference :
10000 Lux ( angle>5" )
Usage :
Industrial Equipment
Resolution :
15mm,25mm,45mm
Capacity :
<5W
Place of Origin :
Guangdong, China
Type :
Safety light curtains
Power supply :
DC10V-30V
Wave length :
940nm
Description :
Infrared safety protection device, ONN-GS-D
MOQ :
2
Enclosure rating :
IP65
Brand Name :
ONLION
Series :
Safety light curtains
Storage temperature :
-30°C-70°C (with freezing)
Product name :
Safety Light Curtain
Description
ONN-GS-D IP65 Waterproof Curtain for Industrial Safety Manufacturers Direct Selling
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
Products Description

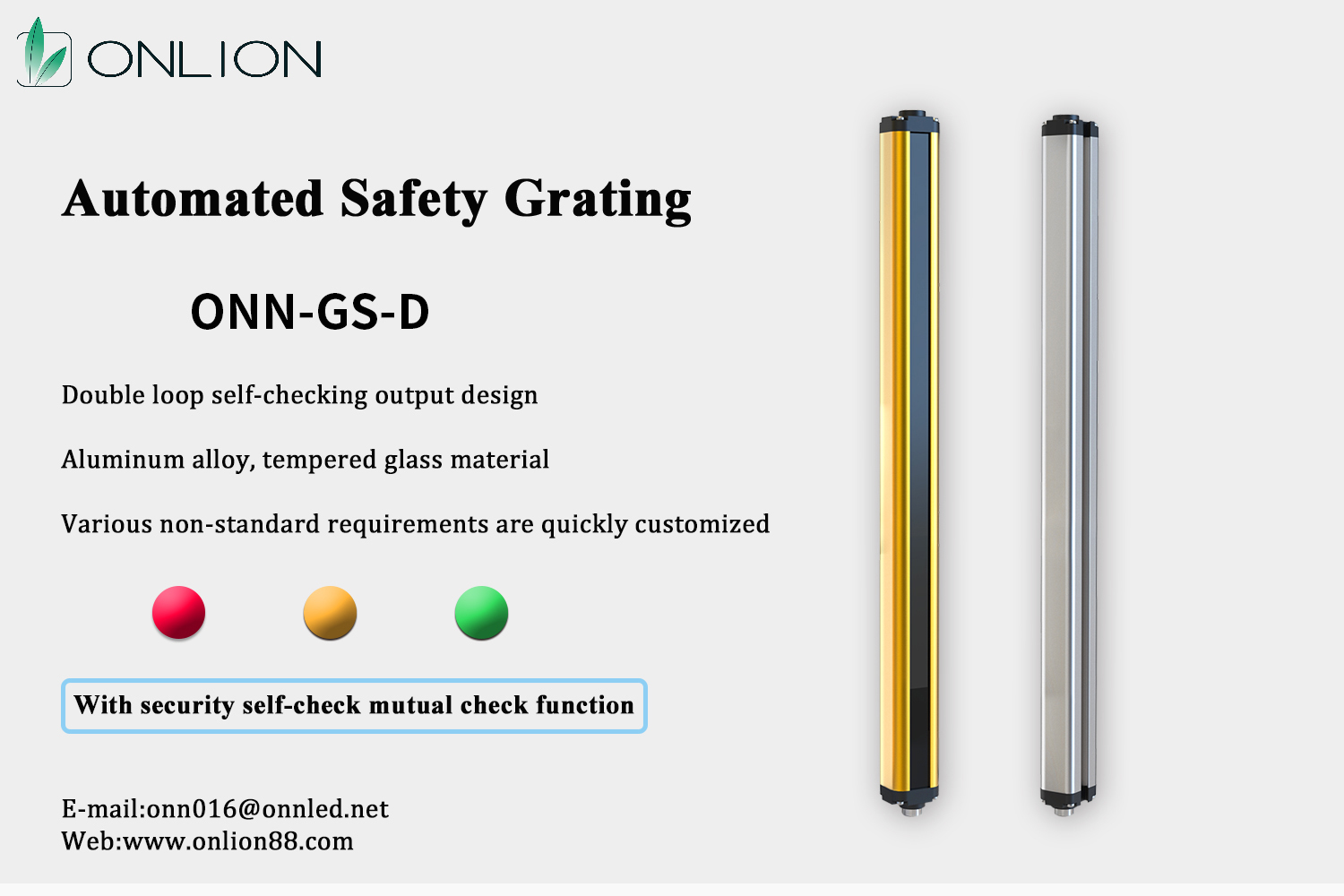

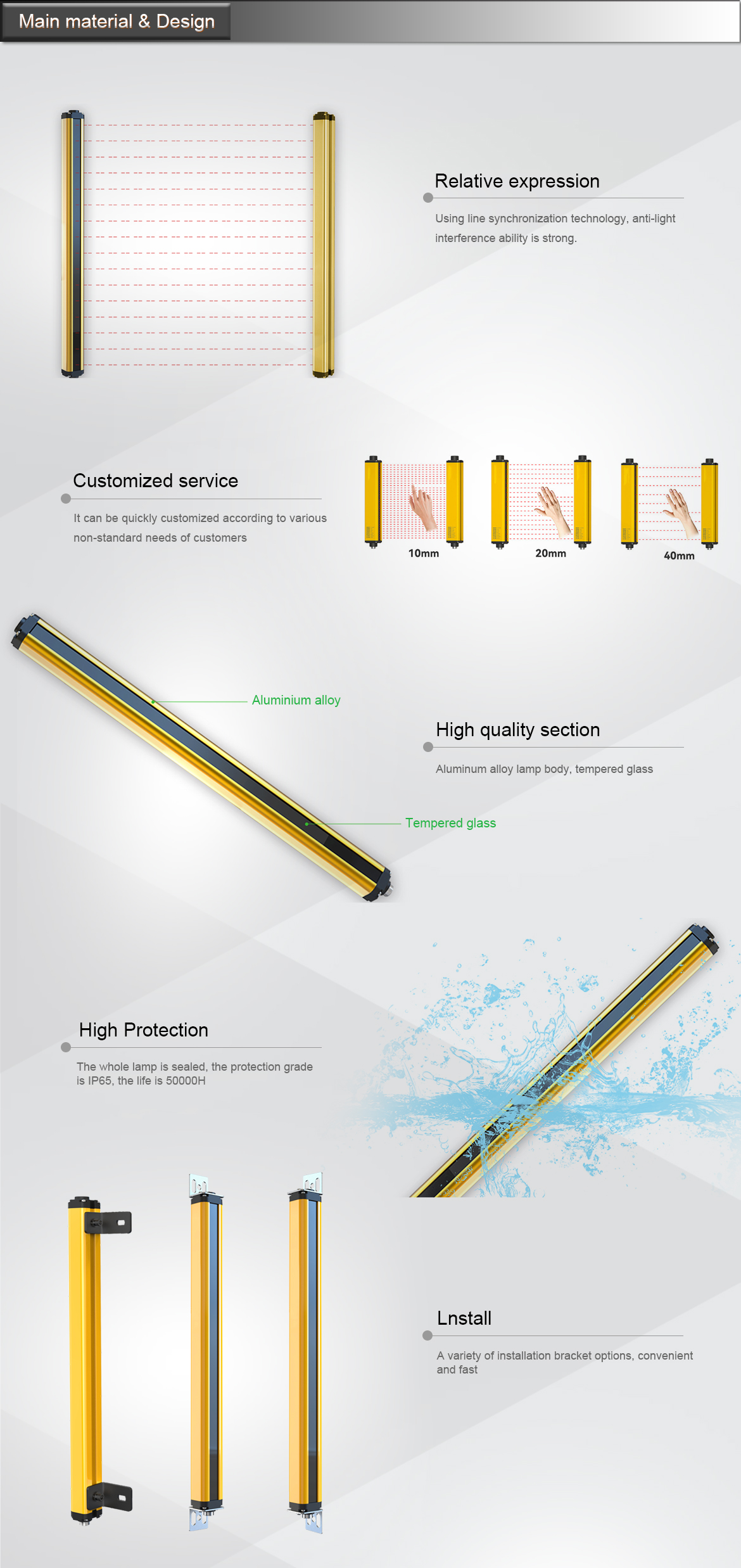

1. Aluminum alloy, tempered glass material.2. Various non-standard requirements are quickly customized.
3. With security self-check mutual check function.
4. The maximum range of the beam can reach 30m.
5. Using line synchronization technology, anti-light interference ability is strong.
6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.

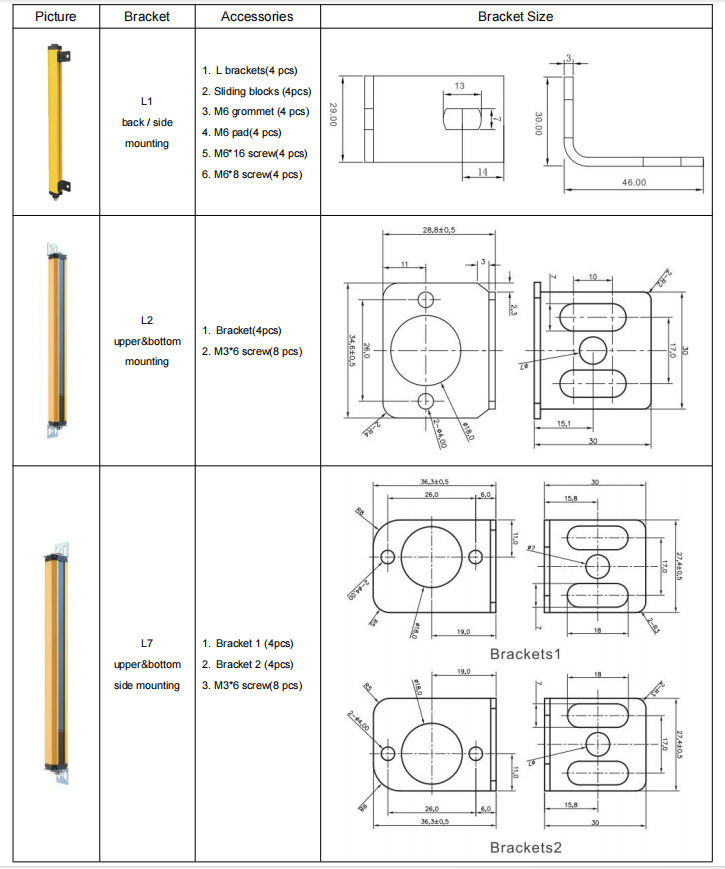

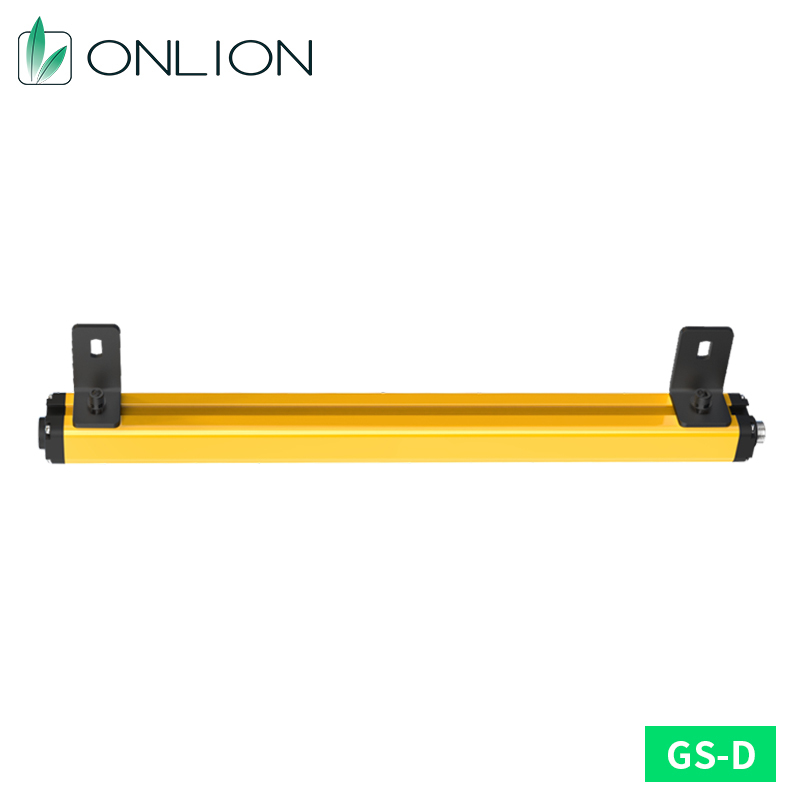

7. A variety of bracket installation options, convenient and fast.
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
Spectification
Beam space
10mm,20mm,40mm

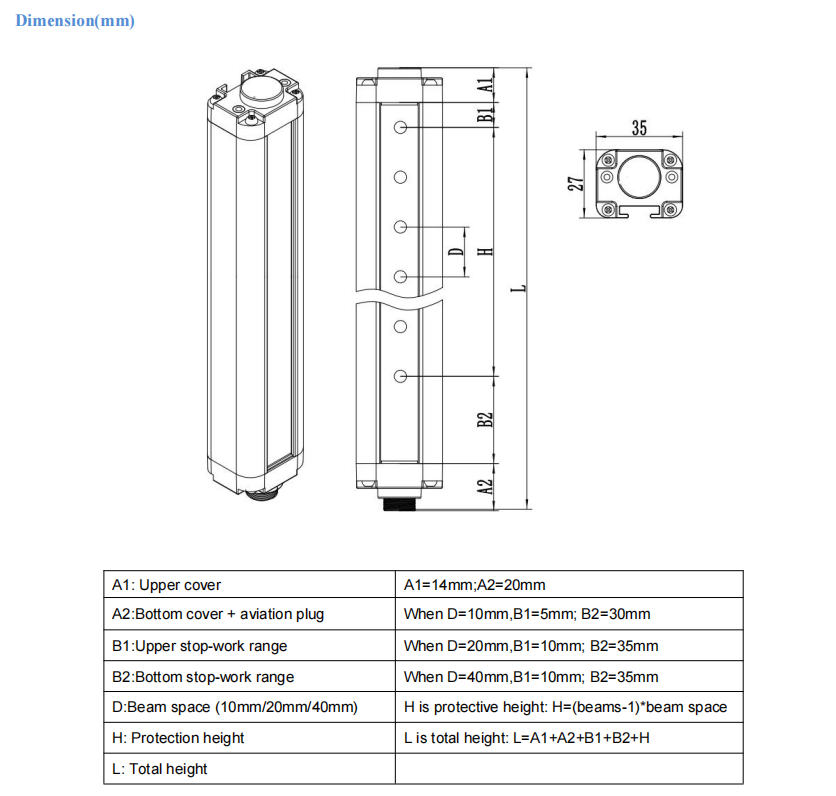

Protective height
Protective height=(N-1)*beam gap, N is beam quantity.
Sensing distance
0.1~0.5m,0.1~2m,0.1~5m
Sensing method
Through-beam type
Synchronization
Wire synchronization
Ambient operating temperature
-10°C~55°C (with freezing)
Resolution
15mm,25mm,45mm
Response time
Response time=(N*0.1ms)+0.4ms ( N is beams qty )
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output

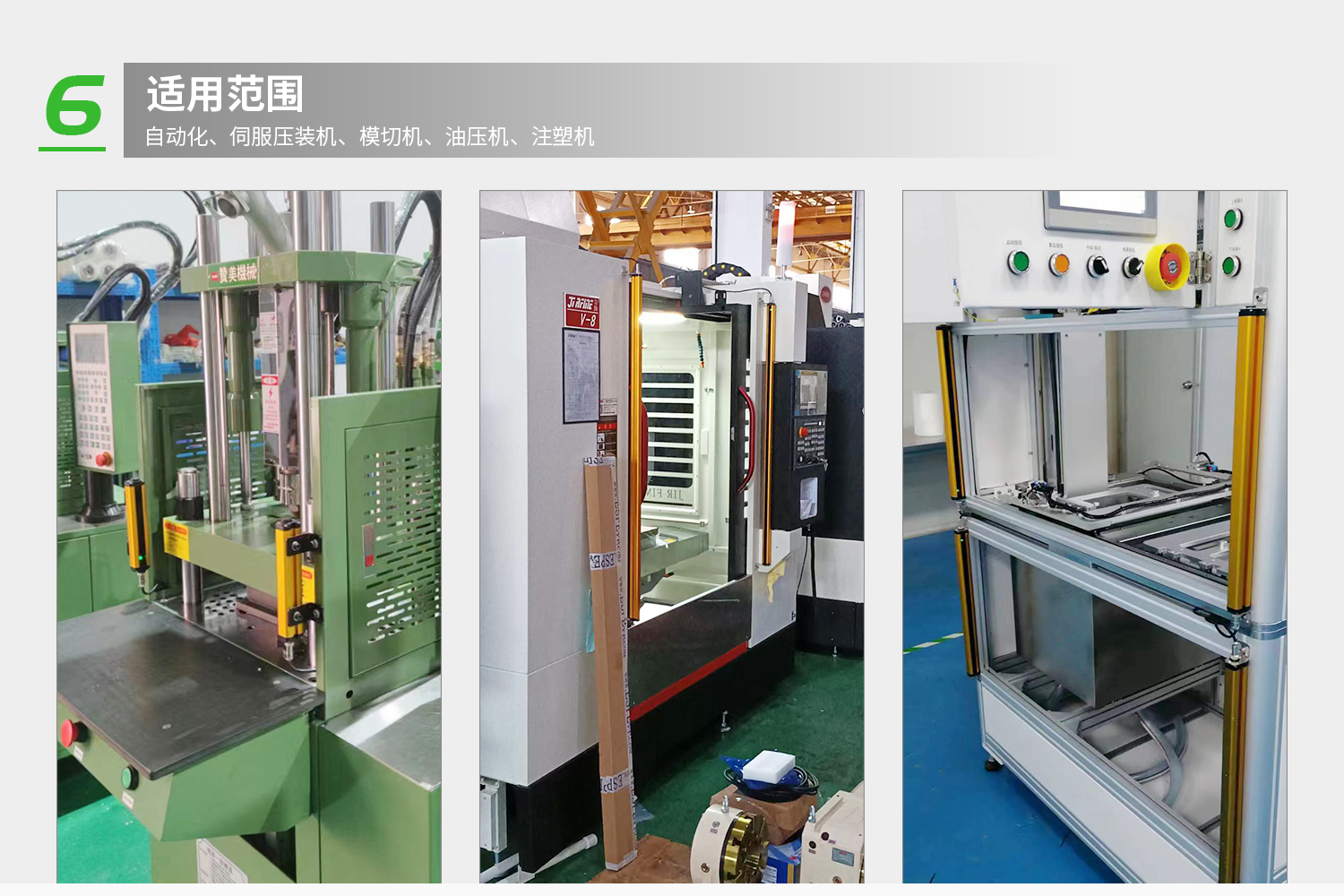

Application
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
Company Information
Shenzhen ONN Semi-conductor Lighting Co., LTD. established in 2010 and located in Shenzhen, as a National high-tech enterprise, we design, manufacture and supply L E D Machine Light, Signal Tower Light and L E D Freezer Light to global industrial customers.
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
Certifications
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
Customers
ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
FAQ
Q: How to order our product ? A: 1). Please tell us the model and quantity and other request you need. 2). We make the PI for you. 3). After you confirm the PI, we arrange the order for you after receiving your payment. 4). After the goods finished, we send the goods out to you and tell you the tracking number. 5). We will track your goods until you receive the goods. Q: Do you have a picture book of all the products? A: Yes,we have. Q: What's your warranty ? A: Two years. Thank you & Now please send your kindly inquiry
