DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
Specifications
Description :
Infrared safety protection device, ONN-GS-T
MOQ :
2
Mounting Type :
Bracket fixed installation
Place of Origin :
Guangdong, China
Output :
PNP / NPN
Section size :
35*50mm
Color :
Yellow
Usage :
Industrial Equipment
Light curtain form :
Relative expression
Power :
<5W
Working temperature :
-10℃~55℃
Type :
Safety light curtains
Power source :
DC10~30V
Series :
Safety light curtains
Light source :
940nm
Features :
Relative expression
Manufacturing Date Code :
2023
Material :
Aluminum alloy
Brand Name :
ONLION
IP rating :
IP65
Manufacturer Part Number :
GS-T
Theory :
Infrared radiation
Anti-interference :
10000Lux
Description

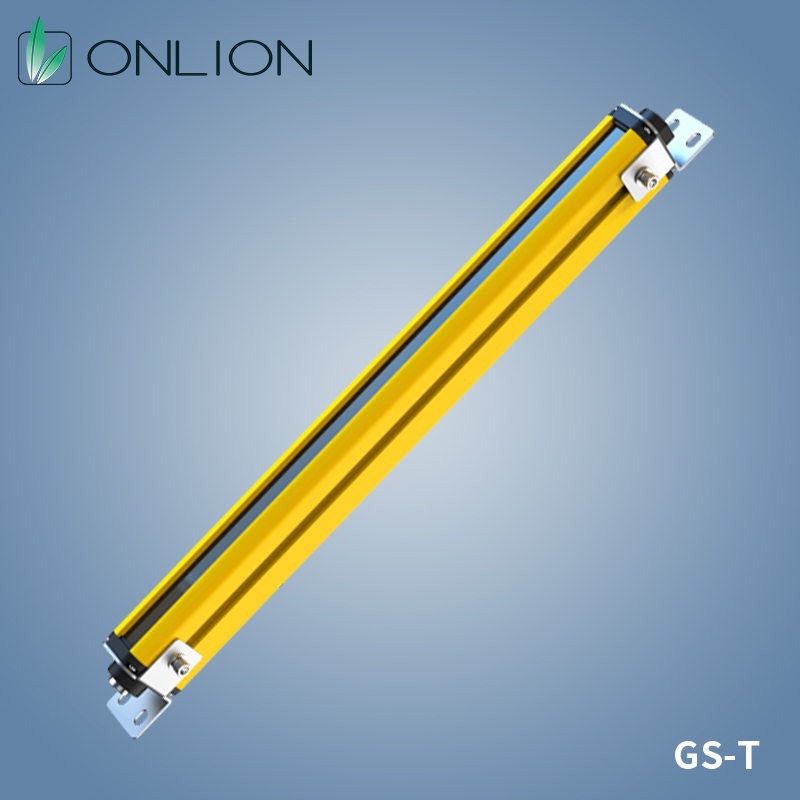

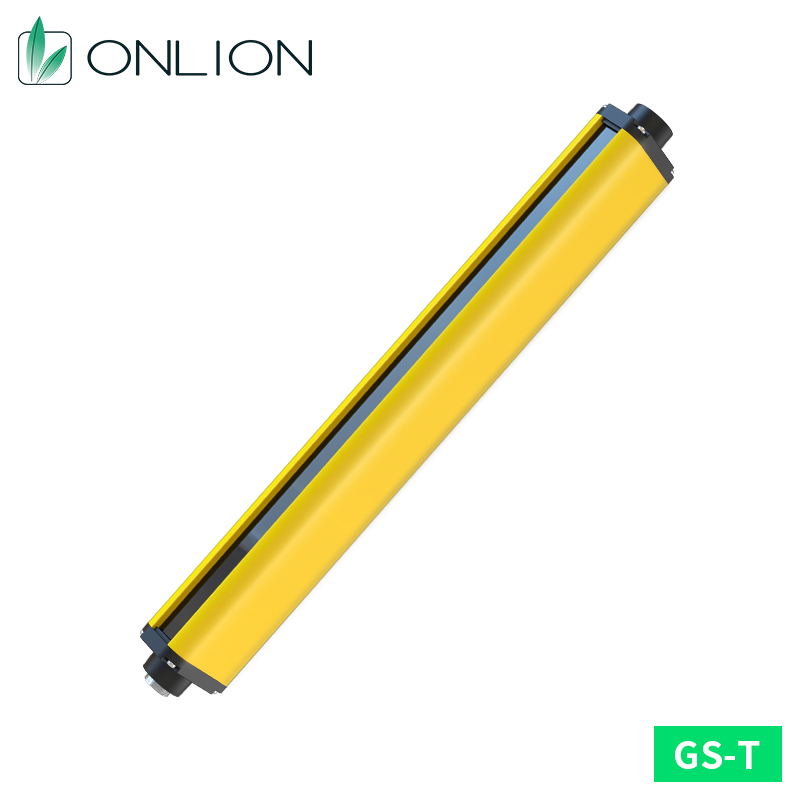

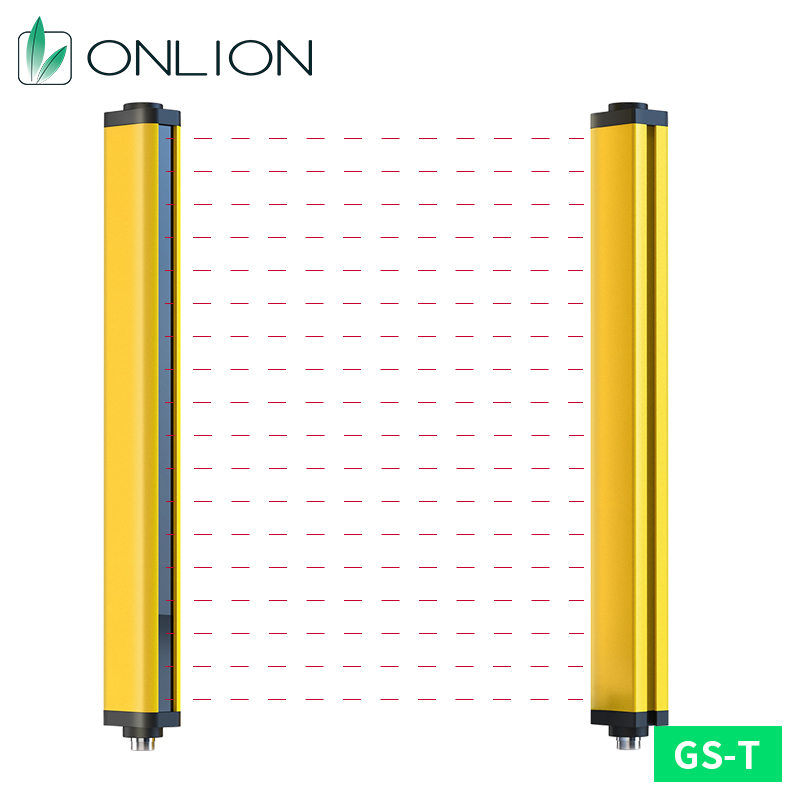

ONN-GS-T IP65 10~30V DC PNP NPN Barrier Sensor Safety Light Curtain Infrared Beam Light Curtain Sensor
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
Product Description
1. Aluminum alloy, tempered glass material.
2. Various non-standard requirements are quickly customized.
3. With security self-check mutual check function.
4. The maximum range of the beam can reach 30m.
5. Using line synchronization technology, anti-light interference ability is strong.
6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.
7. A variety of bracket installation options, convenient and fast.

Main application: automation equipment, injection molding machines, detection and measurement equipment, etc.
DC10 - 30V Barrier Sensor Safety Light Curtains IP65 Infrared Beam NPN PNP Optical Sensors
Specification
Model No.
ONN-GS-T
Power source
DC10~30V
Light source
940nm
Anti-interference
10000Lux
Light curtain form
Relative expression
Power
<5W
IP rating
IP65
Section size
35*50mm
Working temperature
-10~55℃
Color
Yellow
Material
Aluminum alloy
Ordering Code
ONN-GS-T 08 10 -N -L -6
1 2 3 4 5 6
1.Model No.
GS-T
2.Number of optical axes
04, 06, 08, 10, 12,……
3.Optical axis distance
10: 10mm 20:20mm 40:40mm
4.Connect type
N: NPN P:PNP
5.Mounting
L: L side bracket
6.Shooting distance
6: 0.1~6m 30: 0.1~30m
Product size drawing
