PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
Specifications
active area :
NA
Wavelength :
NA
Power source :
DC10~30V
Power :
<5W
Usage :
Industrial Equipment
Light curtain form :
Relative expression
Description :
Infrared safety protection device, ONN-GS-T
Viewing Angle :
NA
Dark Count Rate :
NA
Color :
Yellow
MOQ :
2
Series :
Safety light curtains
Brand Name :
ONLION
Working temperature :
-10℃~55℃
Voltage - Supply :
NA
Features :
Relative expression
Place of Origin :
Guangdong, China
Type :
Safety light curtains
Material :
Aluminum alloy
IP rating :
IP65
Theory :
Infrared radiation
Response Time :
NA
Light source :
940nm
Mounting Type :
Bracket fixed installation
Anti-interference :
10000Lux
Output :
PNP / NPN
Section size :
35*50mm
Manufacturing Date Code :
2023
Manufacturer Part Number :
GS-T
Description

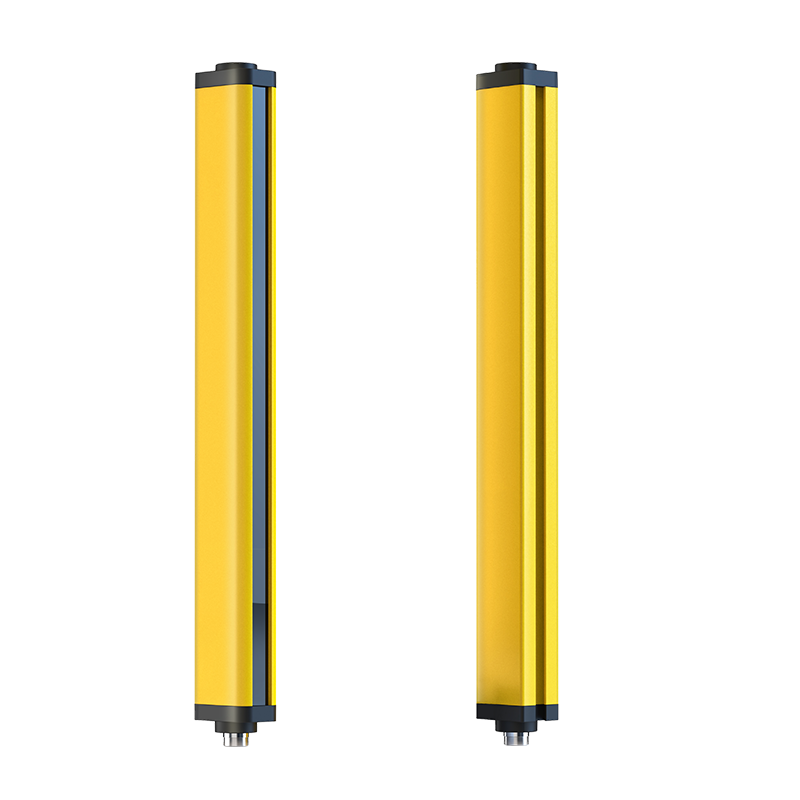

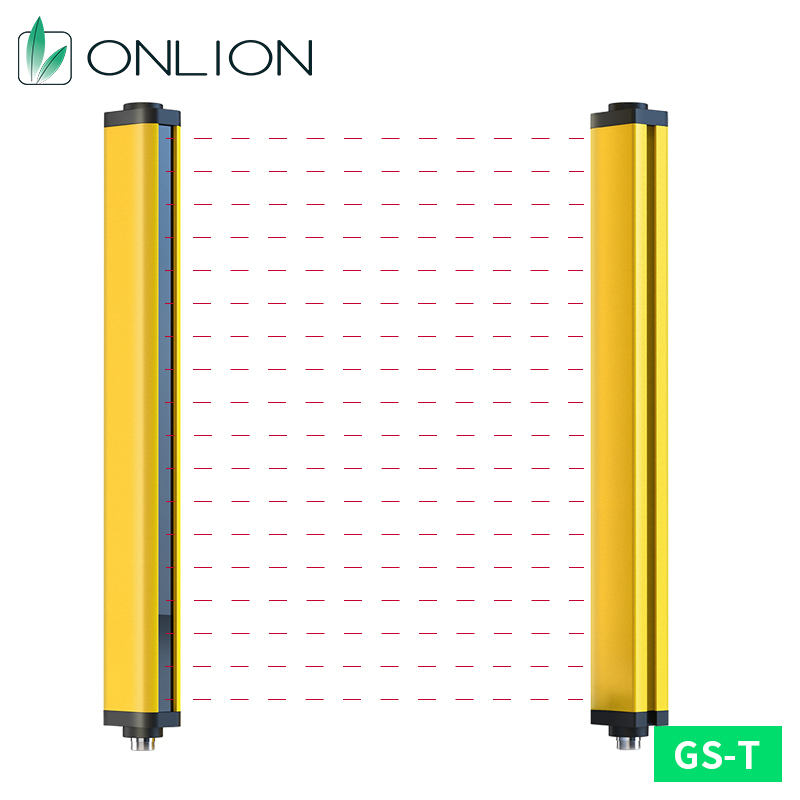

ONN-GS-T Safety Light Curtain10mm/20mm/40mm Beam Spacing PNP/NPN Output IP65 with Anti-Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
Product Description
1. Aluminum alloy, tempered glass material.
2. Various non-standard requirements are quickly customized.
3. With security self-check mutual check function.
4. The maximum range of the beam can reach 30m.
5. Using line synchronization technology, anti-light interference ability is strong.

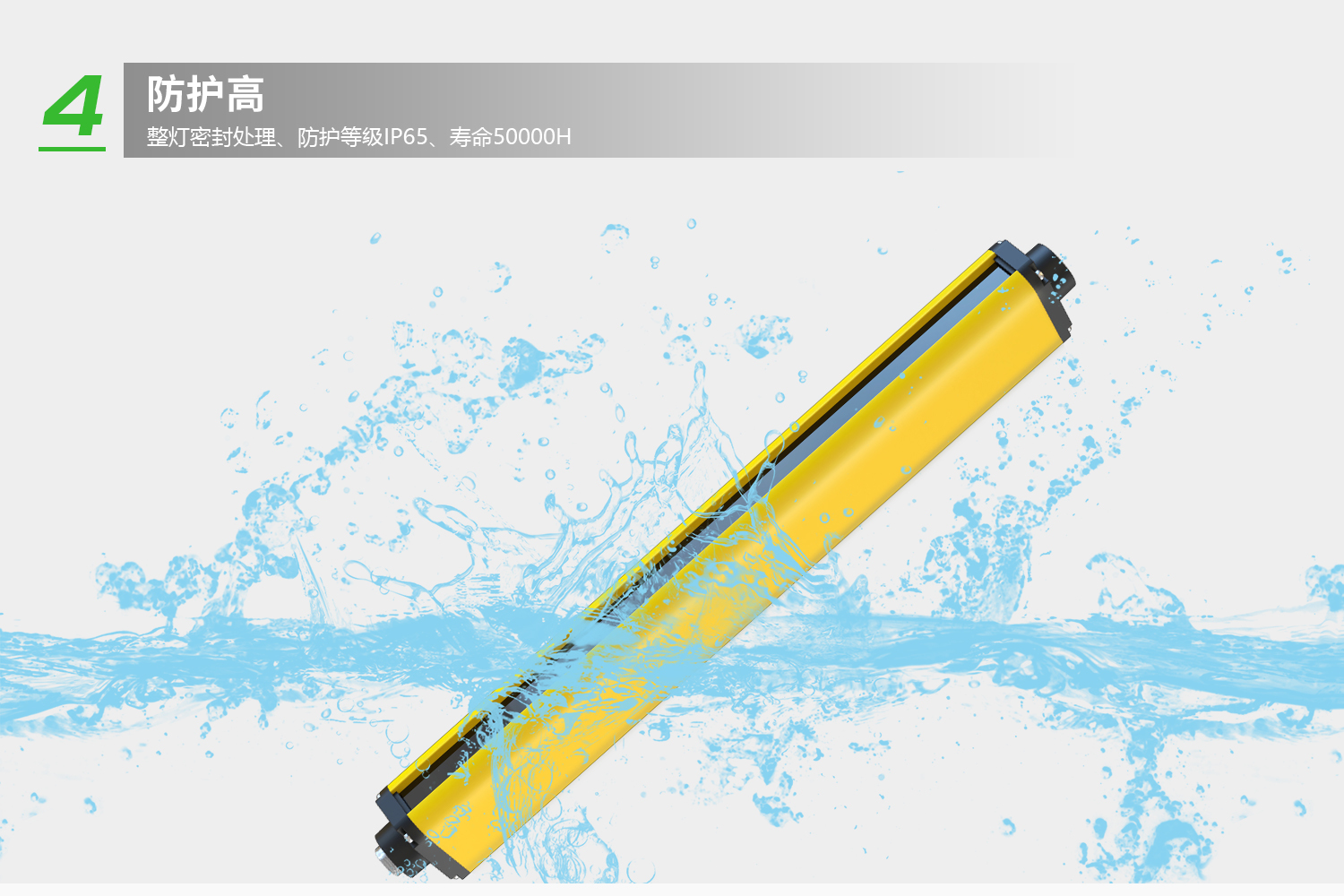

6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.
7. A variety of bracket installation options, convenient and fast.

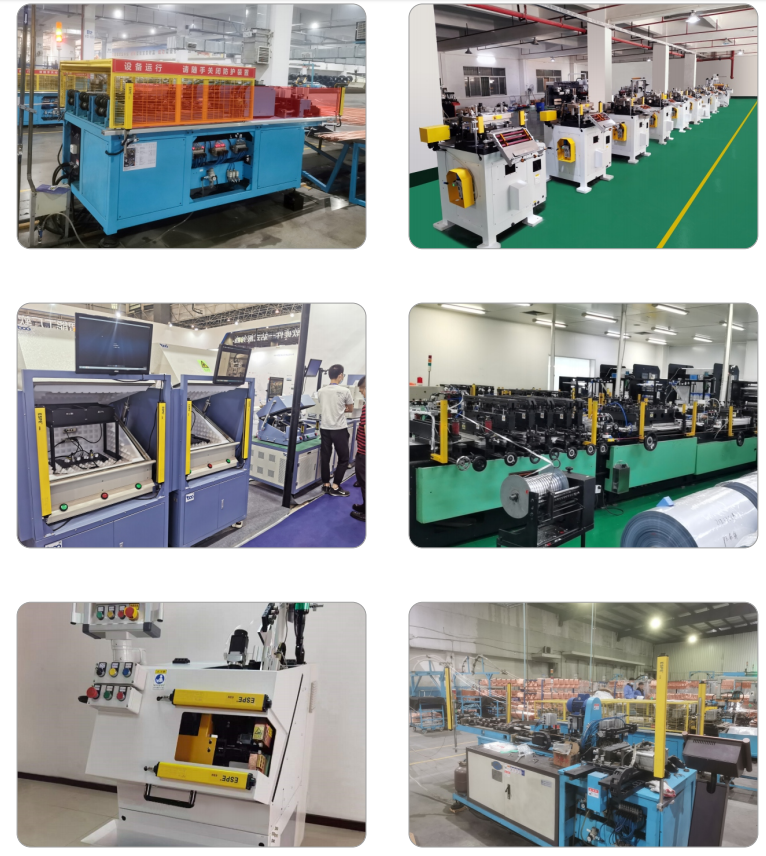

Main application: automation equipment, injection molding machines, detection and measurement equipment, etc.
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
Specification
Model No.
ONN-GS-T
Power source
DC10~30V
Light source
940nm
Anti-interference
10000Lux
Light curtain form
Relative expression
Power
<5W
IP rating
IP65
Section size
35*50mm
Working temperature
-10~55℃
Color
Yellow
Material
Aluminum alloy
Ordering Code
ONN-GS-T 08 10 -N -L -6
1 2 3 4 5 6
1.Model No.
GS-T
2.Number of optical axes
04, 06, 08, 10, 12,……
3.Optical axis distance
10: 10mm 20:20mm 40:40mm
4.Connect type
N: NPN P:PNP
5.Mounting
L: L side bracket
6.Shooting distance
6: 0.1~6m 30: 0.1~30m
Product size drawing
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
Company Information
Shenzhen ONN Semi-conductor Lighting Co.,Ltd. was established in Auguest 2005, has Taken part in 115 exhibitions, got 252 patents and TUVCE,UL.FCC,CCC,isO9001:2015 certifications. Our company is focusing on LED Signal Tower Light and Machine Work Light.
VR
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
Trade Show
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
Certifications
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
Customers
PNP NPN Output Safety Light Curtains 10mm 20mm 40mm Beam Spacing IP65 With Anti Interference
FAQ
Q：How to order our product ?
A：(1).Please tell us the model and quantity and other request you need.
(2).We make the PI for you.
(3).After you confirm the PI, we arrange the order for you after receiving your payment.
(4).After the goods finished, we send the goods out to you and tell you the tracking number.
(5).We will track your goods until you receive the goods.

Q：What's your warranty ?
A：Two years

Q：Why select our products ?
A：(1).Produce and supply high-quality led industrial lights,including led machine work
lights,led signal tower lights,led freezer lights,led cleanroom lights and so on.
(2).After-sale service. we make sure every light from us is strictly tested before delivery.
If any quality failure, we have an 18-36 months warranty based on different types of
lights.
(3).OEM and ODM service. We focus on led industrial lights for 16 years. We are professional
and experienced.

Q： If I want to release order, what's the process?
A：Thanks. You can send inquiry to us by , or send us by email, we will reply within 24hours.
Thank you & Now pls send your kindly inquiry!
