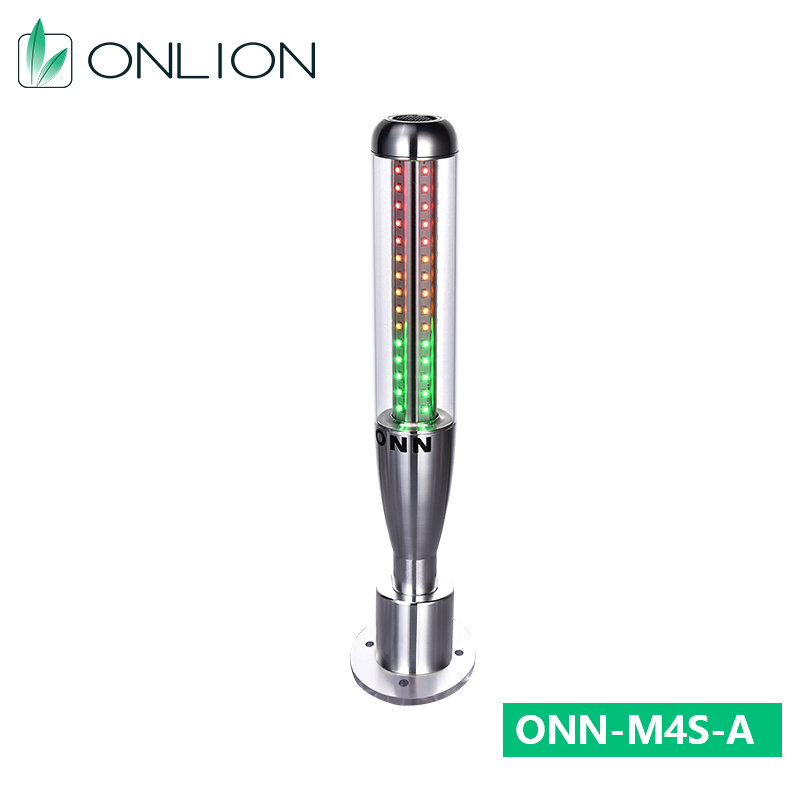

ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
Specifications
Lifespan (Hours) :
50000
Product Weight（kg） :
1
Light Source :
LED
Brand Name :
ONN
Application :
Especially for cnc machine
Lamp Luminous Flux(lm) :
400
Type :
Equipment Indicator Lights
Warranty(Year) :
2-Year
Base Type :
2G11
Optional Specification :
Steady/flash/buzzer
IP Rating :
IP40
Color :
Red Yellow Green
Beam Angle(°) :
360
Item Type :
Led Tower Beacon Light
Lamp Body Material :
PC / Aluminium
Input Voltage(V) :
DC24V
Certification :
CE cTUVus
Color Temperature(CCT) :
Other
Lighting solutions service :
Dialux Evo Layout
Emitting Color :
RYG
Lamp Luminous Efficiency(lm/w) :
100
Working Time (hours) :
50000
CRI (Ra) :
80
Place of Origin :
Guangdong, China
Color Rendering Index(Ra) :
80
Support Dimmer :
No
Product name :
LED Signal Tower Light
Mounting :
Foldable base
View angle :
360 degree
MOQ :
2
Description
Click the below VR showroom to visit our factory.
VR
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
ONN-M4S-A Equipment Indicator Light Factory Supply 24V Milling Machine Warning LED Light with Alarm Buzzer
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
Product Description

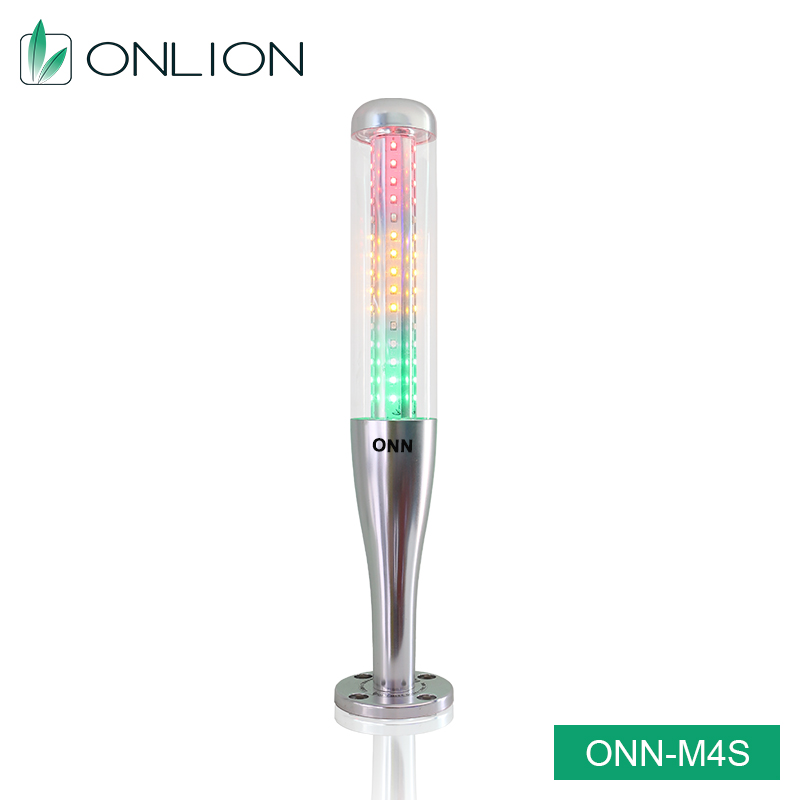

ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer

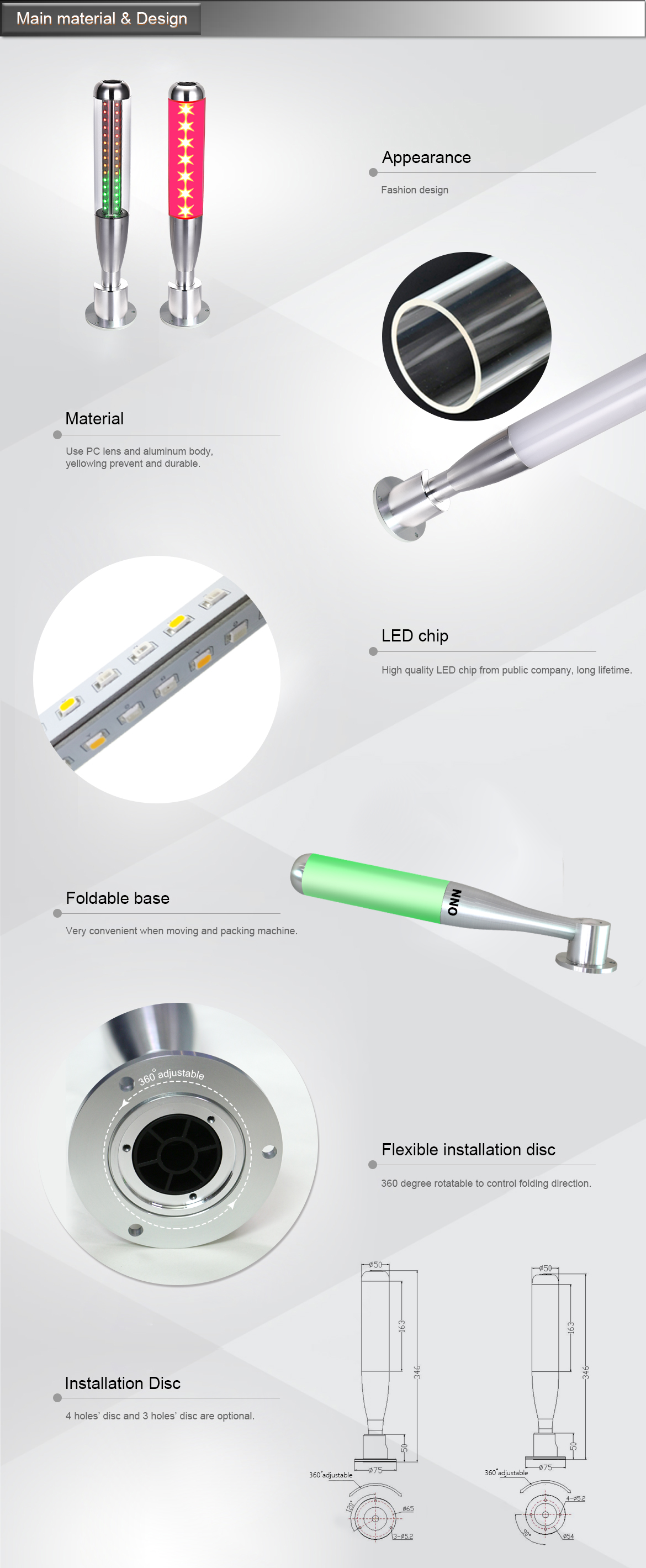

Features
1.Baseball pole shape design, elegant and beautiful.
2.Use PC lens and aluminum body, yellowing prevent and durable.
3.High brightness LED chip with transparent lens, better visual effect.

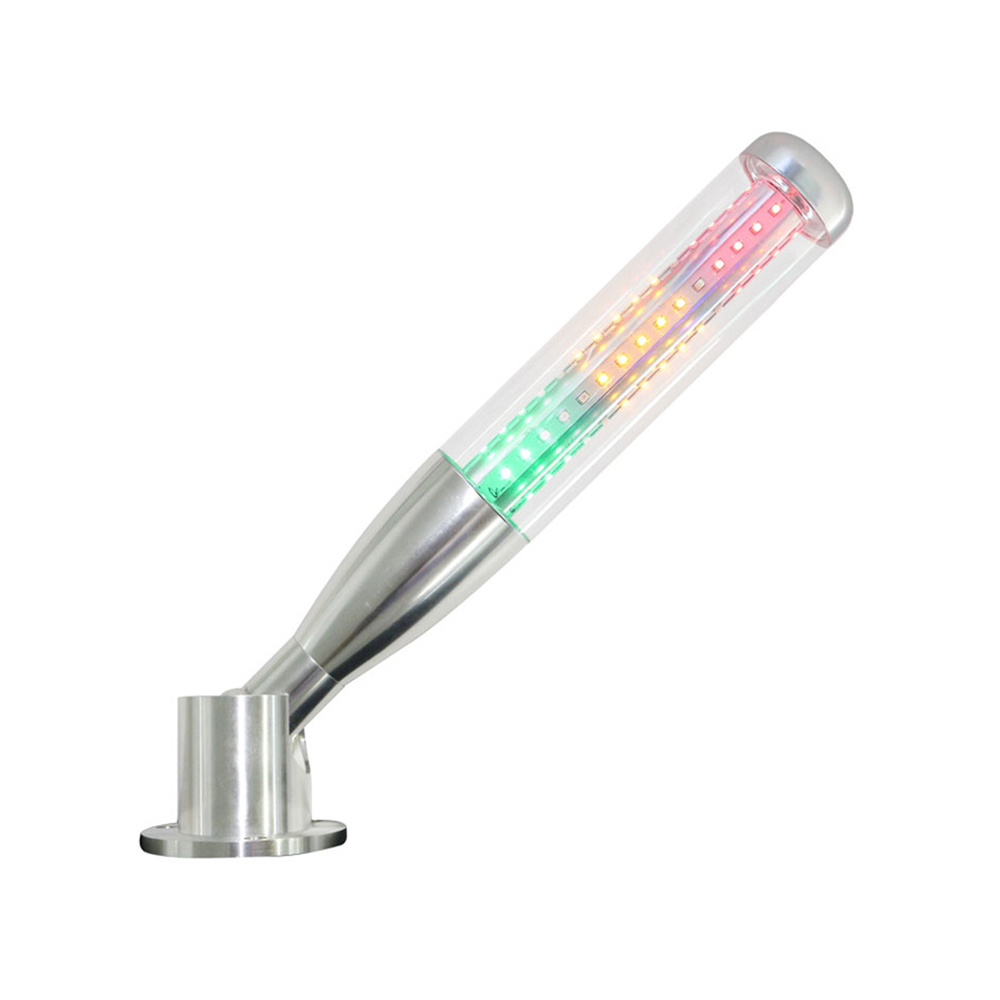

4.Foldable base, very convenient when moving and packing machine.
5.Flexible installation disc (360 degree rotatable) to control folding direction.
6.4 holes’ disc and 3 holes’ disc are optional.
Specifications
Diameter
50mm
Color
Red, Yellow, Green
Input voltage
DC24V
Material
PC cover+Aluminum body
Lumen efficiency
400lm (100lm/w)
Lifetime
50,000 hours
CRI
>80
Working temperature/ humidity
-20~45℃ / 10%-90%
IP rating
IP53
Storage temperature/ humidity
-20~60℃ / 10%-90%
Beam angle
360 degree
Installation
Fixed by screw
Ordering Code
ONN M4S-A - A 3 B B B
1 2 3 4 5 6
1. Model
M4S-A
2. Layers
3 layers
3. Installation
Foldable type
4. Voltage
DC24V
5. Function
B. Continous light F. With buzzer no flash S. Red flash no buzzer C. Red flash with buzzer D. All flash E. All flash with buzzer
6. Wiring Mode
C. Contact Type Z. Input Directly common line is positive ( NPN ) B . Input directly common line is negative ( PNP )
7. Optional Color
R (red) Y (yellow) G (green)
8. Diameter
50mm

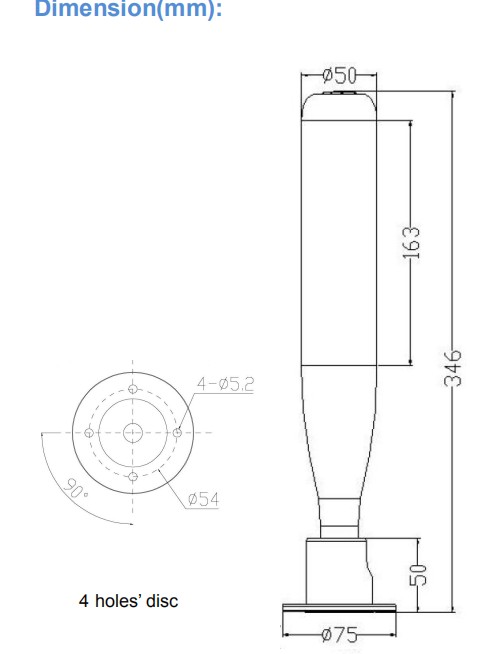

Product Size Drawing
ONN-M4S-A Equipment Indicator Light 24V Milling Machine Warning LED Light With Alarm Buzzer
Application
CNC machine work: engraving machine, EDM machine etc.
Assembly and repair work.
Point lighting.
Laboratories.
