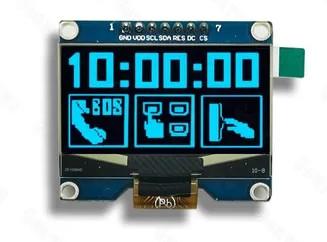

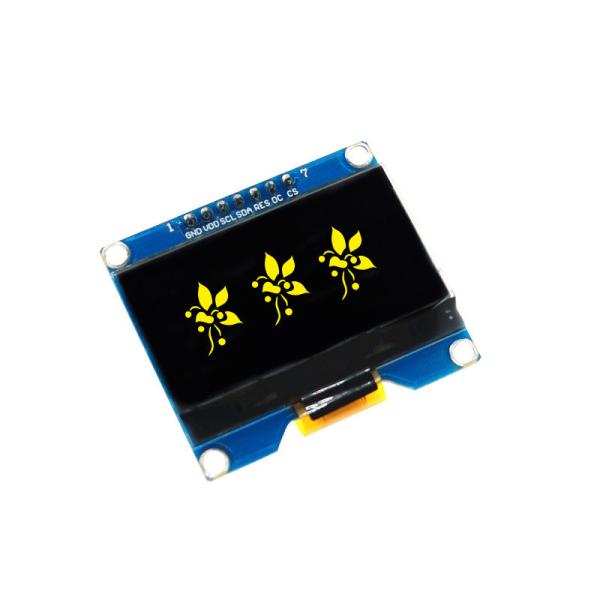

3.3V 1.54 Inch OLED Screen 128x64 White Blue Yellow With SPD0301 Driver IC
3.3V 1.54 Inch OLED Screen 128x64 White Blue Yellow With SPD0301 Driver IC
3.3V 1.54 Inch OLED Screen 128x64 White Blue Yellow With SPD0301 Driver IC
3.3V 1.54 Inch OLED Screen 128x64 White Blue Yellow With SPD0301 Driver IC
Specifications
Place of Origin :
China
Brand Name :
BBI
Model Number :
BBI-001
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Certification :
ISO9001 RoHS
Driver Ic :
SPD0301
Sizes Range :
1.54 inch
Display Color :
Blue or White or Yellow
Aspect Ratio :
16:9
Backlight :
4 chip white LED, 4PVF =3.2+1.0V;IF=80mA
Operating Temperature :
-40~+70℃
Name :
OLED Display
Description

3.3V 1.54 Inch OLED Display 128x64 White Blue Yellow With SPD0301 Driver IC

Product Description

Key Features:


  1. Display Resolution: Depending on the module, typically 128x64 pixels or 128x128 pixels.

  2. Interface: Common interfaces include I2C or SPI, making them easy to connect with microcontrollers like Arduino, Raspberry Pi, or ESP32.

  3. Power Consumption: OLEDs are known for low power consumption, especially when displaying darker content since they don't require a backlight.

  4. Color Display: Many 1.54-inch OLED modules offer monochrome versions (e.g., white, blue, or yellow) are available.

  5. Shape: The display can be square or rectangular, which depends on your designs.


Detailed Parameters:


1 Brand Name Bibuke
2 Model Description 1.54 Inch OLED Display
3 Display Mode OLED(Organic Light Emitting Diode)
4 Display Color Blue or White or Yellow
5 Panel Size 1.54 Inch
6 Dot Matrix 128*64 Pixels
7 Module Size
42.04(W) x 37.0(H) mm

8

View Area

37.06(W) x19.52(H) mm
9 Active Area
35.06(W) x17.52(H) mm
10 Drive IC SPD0301
11 Interface 4-wire SPI
12 Operating Temperature -40~+70℃
13 Voltage 3.3V
14 PIN Pitch 2.54 mm

3.3V 1.54 Inch OLED Screen 128x64 White Blue Yellow With SPD0301 Driver IC

3.3V 1.54 Inch OLED Screen 128x64 White Blue Yellow With SPD0301 Driver IC






Products Application field:

Audio product Medical Equipment

Industrial product(watermeter, electronicmeter,Equipment )

Automobiles Sports Equipment Watches

Household appliance(air condition/wash machine/electronic cooler/ refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)
