1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
Specifications
Storage Temperature :
-40°C To +85°C
Driving Method: :
1/64 Duty Cycle
Viewing Direction :
All Viewing Angles
Dimensions :
42.04(L) X 37.0(W) X 3.1(T) mm
Connectivity :
pin
Display Mode :
Passive Matrix
Resolution :
128x64 Dots
Active Area :
35.052(L) X 17.516(W) Mm
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
1.54 Inch OLED Display Module 128x64 SPI Interface White / Blue Font

The Organic Light-Emitting Diode (OLED) represents next-generation display technology, delivering brighter and clearer images with superior response speeds. This monochrome OLED display features 128 x 64 individual dots and offers multiple interface options including default 4-line SPI, with 6800, 8080, and I2C interfaces available.

Built using Chip-on-Board (COB) technology, this OLED module includes an integrated PCB board for easy installation into customer applications. The crisp white monochrome 1.54-inch 128x64 graphic OLED display module boasts a 50,000-hour lifetime and utilizes the popular SPD0301 controller (compatible with SSD1309), making it compatible with a wide range of microcontrollers including Raspberry Pi and ESP32.

Technical Specifications
Product 1.54" Inch Graphic OLED Screen
Resolution 128x64 Dots
Display Mode Passive Matrix
Interface 4 Wires SPI Interface
Optics All Viewing Angles
Outline Dimensions 42.04(L) X 37.0(W) X 3.1(T) mm
Active Area 35.052(L) X 17.516(W) mm
Pixel Pitch 0.254 X 0.254 mm
Driving Method 1/64 Duty Cycle
Operating Temperature -40°C To +70°C (Customizable)
Storage Temperature -40°C To +85°C
Supply Voltage 2.8V

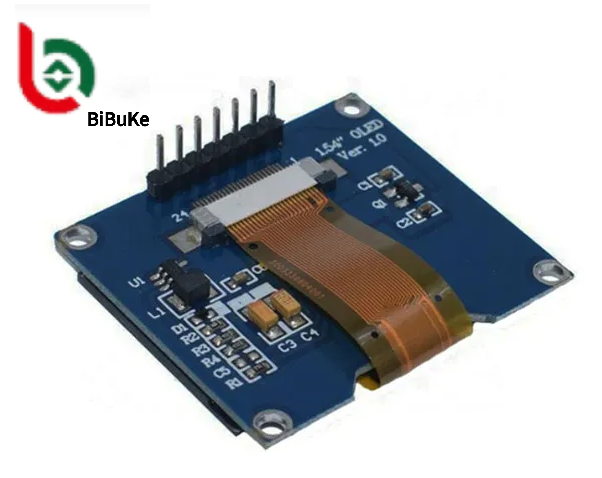

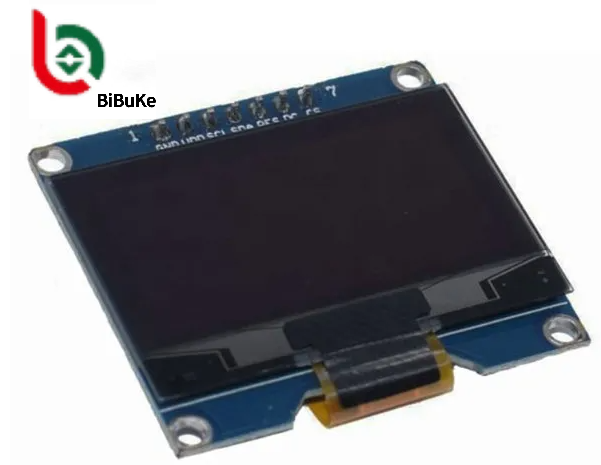

Product Images
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics

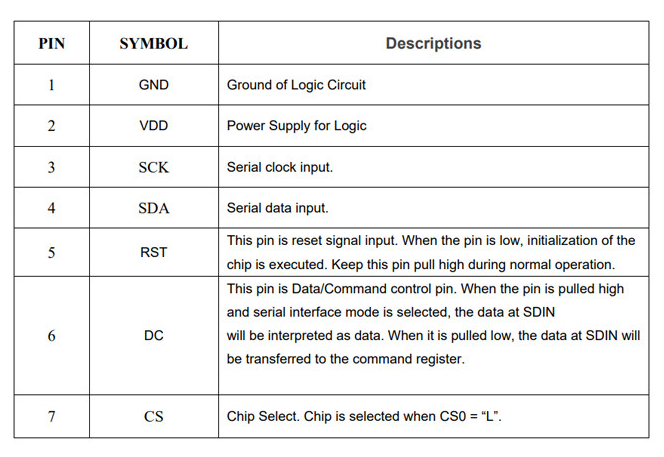

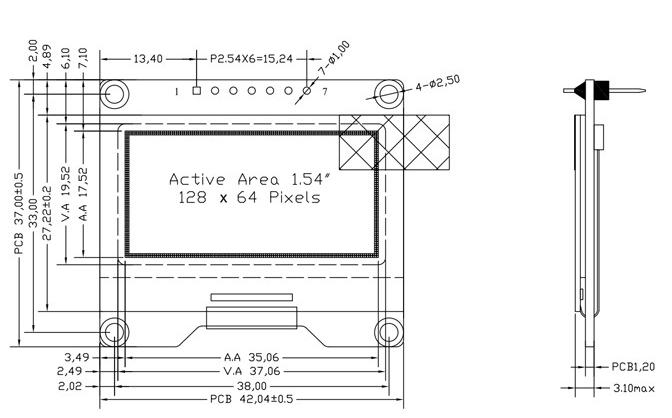

Technical Drawings
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
Packaging & Shipping
Packaging Options

We offer multiple packaging solutions including carton boxes, cupboard packaging, EPE foam, and blister trays. Packaging methods are customized based on product size and specific customer requirements, accommodating different international standards.

1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
Shipping Methods

Available shipping options include express carriers (DHL, FedEx, EMS, UPS), air freight, and sea shipping. We accommodate your preferred shipping method for optimal delivery.

1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
Payment Methods
1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics
