3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface
3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface
3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface
3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface
Specifications
Storage Temperature :
-40°C To +85°C
Interface :
Plug-in Connection
Viewing Angle :
All Viewing Angles
Size :
3.12 inch
Pin Number: :
30 Pins
Supply Voltage: :
2.4 - 3.5V
Pixel Pitch: :
0.30 (W) X 0.30 (H)
Resolution :
256x64
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

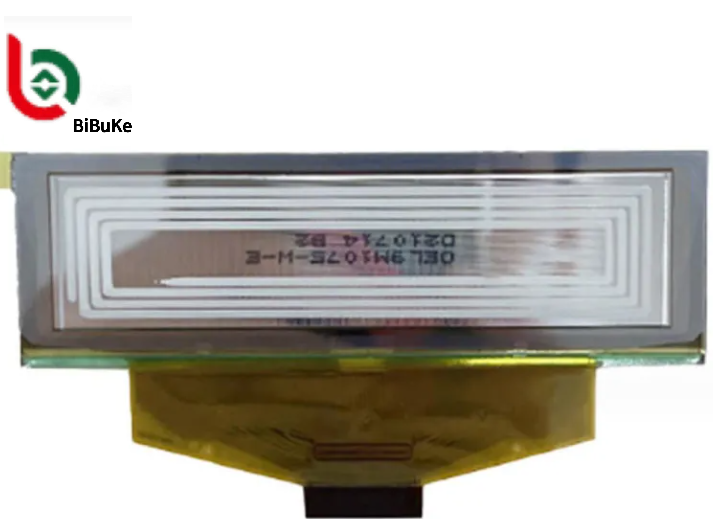

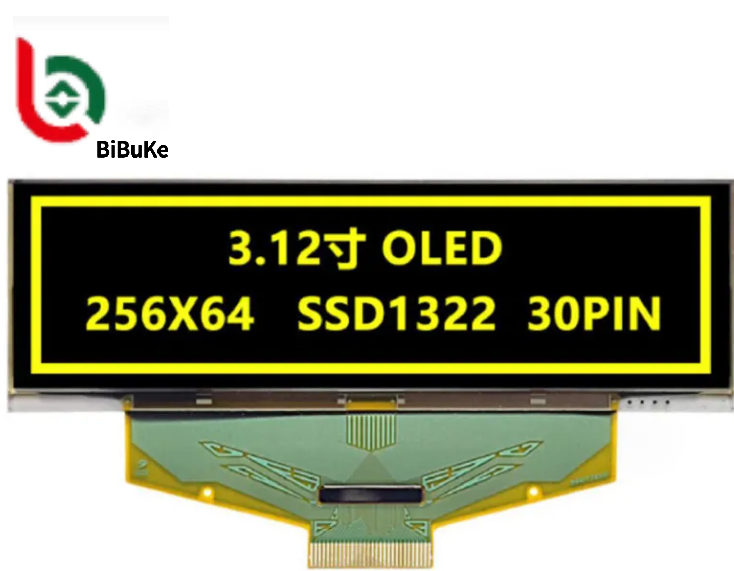

3.12" 256*64 Dots OLED Display Module with SPI/Parallel/I2C Interface
Organic light-emitting diodes (OLEDs) represent next-generation display technology, delivering brighter, clearer images with faster response times. This monochrome OLED display features 256 * 64 individual dots and offers multiple interface options including default SPI, parallel, and I2C connectivity.
Product3.12" Inch Passive OLED
Resolution256*64 Pixels Resolution
InterfaceParallel, SPI Optional
Display ModePassive Matrix
Display ColorWhite, Yellow
OpticsAll Viewing Angles
Active Area76.78 (W) * 19.18 (H) mm
Outline Dimensions88.00 (W) * 27.80 (H) mm
Pixel Pitch0.30 (W) * 0.30 (H) mm
Operating Temperature-40°C to +80°C
Storage Temperature-40°C to +85°C
Supply Voltage2.4 - 3.5V
Module Connecting TypePlug-in Connection
Driver ICSSD1322
Pin Number30 Pins
IC Package TypeCOF
Duty1/64
3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface 3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface
Technical Specifications
Size: Diagonal active area measures 3.12 inches. Module dimensions approximately 88.00mm * 27.80mm with active area of 76.78mm * 19.18mm.
Resolution: 256*64 pixel resolution provides excellent clarity for text, icons, and basic graphics on compact displays.
Display Characteristics: OLED technology enables self-luminous operation without backlight, delivering high contrast ratio up to 20,000:1 and wide viewing angles for clear visibility from any perspective.
Interface Type: Supports SPI, parallel, and I2C interfaces for flexible integration with various microcontroller platforms including STM32, Arduino, and ESP32.
Driver Chip: Utilizes SSD1322 driver IC with built-in display RAM cache for efficient image data processing and reduced microcontroller load.
Operating Temperature: Wide operating range from -40°C to +80°C and storage range from -40°C to +85°C ensures reliable performance in diverse environmental conditions.
Appearance and Structure: Compact COF packaging with ZIF connectors facilitates easy integration with external circuits.
Application Areas
  • Industrial Control: Display real-time data for temperature, pressure, and voltage monitoring with high contrast visibility in industrial environments
  • Smart Wearables: Ideal for wristbands and electronic watches with low power consumption and clear outdoor readability
  • Medical Equipment: Used in portable detectors and glucose meters for clear display of test results and operation menus
  • Smart Home: Serves as display interface for smart home controllers showing device status and operation menus
  • POS Systems: Integrated into cash registers and payment terminals for product information, transaction amounts, and operation prompts
  • DIY Projects: Popular among electronics enthusiasts for homemade scales, weather stations, and audio visualization devices with open-source driver support
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging methods customized according to product size and customer requirements, complying with international shipping standards.
3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface
Shipping: Express delivery via DHL, FedEx, EMS, UPS, air shipping, and sea shipping. Multiple shipping options available based on customer preference.
3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface 3.12 Inch 256x64 Resolution OLED Display Module with SPI/Parallel/I2C Interface
