0.49 Inch Graphic OLED Display With SSD1315 Support and I2C Interface for Clear Monochrome Graphics
0.49 Inch Graphic OLED Display With SSD1315 Support and I2C Interface for Clear Monochrome Graphics
0.49 Inch Graphic OLED Display With SSD1315 Support and I2C Interface for Clear Monochrome Graphics
0.49 Inch Graphic OLED Display With SSD1315 Support and I2C Interface for Clear Monochrome Graphics
Specifications
Outline :
15 X 15 X 2.42 (mm)
Display :
OLED
Display Mode :
Passive Matrix
Fpc :
4 PIN
Pixel Size :
0.155 X 0.155 (mm)
Backlight Technology :
LED
Interface: :
12C
Operatingtemperaturerange :
-20°C to 60°C
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

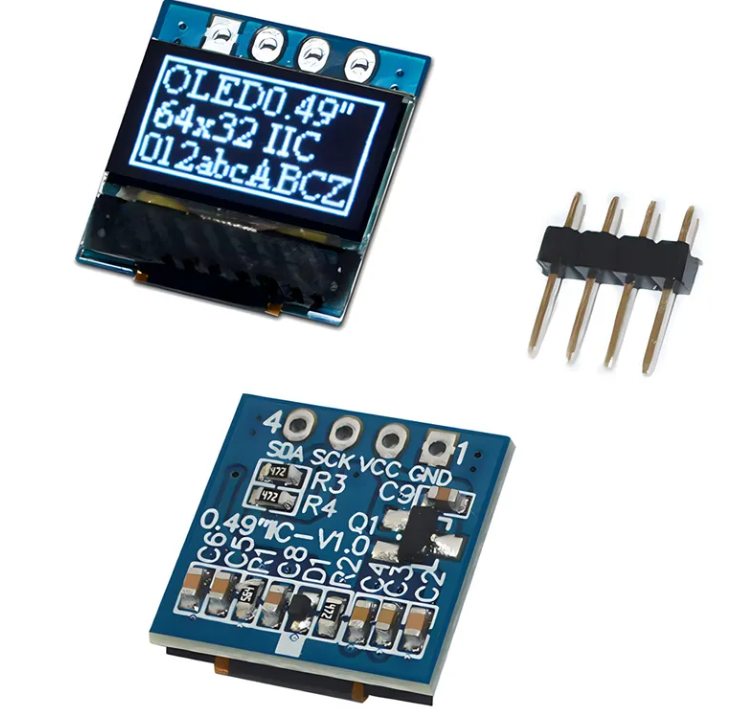

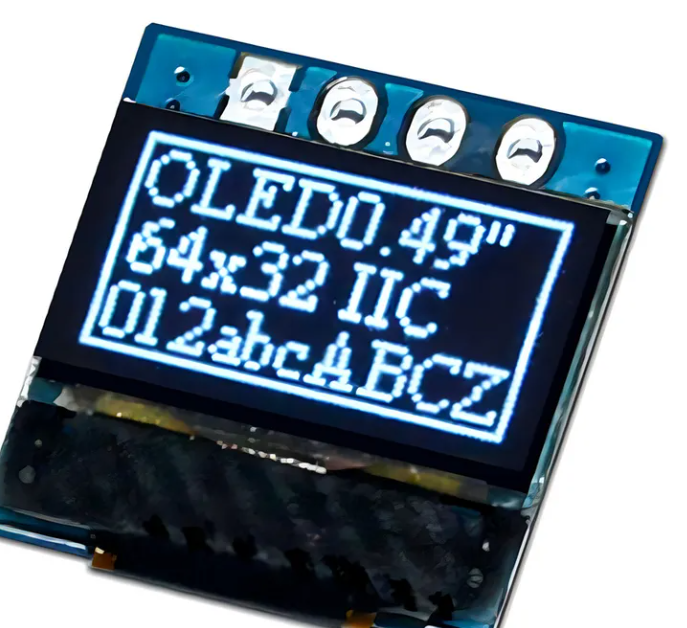

0.49 Inch Graphic OLED Display with SSD1315 Driver
This 0.49-inch graphic OLED display features a compact design with 64x32 pixel resolution and utilizes the SSD1315 driver IC. The module supports I2C interface and is ideal for various embedded applications requiring clear, high-contrast graphics display.
Product Specifications
Feature Specification
Product Type 0.49 Inch IIC OLED 4 header pins
Number Of Pixels 64x32 Graphics
Driver IC SSD1315 Or Equivalent
Display Mode Passive Matrix
Display Color Monochrome (white)
Drive Duty 1/32 Duty

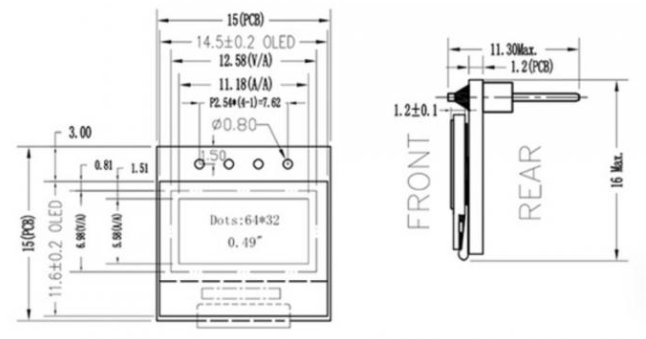

Panel Size 15 × 15 × 2.42 (mm)
Active Area 11.18 × 5.58 (mm)
Pixel Pitch 0.175 × 0.175 (mm)
Pixel Size 0.155 × 0.155 (mm)
Viewing Direction All Viewing Angles
Interface I2C
Connection Soldering/Hotbar (customizable)
Pin Number 4 Pins
Life Time 50,000 Hours @60cd/m²
0.49 Inch Graphic OLED Display With SSD1315 Support and I2C Interface for Clear Monochrome Graphics
Interface Pin Functions
No. Symbol Function
1 GND Ground
2 VCC Power supply input
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI)
4 SDA Serial data input
0.49 Inch Graphic OLED Display With SSD1315 Support and I2C Interface for Clear Monochrome Graphics 0.49 Inch Graphic OLED Display With SSD1315 Support and I2C Interface for Clear Monochrome Graphics
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specification or drawing. If you don't have specifications, you can send samples and we'll recommend suitable options or customize based on your requirements.
This LCD is what we want, but it's too large. Do you have smaller sizes with modified display content?
For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling to meet your specific requirements.
This LCD display is HTN type, but I want STN type. Can you make this change?
Yes, we can modify the display type to STN or other types according to your specific requirements.
Can you customize a new LCD module for my application?
Absolutely. Please provide your drawing or specifications including outline size, display information (glass thickness, polarizer, display type, connector mode, storage temperature, operating temperature, supply voltage, viewing direction, drive conditions).
What is the lead time for custom tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines once your drawing is confirmed.
Can you send samples for evaluation?
Yes, sample orders are available for testing and evaluation purposes.
What is your standard lead time?
For standard products in stock, lead time is one day after payment. For mass production of custom orders, lead time is approximately 15-30 days. We'll notify you if we can complete orders sooner.
