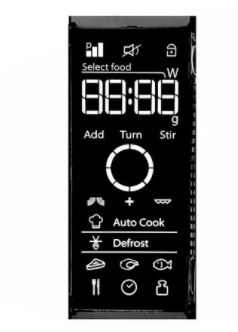

3.5V VA LCD Display with Negative High Contrast and 12 O'clock Viewing Angle
3.5V VA LCD Display with Negative High Contrast and 12 O'clock Viewing Angle
3.5V VA LCD Display with Negative High Contrast and 12 O'clock Viewing Angle
3.5V VA LCD Display with Negative High Contrast and 12 O'clock Viewing Angle
Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Type :
FSTN Lcd Display
Working Supply :
3.5V
Connector :
PIN
Backlight :
White Led
Viewing Angle :
12 O ' clock
Backlight Type :
LED
Display Color :
Customizable
Drive Method :
Static Or Dynamic
Description
3.5 Volt Custom LCD Display / VA Negative High Contrast LCD Transmissive Display Module
A high-contrast LCD display device that adopts VA (vertical alignment) liquid crystal technology, with a working voltage of 3.5V, supporting customization and using negative display mode.
Product Specifications
Type VA LCD Display
Background Black Color
Voltage 3.5 V
Connector Pin
Driving Method Static Or Dynamic
Polarizer Type Transmissive, Transflective

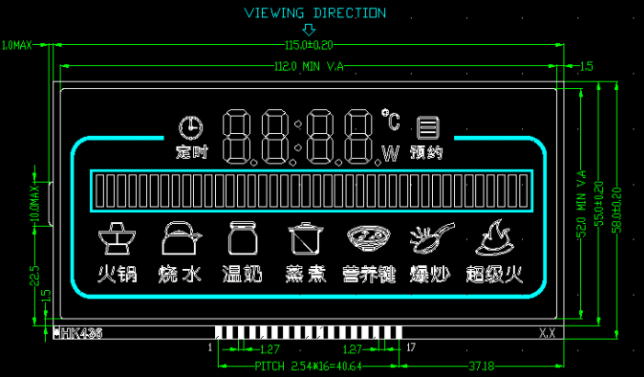

Detailed Specifications
Item Content Description
1 LCD Type FSTN LCD Display
2 Outline Size 115mm (L) * 58mm (W) * 1.1mm T
3 VA Size 112mm (L) * 52mm (W)
4 Viewing Direction 12 O'clock
5 Voltage 3.5V
6 Display Mode Negative
7 Polarizer Mode Transmissive
8 Backlight White LED
9 LED Number 4pcs
10 Contactor Pin
3.5V VA LCD Display with Negative High Contrast and 12 O'clock Viewing Angle 3.5V VA LCD Display with Negative High Contrast and 12 O'clock Viewing Angle 3.5V VA LCD Display with Negative High Contrast and 12 O'clock Viewing Angle
Display Screen Core Introduction
The VA liquid crystal molecules in this module are in a vertical alignment state when not powered, and will tilt with the voltage change after being powered, thereby controlling the amount of light passing through to achieve imaging. The low working voltage of 3.5V meets the power supply requirements of most small electronic devices, and the energy consumption control is reasonable.
Key Features
  • Negative display mode with dark background and light content
  • High contrast ratio (typically above 3000:1) for excellent visibility
  • Wide viewing angles with minimal color shift
  • Customizable screen size, display area, and interface options
  • Includes liquid crystal panels, driving ICs, and FPC flexible circuit boards
  • Optional white LED backlight for low-light environments
  • Wide operating temperature range (-30℃ to 85℃)
Performance Considerations
Due to the characteristics of VA liquid crystal technology, its response time is slower compared to TN and IPS panels. When displaying high-speed dynamic images, it may cause slight ghosting. Therefore, it is more suitable for static or low-speed changing information display rather than high-dynamic scenes.
Main Applications
  • Automotive Electronics: Instrument panels for motorcycles, electric vehicles, and cars displaying speed, battery level, and fault codes
  • Industrial Instruments: Multimeters, thermometers, power detectors, and charging stations
  • Smart Home Devices: Control panels for air conditioning systems and smart lock status displays
  • Consumer Electronics: Portable medical devices like blood glucose meters and electronic thermometers
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo printing and model number labeling
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Rigorous quality control with pre-shipment testing
  • Custom LCD display solutions based on your specifications
