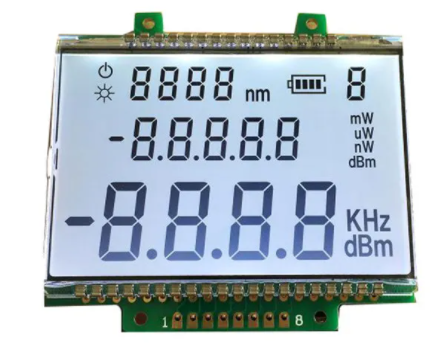

Custom 7 Segment LCD Display Panel with 83x76x1.1mm Dimensions 4.3V and 1/4 Duty 1/3 Bias
Custom 7 Segment LCD Display Panel with 83x76x1.1mm Dimensions 4.3V and 1/4 Duty 1/3 Bias
Custom 7 Segment LCD Display Panel with 83x76x1.1mm Dimensions 4.3V and 1/4 Duty 1/3 Bias
Custom 7 Segment LCD Display Panel with 83x76x1.1mm Dimensions 4.3V and 1/4 Duty 1/3 Bias
Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Display Outline Size :
83 ( H ) * 76 ( W ) * 1.1 mm ( T )
Operating Temperature :
-10～60℃
Driving Method :
1/4 Duty 1/3 Bias
Dimensions :
Customizable
Segment :
7 Segment Display
Number Of Segments :
Customizable
Driving Voltage :
4.3v
Drive Mode :
1/4 Duty, 1/3 Bias
Description
Custom 7 Segment LCD Display Panel / High Contrast Transparent Positive LCD Module
This high-performance LCD module features a 7-segment display with excellent contrast and transparency, ideal for various industrial and consumer applications.
Product Specifications
LCD Type FSTN LCD Display
Voltage 4.3V
LED White
Display Mode Transflective
Detailed Parameters
Item Content Description
1 Display Outline Size 83 (H) * 76 (W) * 1.1 mm (T)
2 Viewing Size 75 (H) * 70 (W) mm
3 Voltage 4.3V
4 Operation Temperature -10～60℃
5 Drive Parameter 1/4 Duty 1/3 Bias
6 Backlight 6pcs LED
7 Color White
8 Interface Pin

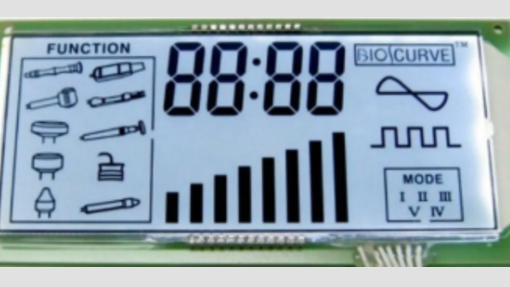

Custom 7 Segment LCD Display Panel with 83x76x1.1mm Dimensions 4.3V and 1/4 Duty 1/3 Bias Custom 7 Segment LCD Display Panel with 83x76x1.1mm Dimensions 4.3V and 1/4 Duty 1/3 Bias
Display Screen Technology
The 7-segment liquid crystal display panel shows numbers 0-9 and simple characters by independently controlling 7 segments. It utilizes the optical rotation property of liquid crystal molecules, changing their arrangement under electric fields to control light transmittance.
Key Features
  • High Contrast: Improved contrast ratio with optimized liquid crystal materials and optical film layers
  • Excellent Transparency: Over 80% transmittance in transparent areas
  • Fast Response: Quick reaction time for dynamic displays
  • Low Power Consumption: Energy-efficient operation
  • Wide Temperature Range: Operates from -10℃ to 60℃
  • Customizable: Available in various sizes, colors, and configurations
Applications
This versatile display module is suitable for numerous industries and applications:
  • Consumer Electronics: Calculators, electronic clocks, remote controls
  • Industrial Instruments: Multimeters, oscilloscopes, flow meters
  • Medical Equipment: Blood pressure monitors, glucose meters
  • Automotive Electronics: Dashboards, climate control displays
  • Smart Home Appliances: Microwave ovens, washing machines
  • Smart Transportation: Electronic bus signs, parking displays
Frequently Asked Questions
Can you customize an LCD display with 8 digits and 65x30x2.8mm outline size?
Yes, we can customize based on your specifications or samples. Please provide your requirements or existing samples for reference.
Can you modify the size and display content of an existing LCD model?
Yes, we can create new tooling for modified segment LCD modules with different sizes or display content.
Can you change the LCD type from HTN to STN?
Yes, we can modify the LCD type according to your requirements.
What is the lead time for custom tooling?
Typically 15-25 days after drawing confirmation and tooling payment.
Do you provide samples for evaluation?
Yes, sample orders are available for standard products.
