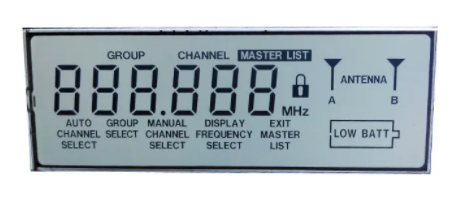

Monochrome 6 Digit 7 Segment LCD Display with 50 Pin Connector and 6 O'Clock Viewing Direction
Monochrome 6 Digit 7 Segment LCD Display with 50 Pin Connector and 6 O'Clock Viewing Direction
Monochrome 6 Digit 7 Segment LCD Display with 50 Pin Connector and 6 O'Clock Viewing Direction
Monochrome 6 Digit 7 Segment LCD Display with 50 Pin Connector and 6 O'Clock Viewing Direction
Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Backlight Type :
LED
Compatibility :
Windows, Mac, Linux
Aspect Ratio :
16:9
Va Size :
Customized
Pins Number :
50 Pins
Outline Size :
Customized
Connect :
Pin, Zebra or FPC
Technology :
LCD
Description
Monochrome Small 6'Clock Positive TN 50 Pin LCD Display
6 Digit 7 Segment Display Module
Technical Specifications
Parameter Specification
Display Type TN LCD Display
Storage Temperature -20°C to +70°C
Operating Voltage 2.8~5.0 V
Connector Type Pin or Zebra
Driving Method Static/Dynamic
Polarizer Type Transflective/Transmissive/Reflective
Product Features
Item Content Description
1 LCD Type TN, HTN, FSTN, VA, DFSTN, STN LCD Display
2 Outline Size Customized
3 VA Size Custom
4 Viewing Direction 6 O'clock or 12 O'clock
5 Voltage 2.8V, 3.0V, 3.2V, 3.6V, 4.0V, 4.5V, 5.0V
6 Display Mode Positive or Negative
7 Backlight With or without
8 Operation Temperature 0°C to +50°C, -10°C to +60°C, -20°C to +70°C
9 Storage Temperature -10°C to +60°C, -20°C to +70°C, -30°C to +80°C, -35°C to +90°C
10 Contact Method Pin, Zebra or FPC
Monochrome 6 Digit 7 Segment LCD Display with 50 Pin Connector and 6 O'Clock Viewing Direction Monochrome 6 Digit 7 Segment LCD Display with 50 Pin Connector and 6 O'Clock Viewing Direction
Product Overview
This 6-digit 7-segment LCD display features a monochrome design capable of simultaneously displaying 6 independent numbers, each composed of 7 light-emitting segments. It can present Arabic numerals from 0 to 9 and simple symbols (decimal points, negative signs) when combined with additional fields, making it ideal for numerical information display applications.
Utilizing TN (Twisted Nematic) liquid crystal technology, this display offers fast response speed and cost-effective manufacturing, providing a highly economical basic LCD solution. The "6 o'clock" viewing direction ensures optimal clarity when observing from the bottom of the screen, meeting specific device installation angle requirements.
Equipped with a 50-pin interface for stable signal transmission and power supply, this display is suitable for industrial and consumer electronic devices requiring multiple signal channels. Operating at common low voltages (3.3V or 5.0V) with a working temperature range of -20°C to 70°C and storage temperature of -30°C to 80°C, it adapts well to normal and mild temperature environments.
Primary Applications
  • Gas Stations & Fuel Equipment: Displays fuel unit price, quantity added, and consumption amounts on fuel pumps and distributors
  • Civil & Industrial Measurement Instruments: Electricity meters, gas meters, water meters for cumulative usage and balance display
  • Small Household Appliances: Microwave ovens, rice cookers, electric ovens for time and temperature settings
  • Specialized Electronic Devices: Portable scales, counters, medical thermometers, blood pressure monitors, access control timers
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Yes, we can customize this. Please provide your specifications/drawing or samples for evaluation.
This LCD is what we want, but it's too big. Do you have smaller sizes?
For segment type LCD modules requiring size or display content modifications, we can create new tooling for custom solutions.
This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can modify the LCD type according to your requirements.
Can you customize a new LCD module?
Absolutely. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, voltage, and viewing direction.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for testing and verification.
What is the lead time?
Standard products: 1 day after payment if in stock. Custom production: 15-30 days, with updates provided if completed earlier.
