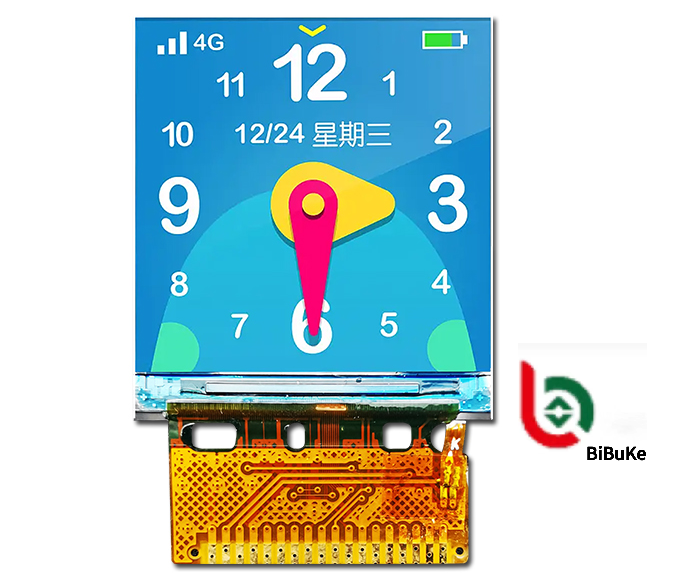

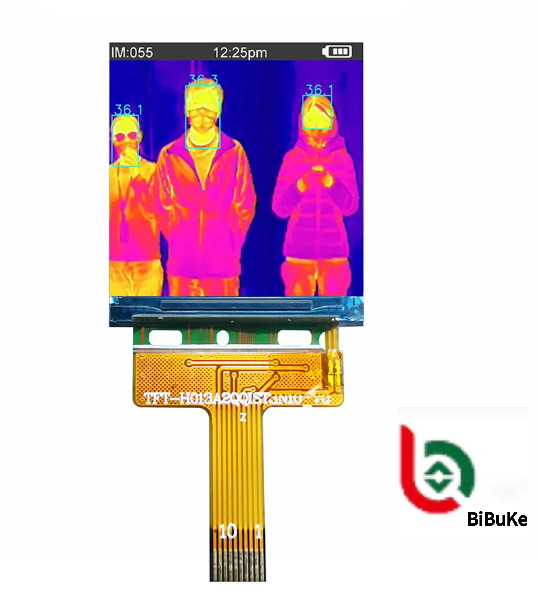

1.3 Inch IPS TFT LCD Display with 240x240 Pixels and SPI Interface for Free Viewing Angles
1.3 Inch IPS TFT LCD Display with 240x240 Pixels and SPI Interface for Free Viewing Angles
1.3 Inch IPS TFT LCD Display with 240x240 Pixels and SPI Interface for Free Viewing Angles
1.3 Inch IPS TFT LCD Display with 240x240 Pixels and SPI Interface for Free Viewing Angles
Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
1.3 Inch IPS TFT LCD Display 240x240 Pixels SPI Interface 24 Pin With Cover Glass
Product Overview
Product: 1.3 Inch IPS TFT LCD Touch Screen: Without
Resolution: 240x240 Dots Cover Glass: With, Customizable
Viewing Direction: IPS, Free Viewing Angles Interface: SPI Interface
Pin Number: 24 Pins Connection: Plugging
Surface Luminance: 250 Cd/m²(nits) LED Lifetime: 40,000 Hours
Certificate: ISO9001:2015 / ISO14001:2015 Compliance: RoHS & REACH Compliant
Technical Specifications
Item Contents
LCD Size 1.3 inch (Diagonal)
Display Mode Normally black
Resolution 240(H)RGB x 240(V)
Dot pitch 0.0975 (H) x 0.0975(V) mm
Active area 23.4(H) x 23.4(V) mm
Module size 26.16(H) x 29.22(V) x 1.5Max(D) mm
Cover Glass Size Customizable
Interface SPI
Drive IC ST7789P3
Luminance 250 (TYP) cd/m²
Viewing Direction All View
Backlight 2 White LED
Operating Temp. -20ºC ~ +70ºC
Storage Temp. -30ºC ~ +80ºC
Weight TBD
Product Features
  • Excellent Display Quality: IPS technology with 240×240 pixel resolution delivers natural color transitions, detailed imagery, and sharp text/icons
  • Convenient Interface: SPI interface enables easy connection with microcontrollers and embedded systems
  • Durable Construction: Protective cover glass prevents scratches and impacts while enhancing screen clarity
  • Wide Viewing Angles: IPS panel provides approximately 80-degree viewing angles with minimal color distortion
  • Robust Performance: Operating temperature range of -20ºC to 70ºC ensures reliability in various environments
Applications
  • Smart Wearable Devices: Smart watches, fitness trackers for time, heart rate, and step display
  • Smart Appliances: Microwave ovens, hair clippers, depilators for status and parameter settings
  • Medical Instruments: Blood pressure monitors, glucose meters for clear data presentation
  • DIY Projects: Mini game consoles, temperature/humidity meters, electronic scales for hobbyists
1.3 Inch IPS TFT LCD Display with 240x240 Pixels and SPI Interface for Free Viewing Angles 1.3 Inch IPS TFT LCD Display with 240x240 Pixels and SPI Interface for Free Viewing Angles
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specifications or drawing. If unavailable, provide samples for our recommendation or we can customize based on your requirements.
This LCD is just what we want, but it is big size. Do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules requiring size or content modifications, we can create new tooling for custom solutions.
This LCD display is HTN type, but I want STN type. Can you make?
Yes, we can modify the display type according to your specifications.
I want to customize a new LCD module. Can you do?
Yes, we provide custom LCD solutions. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, and drive conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
Can you send us samples for checking?
Yes, sample orders are available for evaluation.
What is the lead time?
Standard products in stock ship within one day after payment. Mass production for custom orders typically takes 15-30 days, with updates provided if completed earlier.
