15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
15 Inch Programming TFT LCD Touch Screen Module Display BOE DV150X0M-N11
Specifications
Place of Origin :
China
Brand Name :
BOE
Model Number :
DV150X0M-N11
Type :
TFT
Display Size :
15.0"
Supplier Type :
Original Brand
Panel Type :
a-Si TFT-LCD, LCM
Pixel Format :
RGB Vertical Stripe
Surface :
Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio :
1000:1 (Typ.) (TM)
Display Mode :
ADS, Normally Black, Transmissive
Response Time :
30 (Typ.)(Tr+Td)
Lamp Type :
12S4P WLED , 50K hours , With LED Driver
Touch Screen :
Without
Frequency :
60Hz
Input Voltage :
3.3V (Typ.)
Description

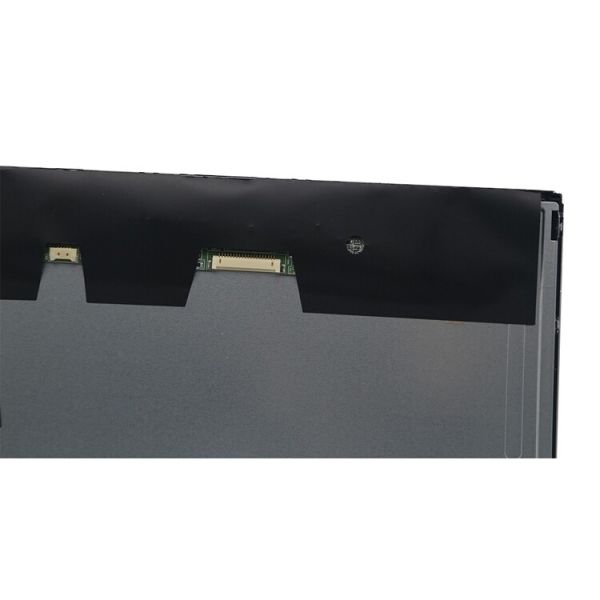

BOE DV150X0M-N11 15.0 Inch TFT LCD Display Module
15.0-inch TFT LCD screen module with 1024×768 XGA resolution and LVDS interface, designed for industrial equipment applications.
Product Overview
The DV150X0M-N11 is a 15.0-inch diagonal TFT-LCD display panel developed by BOE Technology Group Co., Ltd. This industrial-grade display screen does not include a touch screen and is designed for both horizontal and vertical orientation use.
Key Features
High Resolution Display
The 15.0-inch TFT display features a high resolution of 1024×768 pixels, delivering sharp images and vibrant colors with excellent clarity.
Wide Viewing Angle
With a wide viewing angle of 178 degrees, this TFT screen ensures images remain visible and clear even when viewed from extreme angles.
LVDS Interface
Features LVDS interface technology for reliable signal transmission in industrial environments.
Applications
Recommended for industrial devices, industrial monitors, and digital signage applications. The panel has been in mass production since Q3 2020 and remains in active production.
Customization options available including cover glass and capacitive touch elements. Cover plate available in various thicknesses of Corning Gorilla GG3 or Asahi Nitrate with surface treatments including AR, AF, and AG. Can be equipped with HDMI driver board for customer debugging and evaluation.
Technical Specifications
Brand BOE
Model P/N DV150X0M-N11
Diagonal Size 15.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 85PPI
Pixel Format RGB Vertical Stripe
Active Area 304.128(W)×228.096(H) mm
Contrast Ratio 1000:1 (Typ.)
Outline Size 326.5(W)×253.5(H)×10(D)
Response Time 30ms (Typ.)
Luminance 350 cd/m² (Typ.)
Backlight 12S4P WLED, 50K hours, With LED Driver
Viewing Angle 89/89/89/89 (Typ.)
Operation Mode ADS, Normally Black, Transmissive
Color Depth 262K, 72% NTSC
Signal Type LVDS (1 ch, 8-bit), 20 pins Connector
Weight 930g (Typ.)
Voltage Supply 3.3V (Typ.)
Refresh Rate 60Hz
Storage Temperature -20°C to 70°C
Operating Temperature -20°C to 70°C
Why Choose Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens of various brands and offers one-stop solutions for touchscreen integration. With extensive experience and advantageous supply resources in this field, we provide clients with fast and superior first-tier services.
