Specifications
Place of Origin :
China Taiwan
Brand Name :
KOE
Price :
$440/pieces 1-79 pieces
Model Number :
TX31D200VM0BAA
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
3-5 working days
Packaging Details :
10pcs/Box
Panel Type :
a-Si TFT-LCD, LCM
Display Type :
IPS, Normally Black, Transmissive
Brand :
KOE
Display Size :
12.3 inch
Supplier Type :
Original Brand
Module Outsize(mm) :
320(W)x130(H)x12.6(D)
Resolution :
1280(RGB)x480, DVGA 111PPI, 1280(RGB)x480, DVGA 111PPI
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10)
Brightness :
1000 cd/m² (Typ.), 1000 cd/m² (Typ.)
Contrast Ratio :
1000:1 (Typ.) (TM)
Backlight Type :
WLED , 70K hours , With LED Driver
Signal Interface :
LVDS (1 ch, 6-bit) , 20 pins Connector
Touch panel :
Without
Environment :
Operating Temperature: 30 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C
Application :
Rugged Industry Outdoor High Brightness Industrial Display
Warranty :
12months
Description

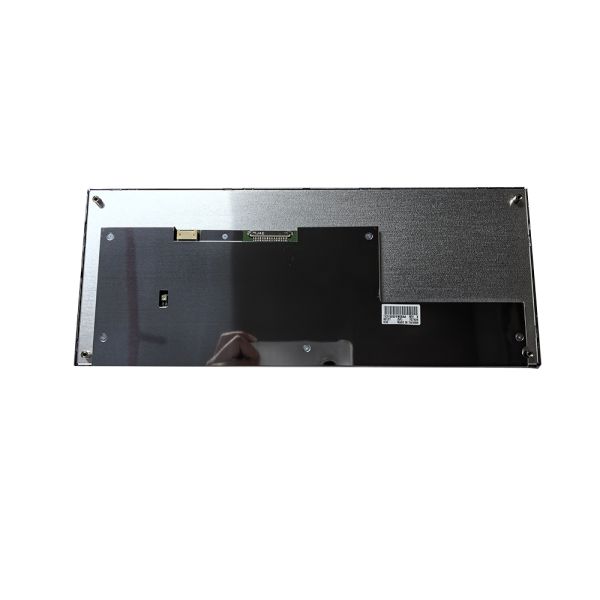

TX31D200VM0BAA KOE 12.3 Inch 1920x480 TFT-LCD Display with Wide Temperature Range for Industrial and Automotive Applications Capacitive Touch Optional
High-performance 12.3-inch TFT-LCD display module with 1920×480 DVGA resolution, engineered for demanding industrial and automotive, rugged applications requiring reliable operation across wide temperature ranges with exceptional vibration resistance.
Key Features
  • 1920×480 DVGA resolution with 111 PPI for clear display
  • 1000 cd/m² high brightness for excellent outdoor visibility
  • IPS technology with 85/85/85/85 viewing angles
  • LVDS interface with 20-pin connector for reliable data transmission
  • 1000:1 contrast ratio for superior image quality
  • WLED backlight with 70,000 hours lifespan
  • 262K color support with 100% sRGB color gamut
  • Wide operating temperature range: -30°C to 80°C
  • High vibration resistance: 5.0G (49.0 m/s²)
Technical Specifications
Panel Model TX31D200VM0BAA Panel Brand KOE
Size 12.3 Inch Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×480, DVGA 111PPI Pixel Format RGB Vertical Stripe
Module Dimensions 320(W)×130(H)×12.6(D) mm Display Mode IPS, Normally Black, Transmissive
Active Area 291.84(W)×109.44(H) mm Response Time 25 ms (Typ.)
Display Colors 262K 100% sRGB Light Source WLED, 70K hours, With LED Driver
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Touch Without
Brightness 1000 cd/m² (Typ.) Power Supply 3.3V (Typ.)
Contrast Ratio 1000:1 (Typ.) Application Rugged Industry, Outdoor High Brightness, Industrial
Frame Rate 60Hz Environment Storage Temp.: -40°C to 90°C
Operating Temp.: -30°C to 80°C
Vibration Level: 5.0G (49.0 m/s²)
Interface Type LVDS (1 ch, 6-bit), 20 pins Connector FPC Connector JAE, FI-SEB20P-HF13E, Pitch 1.25mm
Applications
  • Industrial equipment and machinery
  • Automation equipment displays
  • CNC machine displays
  • EV Charger Display
  • Industrial Control Display
  • Rugged Display
  • Outdoor High Brightness Display
  • Automotive displays
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).
Capacitive Touch Optional
This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
