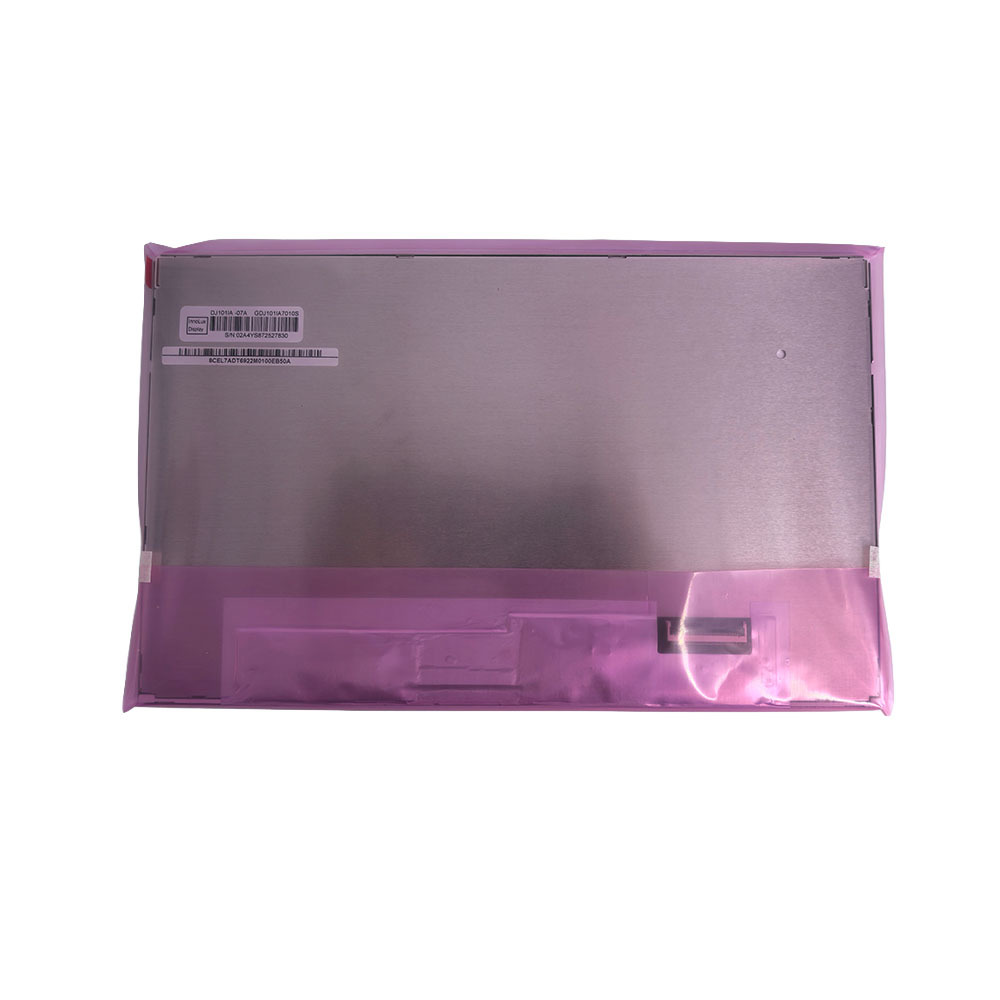

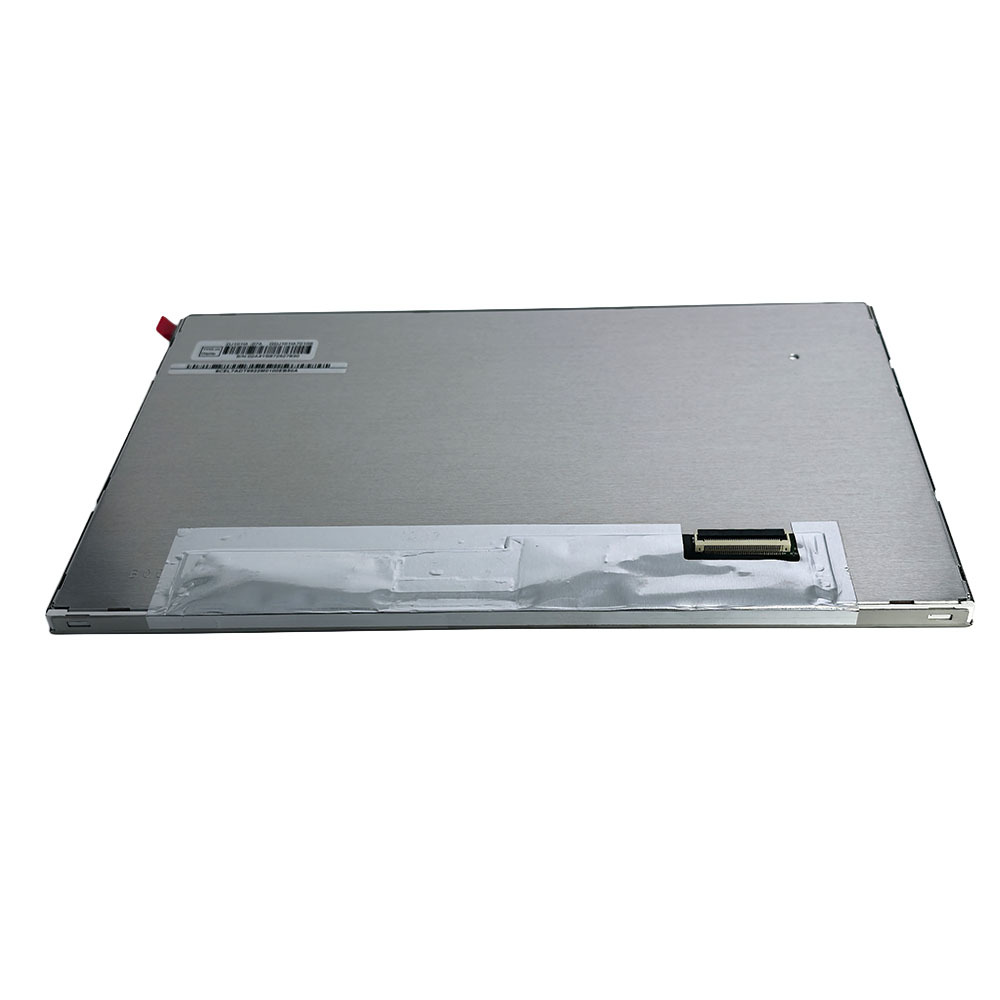

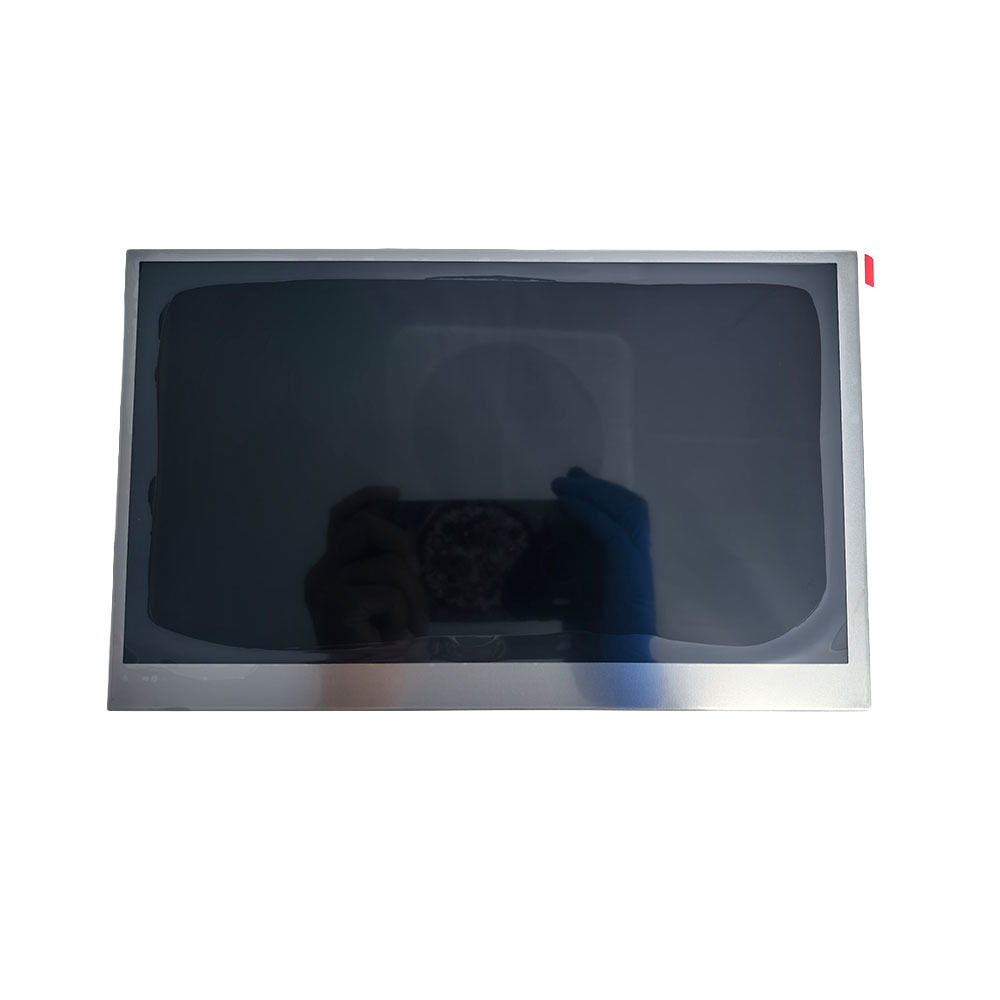

Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Innolux DJ101IA-07A 10.1 Inch WXGA 1280x720 Resolution 750 cd/m² High Brightness Industrial TFT Display for Automotive and Outdoor Use
Specifications
Interface :
LVDS (1 ch, 6/8-bit) , Connector 40 pins
Warranty :
12 Months
Delivery Time :
1-3 working days
Display Size :
10.1 inch
Model Number :
DJ101IA-07A
Module Outsize(mm) :
238.6×148×9.7 mm (H×V×D)
Touch Screen :
Without
Price :
$89/pieces 1-99 pieces
Packaging Details :
26pcs/Box
Brightness :
750cd/m2
Supply Ability :
1000pcs/Month
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10)
Payment Terms :
L/C,D/A,D/P,T/T
Supplier Type :
Original Brand
Place of Origin :
China
Resolution :
1280(RGB)×720, WXGA, 16:9
MOQ :
1
Application :
Outdoor High Brightness, Automotive Display
Panel Type :
a-Si TFT-LCD, LCM
Brand Name :
Innolux
Description
Innolux DJ101IA-07A 10.1-Inch FHD 1280x720 Resolution 16:9 Industrial TFT Display
Product Overview

Innolux 10.1 inch 1280×720 16:9 WXGA Industrial & Automotive TFT Module. This industrial-grade WXGA TFT-LCD panel features AAS technology, wide viewing angles, and extended operating temperature range, making it ideal for industrial control and automotive equipment applications.

Key Features
  • 10.1" WXGA (1280×720) a-Si TFT-LCD Display
  • 750 cd/m² High Brightness for Sunlight Readability
  • Extended Temperature Range: -30°C to 85°C Operation, -40°C to 90°C Storage
Technical Specifications
Core Specifications
Manufacturer Innolux
Model No. DJ101IA-07A
Screen Size 10.1 inch
Screen Type a-Si TFT-LCD, LCM
Optical Specifications
Resolution 1280(RGB)×720, WXGA, 16:9
Pixel Format RGB Vertical Stripe
Active Area 223.68×125.82 mm (H×V)
Outline Size 238.6×148×9.7 mm (H×V×D)
Weight 330g (Max.)
Surface Feature Antiglare
Luminance 750 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Good View at Symmetry
Response Time 10/15 (Typ.)(Tr/Td) ms
Display Type AAS, Normally Black, Transmissive
Display Colors 262K/16.7M, 70% NTSC
Refresh Rate 60Hz
Electrical Specifications
Touchscreen Without
Backlight WLED, 20K hrs, No Driver
Signal Interface LVDS (1 ch, 6/8-bit), Connector 40 pins
Connector I-pex,20647-040E-01,Pitch 0.5mm
Voltage Supply 3.3V (Typ.)
Environmental Specifications
Operating Temperature -30°C to 85°C
Storage Temperature -40°C to 90°C
Application Scenarios
  • Industrial HMI & Control Panels
  • Outdoor Kiosks & Digital Signage
  • Medical & Healthcare Devices
  • Automotive & Transportation Displays
Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive touchscreen integration available as an optional feature.

About Wan Shujie Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
