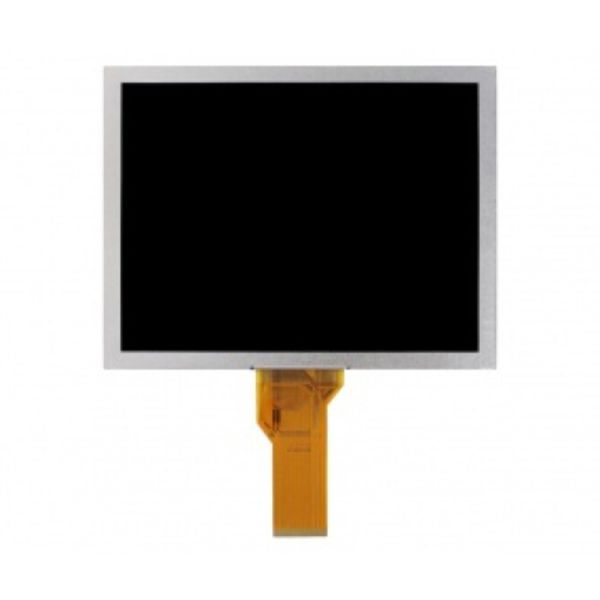

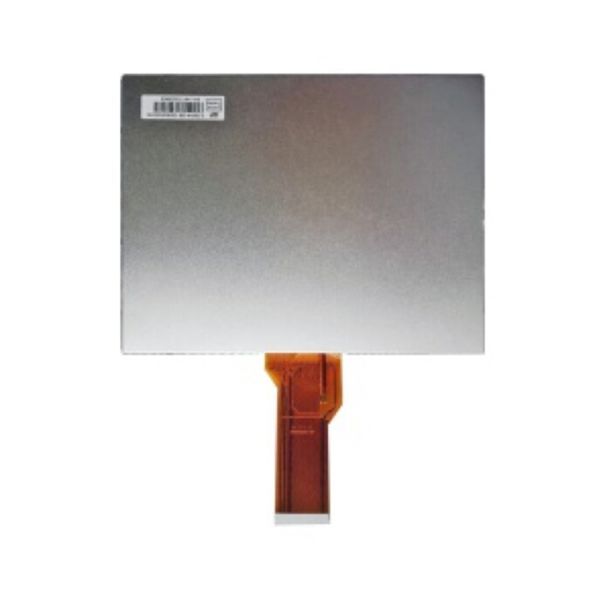

8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
8.0 800x600 SVGA 125PPI A-Si Colour TFT Display LCD LCM Module 8bit Touch Panel
Specifications
Place of Origin :
China
Brand Name :
Innolux
Price :
$100/pieces 1-99 pieces
Type :
TFT
Supplier Type :
Original Brand
Panel Type :
a-Si TFT-LCD, LCM
Pixel Format :
RGB Vertical Stripe
Bezel Opening :
164.8(W)*124.3(H) mm
Treatment :
Antiglare
Contrast Ratio :
1000:1 (Typ.) (TM)
Response Time :
25 (Typ.)(Tr+Td)
Operating Mode :
TN, Normally White, Transmissive
Light Source :
WLED [3S9P] , 20K hours , W/O Driver
Touch Panel :
Without
Interface Type :
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Description
8.0
Products Description
Brand
Innolux
Model P/N
EJ080NA-058
Diagonal size
8.0"
Panel Type
a-Si TFT-LCD,LCM
Resolution
800(RGB)x600SVGA 125PPI
Pixel Format
RGB Vertical Stripe
Active Area
162(W)x121.5(H) mm
Bezel Opening
164.8(W)x124.3(H) mm
Outline Dim.
183(H)x141(V) x5.9(D) mm
Treatment
Antiglare
Luminance
300 cd/mz (Typ)
Contrast Ratio
1000:1 (Typ.)(TM)
View Direction
6 o'clock
Response Time
25 (Typ)(Tr+Td)
Wiewing Angle
70/70/50170(Typ)(CR210)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K/16.7M 50% NTSC
Light Source
WLED [359P] , 20k hours , w/o Driver
Weight
234g (Typ.)
Touch Pane
Without
Frame Rate
60HZ
Power Supply
3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Interface Type
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
8.0
8.0
8.0
8.0
Details Images
Company Profile
8.0
8.0
8.0
8.0
8.0
8.0
8.0
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
8.0
