Specifications
Place of Origin :
China
Brand Name :
Sharp
Price :
$1,280/pieces 1-99 pieces
Model Number :
LQ201U1LW32
MOQ :
1
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union
Delivery Time :
3-5 working days
Packaging Details :
4pcs/Box
Panel Type :
a-Si TFT-LCD, LCM
Display Size :
20.1inch
Brand :
Sharp
Resolution :
1600(RGB)x1200, UXGA 99PPI
Module Outsize(mm) :
436 x335 x21.4
Viewing Angle :
85/85/85/85 (Typ.)(CR 10)
Brightness :
260cd/m2
Interface :
LVDS (2 ch, 8-bit) , 30 pins Connector
Touch panel :
Without
Application :
Industrial Equipment & Medical Imaging
Environment :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C
MPQ :
4pcs
Warranty :
12 Months
Description

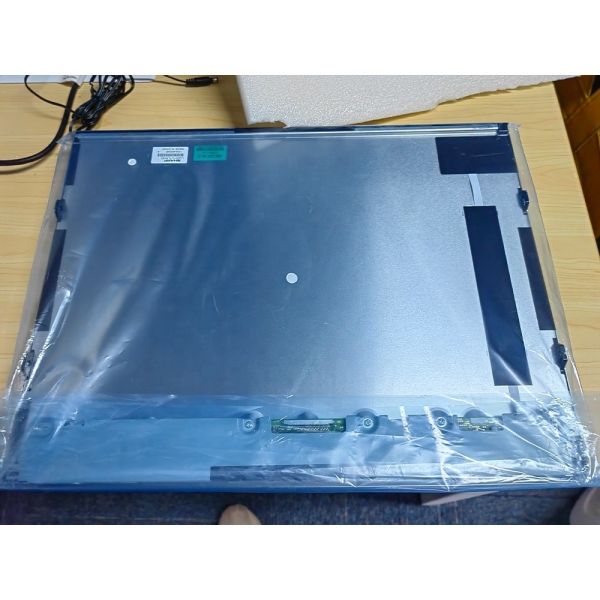

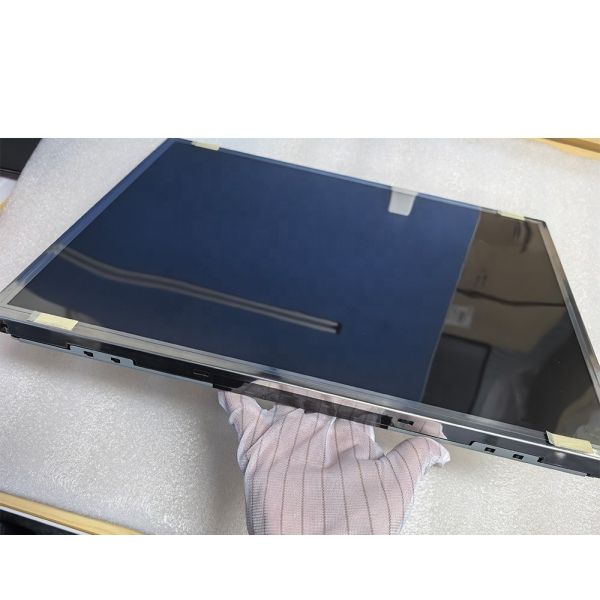

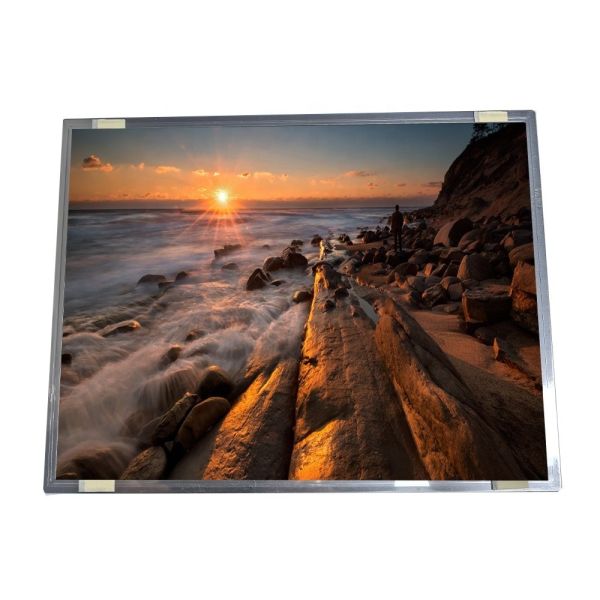

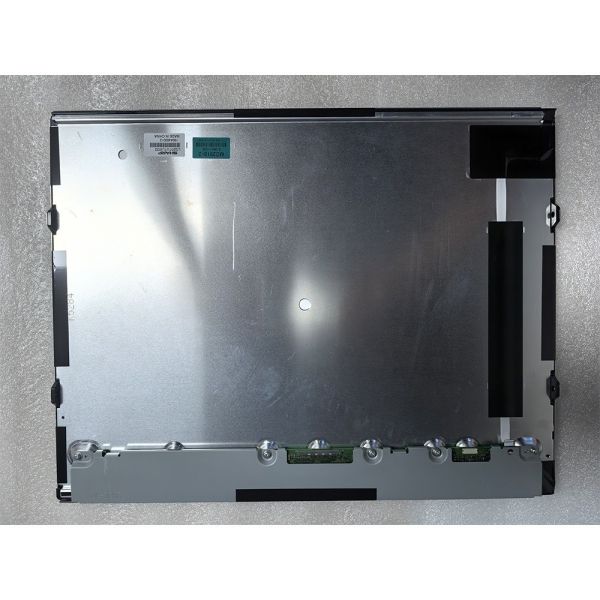

Sharp 20.1 inch 1600x1200 UXGA IPS LCD Display Module
High-performance 20.1-inch TFT-LCD display module with 1600×1200 UXGA resolution, specifically designed for industrial and medical imaging applications requiring exceptional clarity and reliability.
Key Features
  • 1600×1200 UXGA resolution with 99 PPI for detailed imagery
  • 260 cd/m² brightness for clear visibility
  • IPS technology with 85/85/85/85 viewing angles
  • LVDS interface with 30-pin connector for reliable data transmission
  • 1400:1 contrast ratio for superior image quality
  • WLED backlight with 50,000 hours lifespan
  • 16.7M color support with 71% NTSC color gamut
  • Wide operating temperature range: -0°C to 50°C
Technical Specifications
Panel Model LQ201U1LW32 Panel Brand Sharp
Size 20.1 inch Panel Type a-Si TFT-LCD, LCM
Resolution 1600(RGB)×1200, UXGA 99PPI Pixel Format RGB Vertical Stripe
Module Dimensions 436 × 335 × 21.4 mm (H×V×D) Display Mode VA, Normally Black, Transmissive
Active Area 408 × 306 mm Response Time 30 ms (Typ.)
Display Colors 16.7M 71% NTSC Light Source WLED, 50K hours
Viewing Angle 85/85/85/85 (Typ.) Touch Screen Without
Brightness 260 cd/m² (Typ.) Power Supply 12V (Typ.)
Contrast Ratio 1400:1 (Typ.) Application Industrial, Medical Imaging
Frame Rate 60Hz Storage Temperature -25°C to 60°C
Interface Type LVDS (2 ch, 8-bit) Operating Temperature -0°C to 50°C
Connector 30 pins, HRS MDF76GW-30S-1H, Pitch 1.0mm
Applications
  • Industrial Control Display
  • Medical Equipment Display
  • CNC Machine Display
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).
Can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct use in your products.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
