2.8-inch 480*480 ST7701S RGB Interface IPS Round LCD Module for Instrumentation, Industrial Control, and Automotive Displays

1. Module Name: 2.8‑inch 480*480 ST7701S RGB‑interface IPS Round LCD Display Module for Meters, Industrial Control and Vehicle‑mounted Screens
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: IPS
6. Display Colors: 65K/262K
7. Resolution: 480(RGB)*480
8. Dot Pitch: 0.1461(H)*0.1461(V)
9. Viewing Angle: Full Viewing Angle
10. Controller IC: ST7701S
11. Display Type: Transmissive, Normally Black?

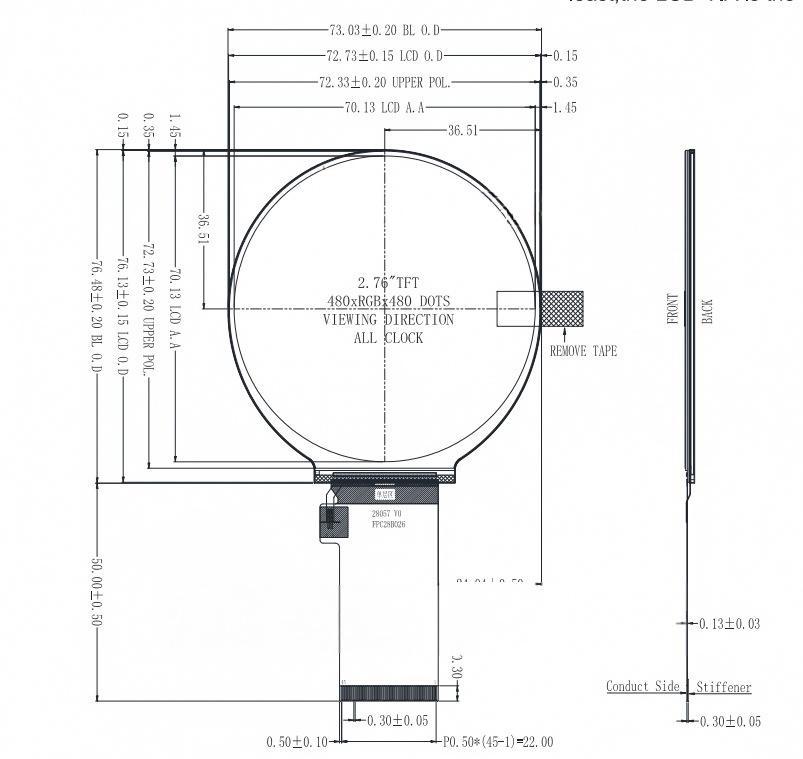

12. Outline Dimension: 73.03*76.48*2.24 mm
13. Viewable Area:
14. Dot Matrix Area: 70.13(H)*70.13(V) (2.76 inch)
15. Brightness: 500cd/m²
16. Contrast Ratio: 1500
17. Interface Type: 16/18/24‑BIT RGB
18. Number of Pins: 45 pin
19. Pin Pitch: 0.5mm
20. Connection Type: Plug‑in
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 4 LEDs in Parallel, Common Anode
If=80mA, Vf =3.2V
24. Service Life: 50000h
25. Operating Temperature: -20~70°C
26. Storage Temperature: -30~80°C
27. Quality System Certification: ISO9001:2008, ISO/TS16949:2009, ISO13485:2003
28. Product Certification: RoHS
