2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
Specifications
Payment Terms :
D/A, L/C, T/T
Place of Origin :
China
Delivery Time :
1-2WEEKS
MOQ :
1pcs
Brand Name :
WANSHUJIE
Price :
$1/pieces 1-99 pieces
Description

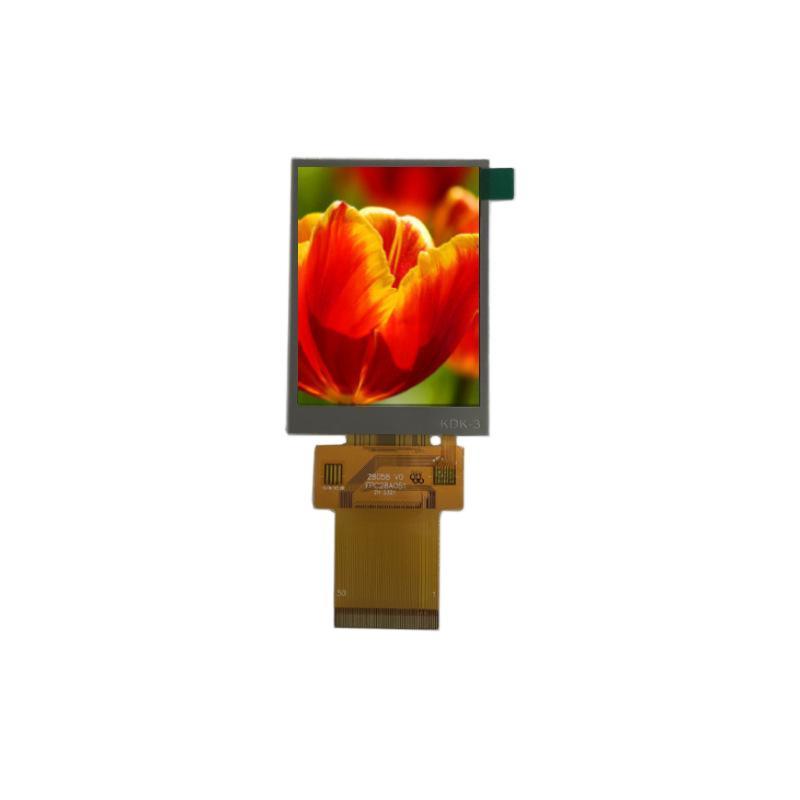

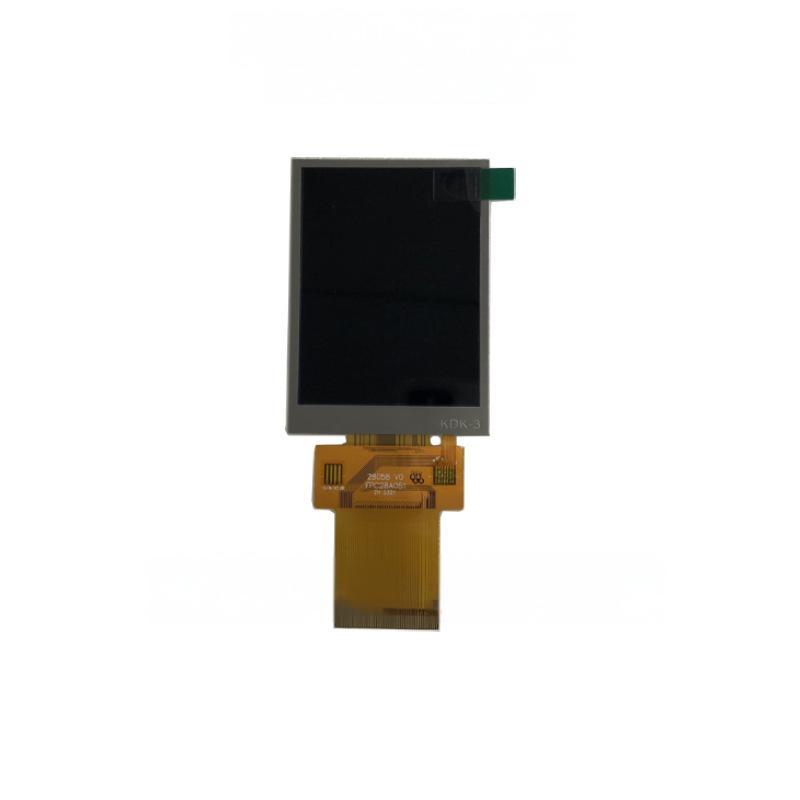

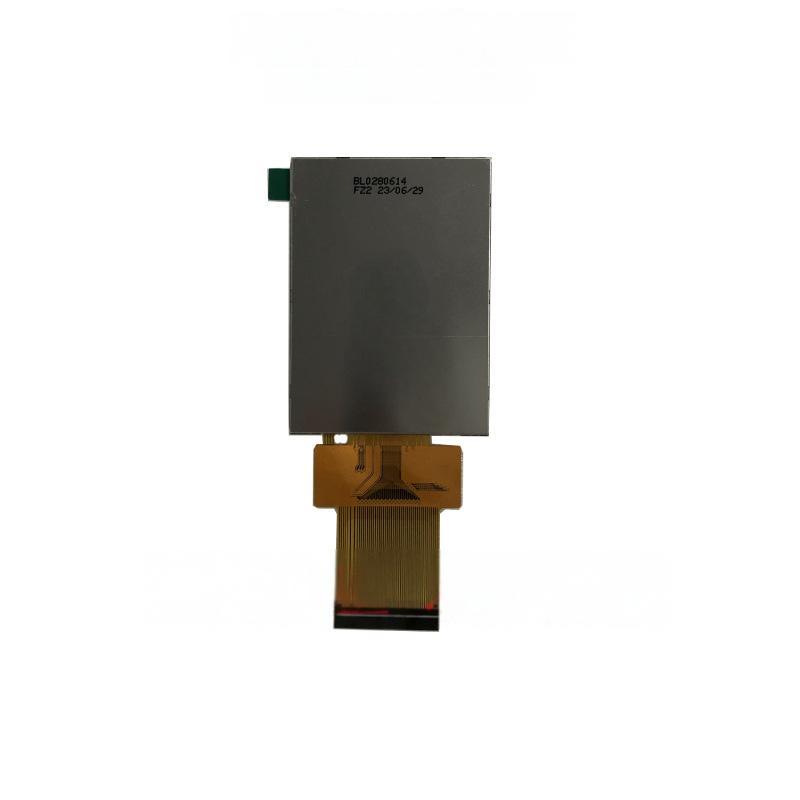

2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module

1. Module Name: 2.8‑inch 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Module
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: IPS
6. Display Colors: 65K/262K
7. Resolution: 240*320
8. Dot Pitch: 0.180(H) x 0.180 (V)
9. Viewing Angle: Full viewing angle (160°)
10. Controller IC: ST7789V2
11. Display Type: Transmissive, Normally Black

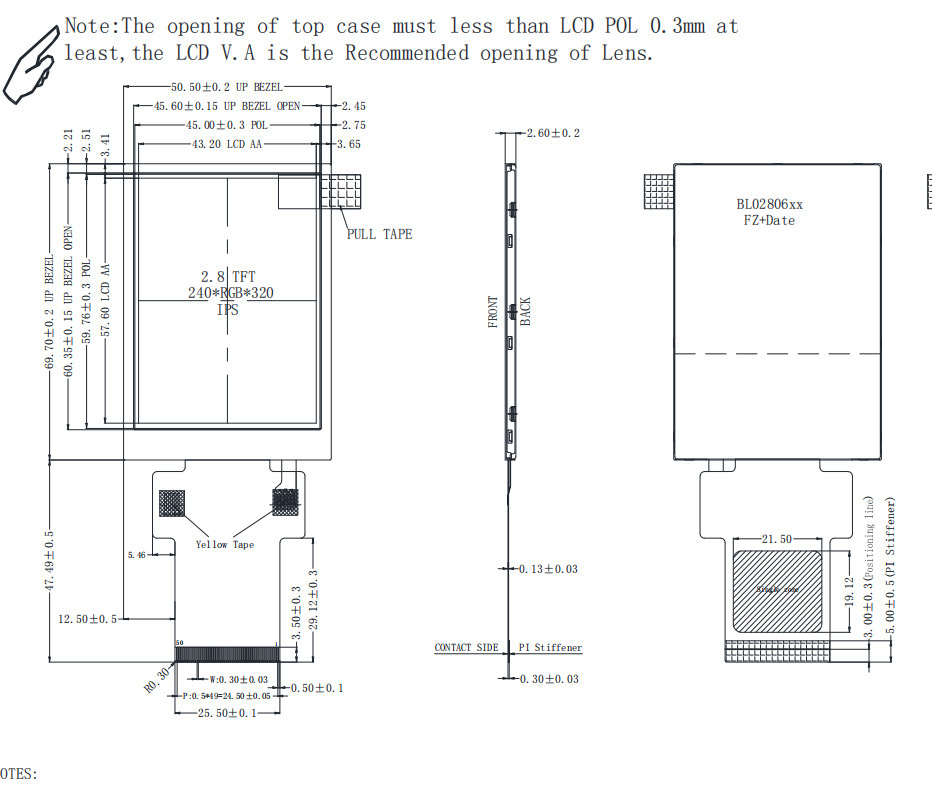

12. Outline Dimension: 50.50*69.7*2.6 mm
13. Viewable Area:
14. Dot‑matrix Area: 43.20*57.60mm
15. Brightness: 700cd/m²
16. Contrast Ratio: 1000
17. Interface Type: 8/9/16/18‑bit Parallel Interface
3/4‑wire SPI + 16/18‑bit RGB
3/4‑wire Serial Interface
18. Number of Pins: 50 pin
19. Pin Pitch: 0.5mm
20. Connection Type: Plug‑in
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 6 LEDs in parallel, common anode
If=120mA, Vf =3.2V
24. Service Life: 50000h
25. Operating Temperature: -30~85°C
26. Storage Temperature: -30~85°C
27. Quality System Certification: ISO9001:2008 ISO/TS16949:2009
ISO13485:2003

2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module

2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module

2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module

2.8‑inch LCD 240*320 ST7789V2 Full‑Viewing‑Angle MCU RGB SPI Wide‑Temperature IPS LCD Display Module
