Description

3.4-inch round 800×800 high contrast MIPI interface capacitive touch LCD module for industrial control

1. Product Name: 3.4-inch Round 800x800 High Contrast MIPI Interface Capacitive Touch LCD Display Module for Industrial Control
2. Model:
3. Size: 3.4 inches
4. Compatible Model: --
5. With Touch Panel: Yes
6. Touch Type: Capacitive Touch
7. Display Mode: TFT
8. Display Colors: 16.7M
9. Resolution: 800x800
10. Dot Pitch: 0.1095(H)*0.1095(V)
11. Viewing Angle: Full Viewing Angle
12. Driver IC: ILI9881C
13. Display Type: Transmissive, Normally Black

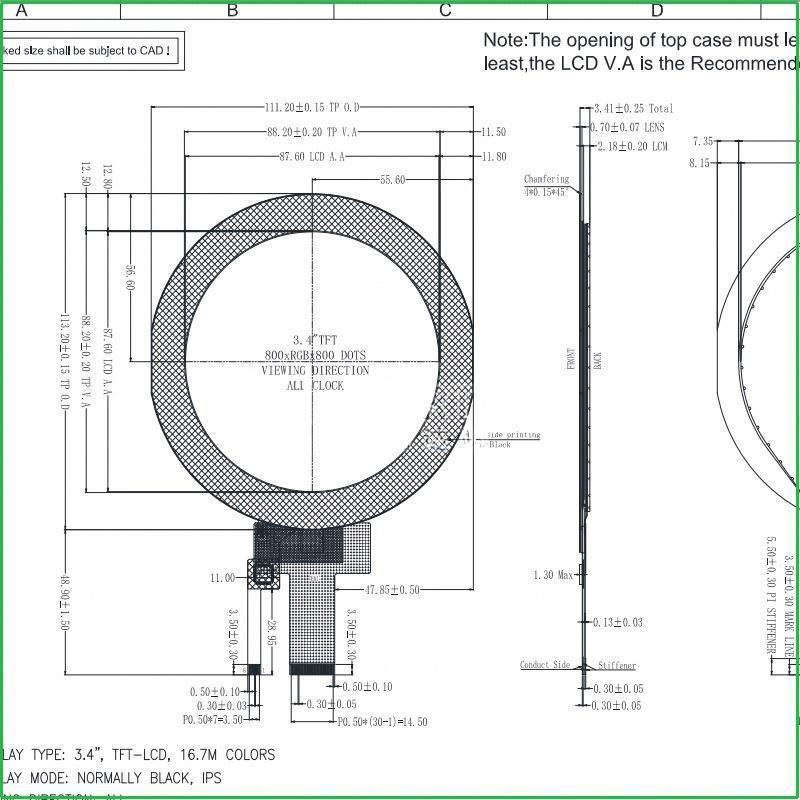

14. Outline Dimension: 111.20*113.20*3.41mm
15. Active Area: 88.20*88.20mm
16. Dot Matrix Area: 87.60*87.60mm
17. Brightness: 400cd/m²
18. Contrast Ratio: 1200∶1
19. Interface Type: MIPI
20. Pin Count: 30
21. Pin Pitch: 0.5mm
22. Connection Type: Plug-in
23. Operating Voltage: 3.3V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 8 LEDs, 4-series 2-parallel, Vled=10.8~13.2V, Iled=40mA
26. Service Life: 50000h
27. Operating Temperature: -20℃～+70℃
28. Storage Temperature: -30℃～+80℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
Capacitive Touch Panel Parameters:
1. Operating Principle: Projected Capacitive
2. Light Transmittance: ≥85%
3. Haze Value: ≤3%
4. Hardness: ≥6H
5. Multi-touch Points: 5 Points
6. Structure: G+G
7. Outline Dimension: 111.20*113.20*1.05mm
8. Active Area: 88.20*88.20mm
9. Driver IC: GT911
10. Interface: I2C
11. Connection Type: Plug-in
12. Pin Count: 8
13. Pin Pitch: 0.5mm
14. Supported Systems: Linux, Android
15. Product Certification: RoHS
16. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
