Specifications
Place of Origin :
China
Payment Terms :
D/A, L/C, T/T
Brand Name :
WANSHUJIE
Price :
$1/pieces 1-99 pieces
Delivery Time :
1-2WEEKS
MOQ :
1pcs
Description

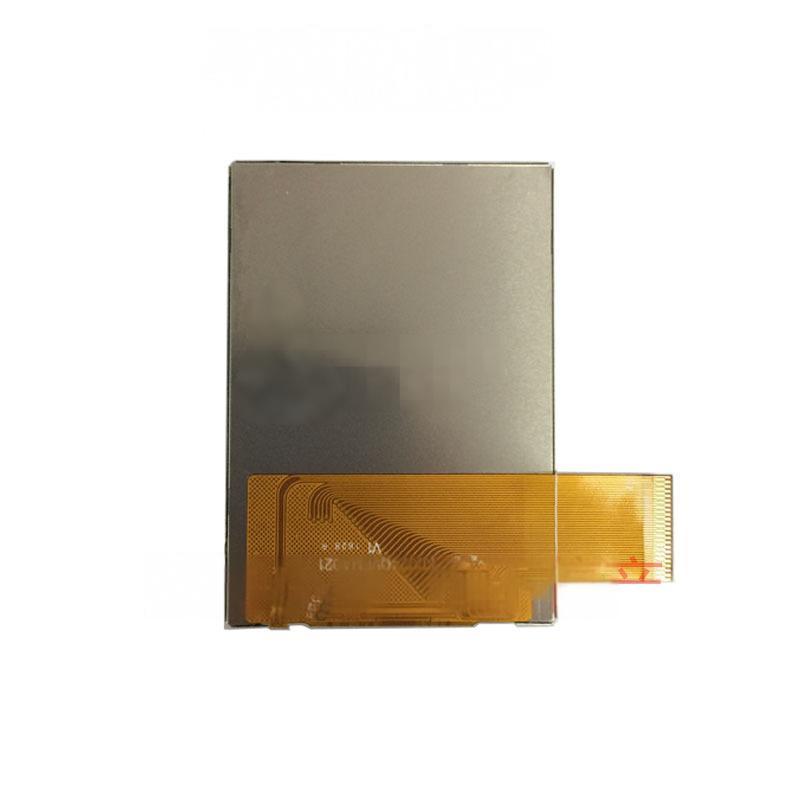

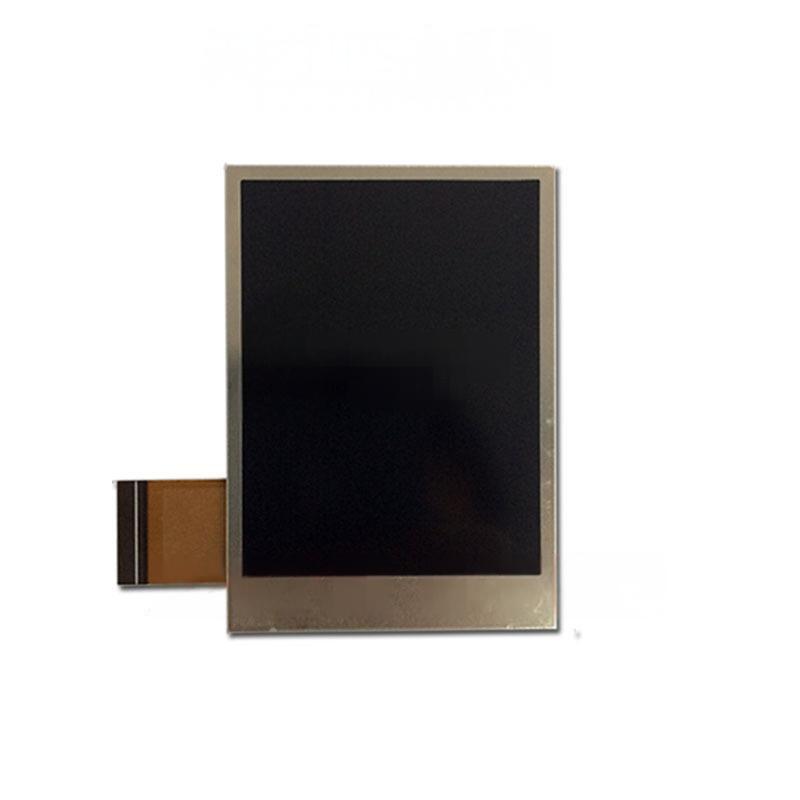

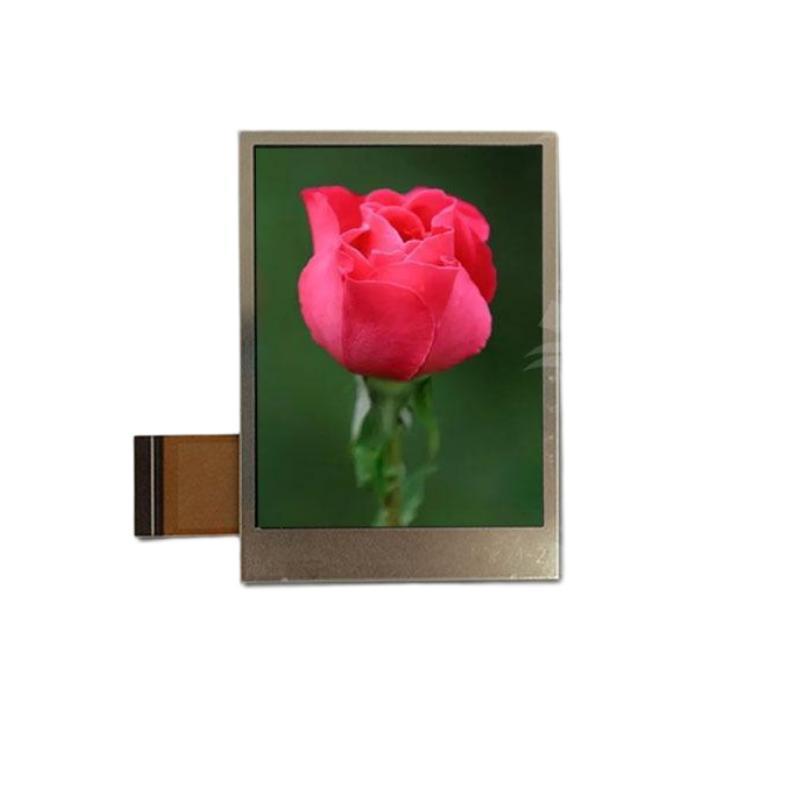

2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT

1. Module Name: 2.4‑inch 240*320, ST7789V, Full‑Viewing‑Angle, 8/9/16/18‑bit 8080 Parallel Interface, 16/18‑bit Parallel RGB, 3/4‑Wire Serial Port IPS LCD Module
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: IPS
6. Display Colors: 65/262K
7. Resolution: 240*320
8. Dot Pitch: 0.153 (H) x 0.153 (V)
9. Viewing Angle: Full viewing angle (178°)
10. Controller IC: ST7789V
11. Display Type: Transmissive, Normally Black
12. Outline Dimension: 42.92*60.26*2.5mm
13. Viewable Area: 38.12*50.56 mm
14. Dot‑Matrix Area: 36.72*48.96mm
15. Brightness: 550cd/m²
16. Contrast Ratio: 600:1
17. Interface Type: 8/9/16/18‑bit Parallel Interface
16/18‑bit RGB
3/4‑Wire Serial Port
18. Number of Pins: 45
19. Pin Pitch: 0.5mm
20. Connection Type: FPC Connector Type
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 4 LEDs in series
If=15‑20mA, Vf =12.8V
24. Operating Temperature: -20~70°C
25. Storage Temperature: -30~80°C
26. Quality System Certification: ISO9001:2008, ISO/TS16949:2009
27. Product Certification: RoHS

2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT

2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT

2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT

2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT

2.4‑inch display screen, 240*320 full‑view angle, full‑iron frame IPS dot‑matrix LCD display module, TFT
