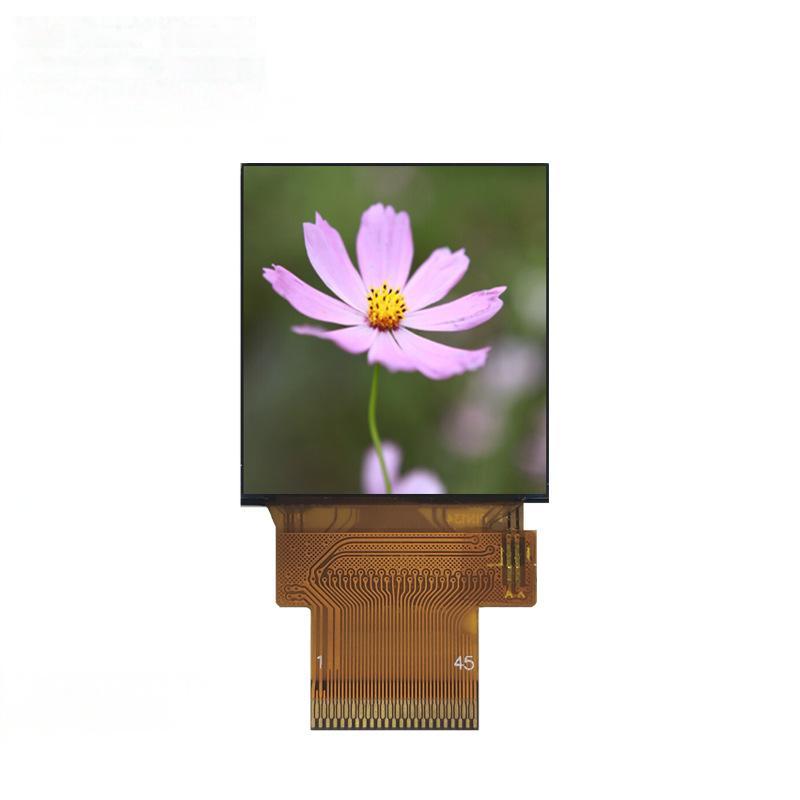

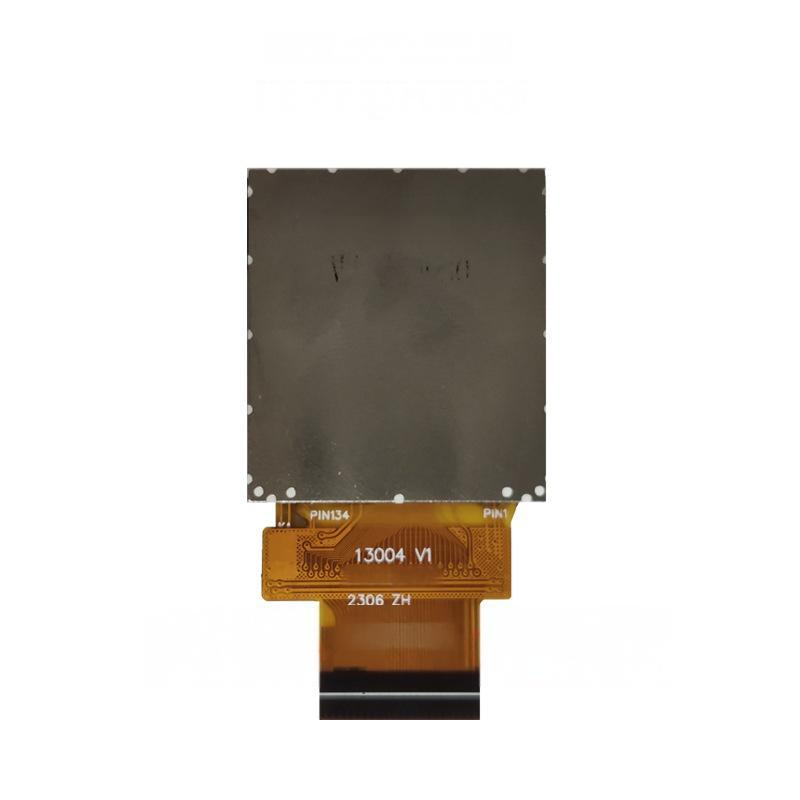

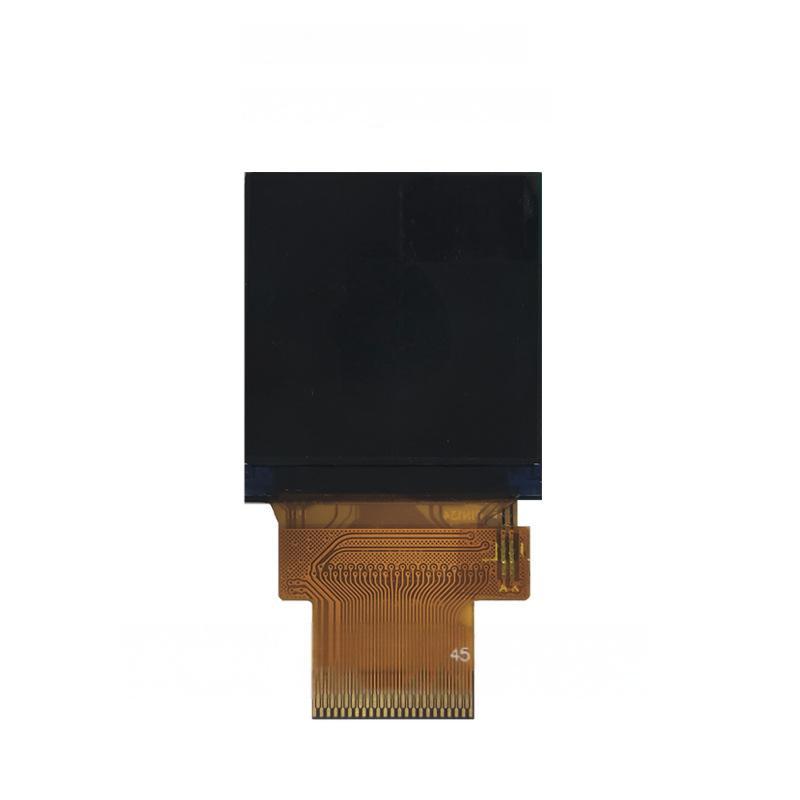

1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface
Specifications
Place of Origin :
China
MOQ :
2pcs
Brand Name :
WANSHUJIE
Price :
$10/pieces 1-99 pieces
Description

1.3‑inch 240*240 ST7789V2 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB interface

1. Module Name: 1.3‑inch 240*240, ST7789V2, 8/16/18‑bit MCU + 3/4‑wire SPI + 16/18‑Bit RGB Interface, Color LCD Screen
2. Model:
3. Similar Models:
4. Compatible Models:
5. Size: 1.3‑inch
6. Touch Support: No
7. Display Mode: TFT
8. Display Colors: 65K/262K
9. Resolution: 240(RGB)*240
10. Pixel Pitch: 0.0975(H)*0.0975(V)mm
11. Viewing Angle: Full‑view Angle
12. Controller IC: ST7789V2
13. Display Type: Transmissive, Normally Black

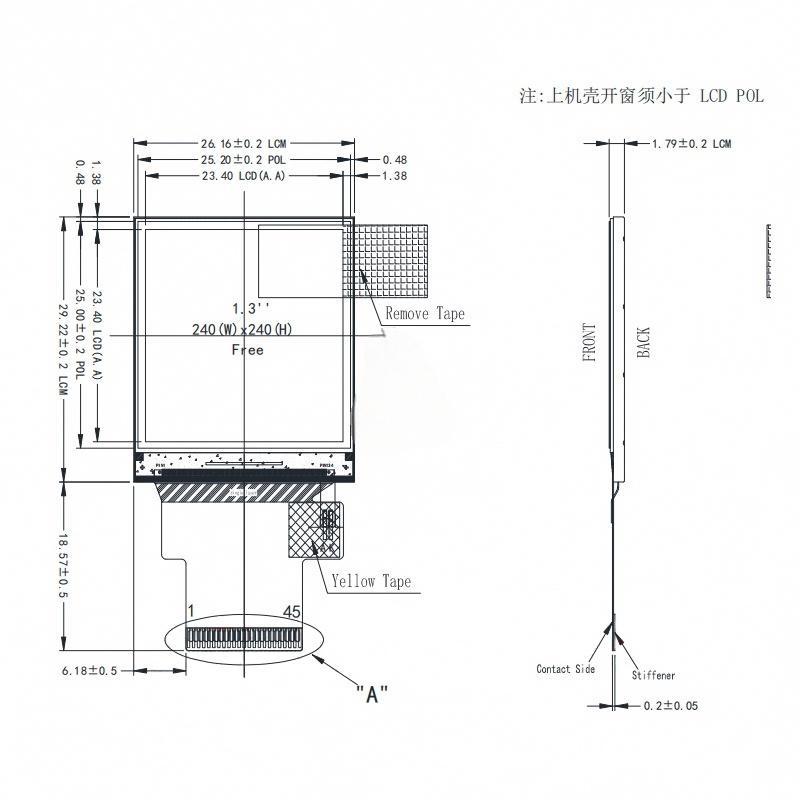

14. Outline Dimensions: 26.16*29.22*1.79 mm
15. Viewable Area: 24.2*24.2*1.39 mm
16. Dot‑matrix Area: 23.40*23.40 mm
17. Brightness: 470 cd/m²
18. Contrast Ratio: 800
19. Interface Type: 8/9/16/18‑bit MCU interface
16/18‑bit RGB + 3/4‑wire SPI interface
3/4‑wire serial interface
20. Number of Pins: 45
21. Pin Pitch: 0.3mm
22. Connection Type: FPC Plug‑in Type
23. Operating Voltage: 3.3V
24. Backlight Color and Type: White LED Backlight
25. Backlight Circuit: 2 LEDs
Vled =3.3V, Iled=40mA
26. Service Life: 50000h
27. Operating Temperature: -20~70°C
28. Storage Temperature: -30~80°C
29. Quality System Certification: ISO9001, ISO13485, IATF16949, ISO14001
30. Product Certification: RoHS
