Description

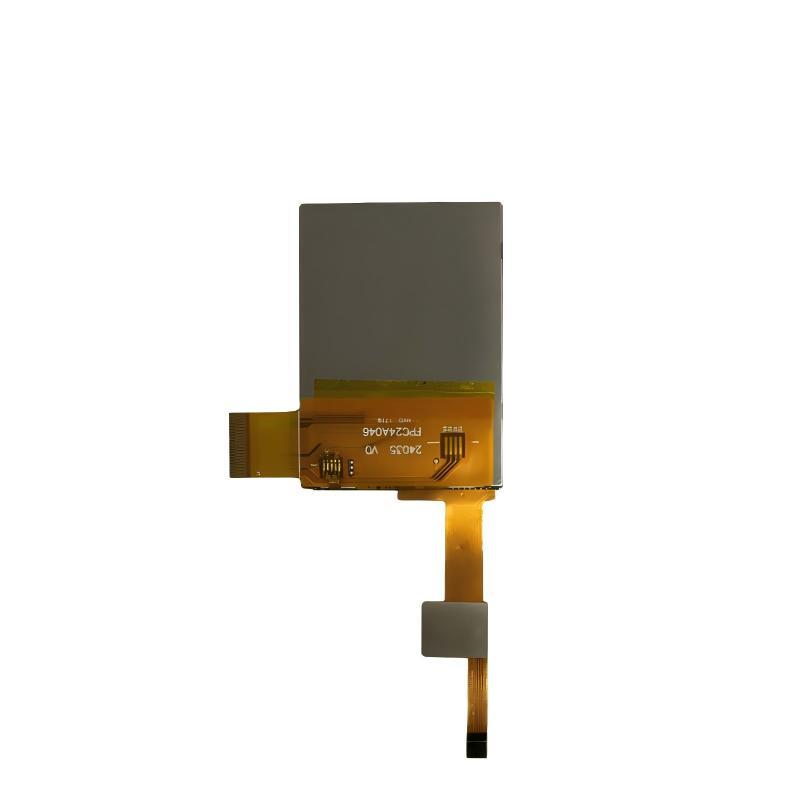

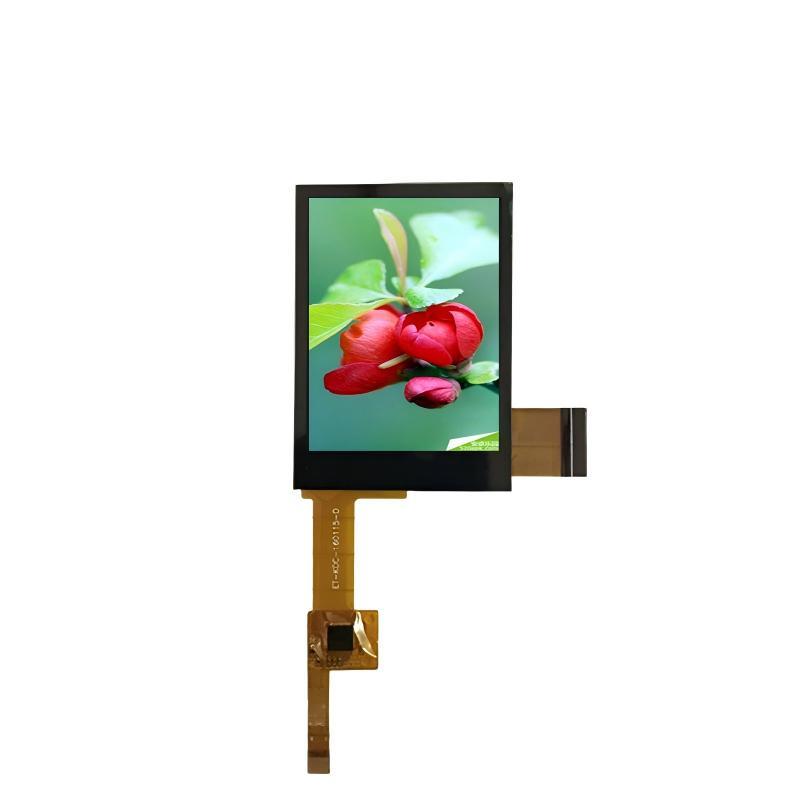

2.4-inch display, 240*320, MCU interface, transflective LCD with capacitive touch screen

1. Module Name: 2.4-inch 240*320, ST7789V, Full View Sunlight Readable MCU Interface Transflective LCD Module with Capacitive Touch Screen
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: Transflective
6. Display Colors: 65K
7. Resolution: 240*320
8. Dot Pitch: 0.153(H)x0.153(V)
9. Viewing Angle: Full View (160°)
10. Controller IC: ST7789V
11. Display Type: Transflective, Normally Black
12. Outline Dimension: 42.92*60.26*4.20 mm
13. Viewable Area: 37.32*49.56 mm
14. Dot Matrix Area: 36.72*48.96 mm
15. Brightness: 240cd/m²
16. Contrast Ratio: 300
17. Interface Type: 8/16-bit MCU Interface
18. Pin Count: 45
19. Pin Pitch: 0.3 mm
20. Connection Type: FPC Plug-in Type
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 4 LEDs (Parallel)
If=30-40mA, Vf=6.4V
25. Service Life: 50000h
Capacitive Touch Screen Parameters:
26. Operating Principle: Projected Capacitive
27. Light Transmittance: ≥85%
28. Haze Value: ≤3%
29. Hardness: ≥6H
30. Channel Count:
31. Simultaneous Touch Points: Single-touch
32. Structure: G+F
33. Outline Dimension: 42.62*59.96*1.75mm
34. Viewable Area: 37.32*49.56
35. Driver IC: FT6336G
36. Interface: IIC
37. Connection Type: Plug-in Type
38. Pin Count: 8pin
39. Pin Pitch: 0.5mm
40. Supported Systems: Linux, Android
41. Operating Voltage: DC3.3V
42. Operating Temperature: -20 -- 70°C
43. Storage Temperature: -30 -- 80°C
44. Product Certification: RoHS
45. Quality System Certification: ISO9001:2008; ISO/TS16949:2009; ISO13485:2003
