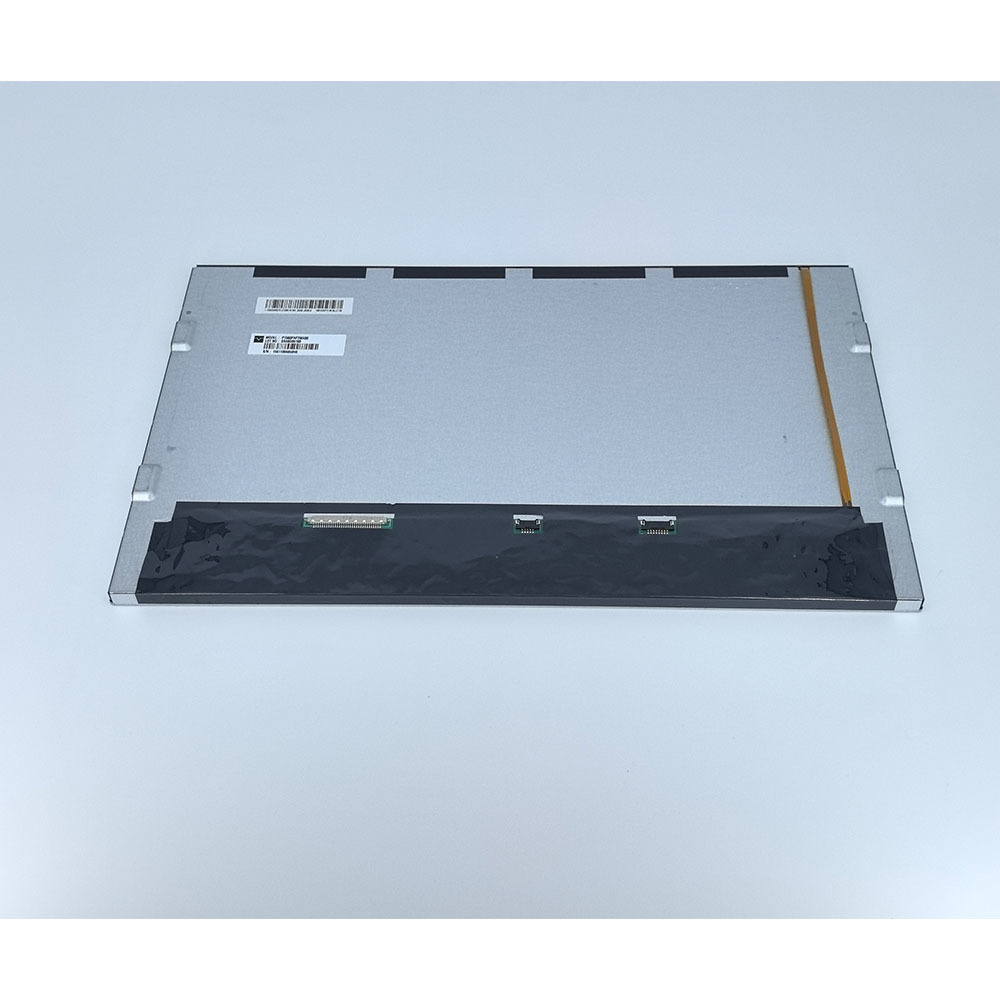

Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Tianma 15.6-Inch FHD 1920x1080 Resolution Industrial TFT Display with LVDS Interface for Medical Use
Specifications
Packaging Details :
8 Pcs/Box
Interface :
LVDS (2 ch, 8-bit), 30 pins Connector
Warranty :
12 Months
Model Number :
P1560FHF2MA00
Display Size :
15.6 inch
Price :
$168/pieces 1-99 pieces
Module Outsize(mm) :
363.8(W)×215.9(H)×9.97(D) mm
Touch Screen :
Without
Delivery Time :
1-3 working days
Brightness :
1000cd/m2
Payment Terms :
L/C,D/A,D/P,T/T
Viewing Angle :
88/88/88/88 (Typ.)(CR≥10)
Place of Origin :
China
Supplier Type :
Original Brand
Brand Name :
Tinama
Panel Type :
a-Si TFT-LCD, LCM
MOQ :
1
Resolution :
1920(RGB)×1080, FHD, 16:9
Application :
Industrial Equipment, Instrument,Kiosks,Medical Equipment
Description
Tianma P1560FHF2MA00 15.6-Inch FHD 1920x1080 Resolution 16:9 Industrial TFT Display with LVDS Interface and WLED Backlight 50,000 Hours

Tianma 15.6-inch 1920×1080 16:9 FHD Industrial TFT Module. This industrial-grade FHD TFT-LCD panel features SFT technology, wide viewing angles, and long-life WLED backlight, making it ideal for industrial control, medical equipment, and digital signage applications.

Key Features
High-Performance Visuals

15.6" FHD resolution (1920×1080) with 1500:1 contrast ratio and 1000 cd/m² brightness, delivering sharp, clear images.

Ultra-Wide Viewing Angle & High Contract Ratio

SFT panel with 88/88/88/88° viewing angle (CR≥10) ensures consistent color and brightness from all directions.

Contract Ratio 1500:1 (Min.) (TM)

Long-Life Backlight

10S6P WLED backlight with built-in driver, rated for 50,000 hours lifespan for reliable industrial use.

Technical Specifications
Manufacturer TIANMA
Model No. P1560FHF2MA00
Screen Size 15.6"
Panel Type a-Si TFT-LCD, LCM
Weight 825 g (Typ.)
Resolution 1920(RGB)×1080, FHD, 16:9
Active Area 344.16(W)×193.59(H) mm
Outline Size 363.8(W)×215.9(H)×9.97(D) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1500:1 (Min.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)
Display Mode SFT, Normally Black, Transmissive
Response Time 35 (Typ.)(Tr+Td) ms
Display Colors 16.7M, 72% NTSC
Power Usage 15.14W (Typ.)
Light Source 10S6P WLED, 50K hrs, With LED Driver
Interface LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage 3.3V (Typ.)
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 85 °C
Application Scenarios
  • Industrial Control & Automation: HMI panels, factory automation displays, and industrial PCs.
  • Medical Equipment: Diagnostic monitors, patient monitoring systems, laboratory instruments, and medical imaging.
  • Digital Signage & Kiosks: Self-service terminals, information kiosks, and public display systems.
  • Gaming & Arcade Cabinets: Industrial-grade displays for arcade machines and gaming terminals.
Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional

Touchscreen integration available as an optional feature.

G+G structure, COB bonding, EXC81W46 touch controller IC, 4.0mm black etched cover glass, AG+AF coating, German WACKER LOCA

About Wan Shujie Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
