High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events
Specifications
Technology :
3LCD Laser
Certification :
ISO，CE， ROHS
Display Technology :
3LCD
Model Number :
MX-12000U
Resolution :
WUXGA
Delivery Time :
7-15days
Contrast :
100000:1
MOQ :
1Pc
Keystone Correction :
Yes
Supply Ability :
15000pcs/monthly
Lens Shift :
Yes
Payment Terms :
T/T
Lenses :
Manual & Motorized
Place of Origin :
China
Light Source :
Laser
Application :
Large Scale Events, Presentations
Brand Name :
SMX
Brightness :
12000 ANSI Lumens
Description


3D Mapping Projector with High Brightness for Large-Scale Events and Professional Presentations

Professional Large Venue Projection Solution


Designed for professional AV applications, this 12,000 ANSI lumens 3LCD laser projector delivers high brightness, WUXGA resolution, and flexible installation for large venues, projection mapping, museums, stages, and conference halls.


12,000 ANSI Lumens
3LCD Technology
WUXGA Resolution
20,000H Laser
Edge Blending
Interchangeable Lens
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events

12,000 ANSI Lumens High Brightness

Powerful 12,000 ANSI lumens of output deliver clear, vivid images on large screens, making the projector ideal for professional indoor venues and large-scale visual applications.

Ideal Applications
  • Auditorium
  • Conference Hall
  • Stage & Events
  • Church
  • Museum
  • Exhibition

3LCD + WUXGA Image Quality

Equipped with 3LCD display technology and native WUXGA 1920×1200 resolution, the projector delivers vivid colors, sharp details, and smooth image performance.

Key Features
  • 3LCD Technology
  • WUXGA 1920×1200
  • 16:10 Aspect Ratio
  • Up to 100,000:1 Contrast Ratio
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events


20,000 Hours Laser Light Source

The laser light source offers up to 20,000 hours of operation, providing stable performance with lower maintenance requirements for professional installations.

  • Long laser life
  • Low maintenance
  • Stable brightness
  • Fast startup
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events


6 Interchangeable Lens Options

Six optional lenses provide flexible installation for different projection distances.

High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events

Flexible Installation

Designed for complex professional projects, the projector supports flexible positioning and image adjustment.

360° Installation
Lens Shift
  • Vertical: +50% / -10%
  • Horizontal: ±20%
Keystone
  • Vertical: ±30°
  • Horizontal: ±30°
Additional Functions
  • 6-Corner Correction
  • Grid ImageTune
  • Pincushion Correction
  • Barrel Correction
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events

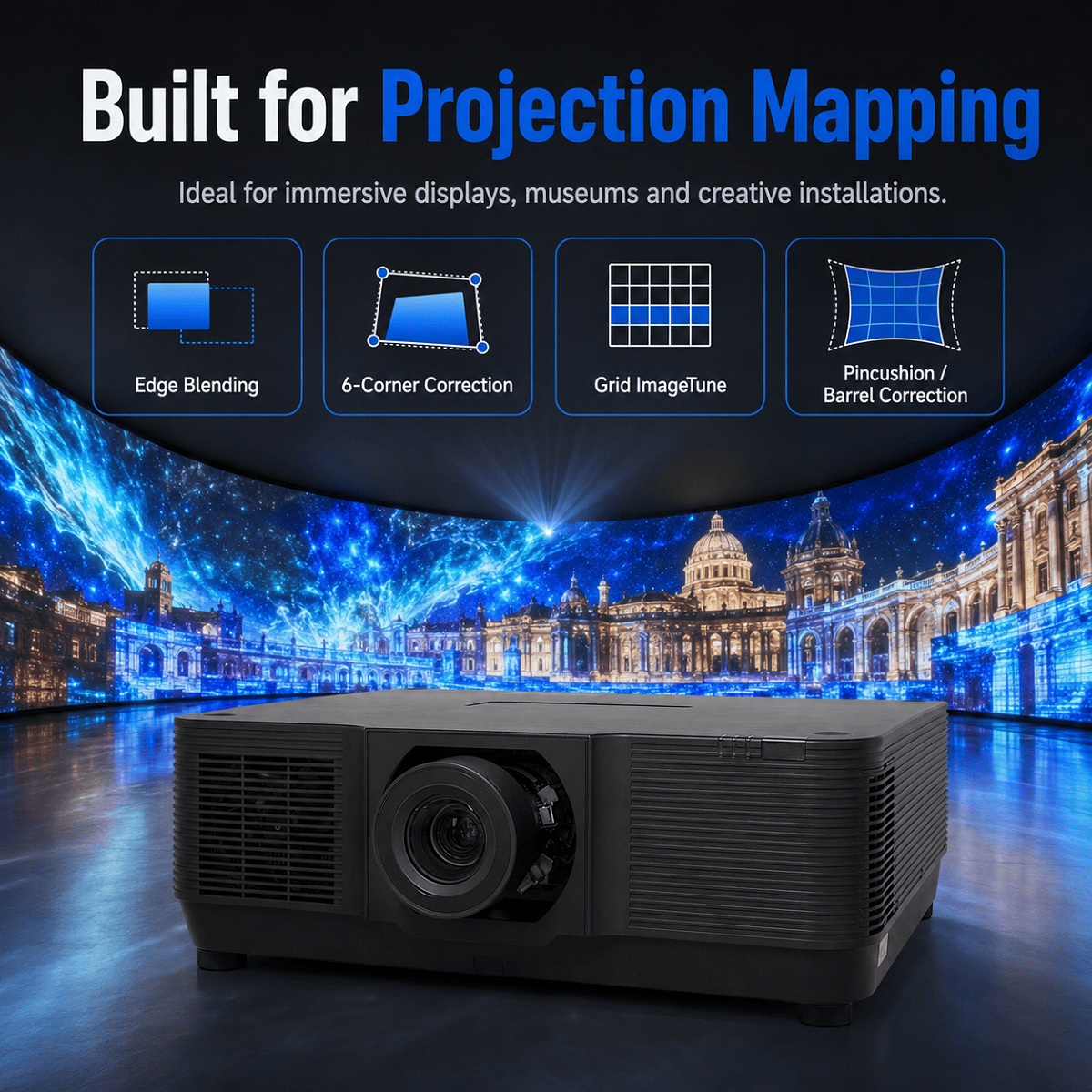

Edge Blending & Projection Mapping

Built-in edge blending and geometry correction make this projector suitable for multi-projector and immersive visual systems.

Perfect Applications
  • Projection Mapping
  • Immersive Exhibition
  • Panoramic Projection
  • Museum Display
  • Digital Art
  • Stage Visuals
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events

Professional Connectivity

A wide range of professional interfaces makes integration with AV systems simple and flexible.

High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events

Multiple Professional Applications

Auditorium
High brightness for large screens and large audiences.
Conference Hall
Clear presentations and professional business displays.
Museum & Exhibition
Suitable for immersive projection and digital exhibitions.
Projection Mapping
Flexible lenses and geometry correction for creative projects.
Stage & Rental
Designed for professional events and temporary installations.
Church
Ideal for large worship spaces and presentation systems.
High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events

Technical Specifications

Model
Model MX-X12000U
Brightness (ANSI Lumens) 12000 lumen
Resolution WUXGA (1920 x 1200)
Light Source Laser
Overall Specifications
Display Panel 3x0.76"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light Source Lifetime - Normal Mode 20000 hrs
Light Source Lifetime - ECO Mode 20000 hrs
Lens Type Zoom Lens
Zoom/Focus Manual
Throw Ratio (16:10) 1.46-2.95
F# (Wide-Tele) F1.7~2.37
f(mm) 24.4-48.6
Zoom Ratio 2
Screen Size 40-500 inch
Weight Approx. 0.8 kg
Lens Shift Vertical +50%, -10%
Lens Shift Horizontal ±20%
Contrast Ratio (Minimum) 100000:1
Noise - Normal (90%) 35dB
Noise - ECO1 (75%) 32dB
Noise - ECO2 (45%) 32dB
Uniformity 80%
Aspect Ratio Native: 16:10, Compatible: 4:3/16:9/normal
Terminal (I/O Port)
Input - VGA *1
Input - HDMI 1.4 (IN) *2
Input - USB-A *1 (5V/1.5A)
Input - USB-B *1 (Display)
Input - RJ45 *1 (Display)
Input - DVI-D *1
Input - HD BaseT *1
Input - HD-SDI (3G-SDI) Optional
Input - Audio in (mini jack, 3.5mm) *1 (VGA/DVI-D share)
Output - VGA *1
Output - HDMI 1.4 (OUT) *1
Output - Audio out (mini-jack, 3.5mm) *1
Control - RS232 *1
Control - RJ45 *1 (Control)
Control - USB-B *1 (For upgrade)
Control - Wired Remote (IN) *1
Control - Wired Remote (OUT) *1
Other Functions
Keystone Correction V: ±30°; H: ±30°
Pincushion/Barrel Correction Yes
6 Corner Geometry Correction Yes
Grid ImageTune Correction Yes
LAN Control - RoomView (Crestron) Yes
LAN Control - AMX Discovery Yes
LAN Control - PJ Link Yes
360° Projection 360° omnibearing installation
Edge Blending Yes

Why Choose This 12,000-ANSI-Lumens Projector?

Rather than focusing only on brightness, this projector provides a complete platform for professional AV installations.

  • 12,000 ANSI Lumens - Powerful brightness for large screens and demanding venues.
  • 3LCD Technology - Vivid and natural color reproduction.
  • WUXGA Resolution - Sharp 1920×1200 image quality.
  • Interchangeable Lenses - Throw ratios from 0.60:1 to 7.02:1.
  • Edge Blending - Designed for multi-projector and panoramic installations.
  • Advanced Geometry Correction - Ideal for irregular projection surfaces.
  • 360° Installation - Greater installation freedom.
  • Professional Interfaces - HDMI, HDBaseT, LAN, RS-232C and more.
  • 20,000-Hour Laser - Long service life with reduced maintenance.

OEM & ODM Projector Solutions

Professional Support for Global AV Partners

We provide OEM and ODM support for distributors, AV integrators, rental companies, and project contractors.

Available Services
  • OEM branding
  • Logo customization
  • Packaging customization
  • Product configuration support
  • Lens selection assistance
  • Projection distance calculation
  • Multi-projector solution design
  • Edge blending project support
  • Technical consultation
  • Project-based product recommendations


For larger installations, our team can assist in selecting the appropriate projector, lens, and installation configuration based on screen size, throw distance, and application environment.

High Brightness 3D Mapping Projector WUXGA 3LCD Laser Lens Shift Large Scale Events

Frequently Asked Questions
What type of applications is this projector suitable for?
It is designed for professional large-venue applications including auditoriums, conference halls, museums, churches, stages, exhibitions, projection mapping, and rental events.
Does the projector support interchangeable lenses?
Yes. Six lens options are available, covering throw ratios from approximately 0.60:1 to 7.02:1.
Can it be used for projection mapping?
Yes. High brightness, edge blending, geometry correction, and multiple lens options make it suitable for professional projection mapping projects.
Does it support edge blending?
Yes. Edge blending is available for multi-projector panoramic and immersive projection systems.
Can the projector be installed vertically or at different angles?
Yes. It supports 360° installation, offering greater flexibility for creative and complex installations.
Does it support HDBaseT?
Yes. HDBaseT is available for long-distance professional AV signal transmission.
What is the laser light source life?
The laser light source is rated for up to approximately 20,000 hours, depending on operating conditions and settings.
Do you provide OEM and ODM services?
Yes. OEM/ODM services and project solution support are available for distributors, integrators, and professional AV customers.

Professional Projection Solution for Your Project

The 12,000 ANSI lumens 3LCD laser projector combines high brightness, flexible lens options, edge blending, and professional installation features for demanding commercial projects.

Need help choosing the right lens?

Send us your: Screen Size + Projection Distance + Application

We can recommend the suitable projector and lens configuration for your project.

Contact Us for Project Pricing & Technical Support
