25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
Specifications
Technology :
3LCD Dual-Color Laser
Brand Name :
SMX
Display Technology :
3LCD
Model Number :
MX-X25000U
Keystone Correction :
Yes
MOQ :
1Pc
Packaging Details :
Carton/Flight Case
Light Source :
Dual-Color Laser
Supply Ability :
15000pcs/monthly
Resolution :
WUXGA
Brightness :
25000 Lumens
Payment Terms :
T/T
Delivery Time :
7-15days
Control :
Remote
Place of Origin :
China
Lens Shift :
Yes
Certification :
ISO，CE，RoHS
Lenses :
Rechangeable Motorized Lenses
Application :
Cultural Tourism, 3D Projection Mapping
Description

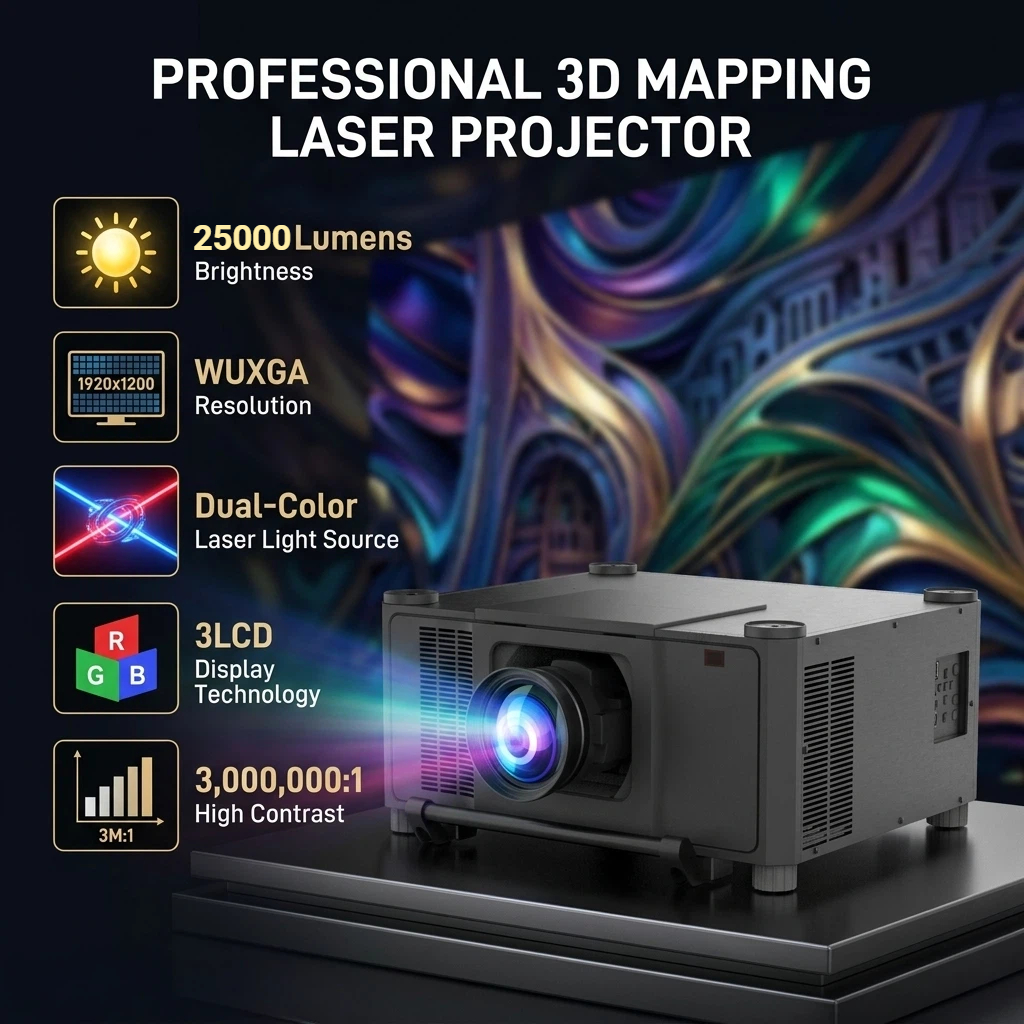

SMX MX-X25000U 25,000 Lumens WUXGA 3LCD Dual-Color Laser Projector


Engineered for large-scale engineering applications, cultural tourism night tours, and high-impact 3D projection mapping. Powered by advanced 3LCD dual-color laser technology to deliver high brightness without compromising rich color saturation.


Brightness: 25,000 ANSI Lumens
Light Engine: Dual-Color Laser + 3LCD
Native Resolution: WUXGA (1920x1200)


Contrast Ratio: 5,000,000:1 (Dynamic)
Light Source Life: 20,000 - 30,000 Hours
Lens Support: Motorized Interchangeable


25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display




Key Features & Performance Highlights

Dual-Color Laser (Red & Blue) Optical Architecture

By combining red and blue laser light sources with 3LCD projection technology, the MX-X25000U significantly enhances red color reproduction and overall color gamut coverage. It overcomes the color degradation common in high-brightness projection, ensuring stunningly vibrant visual experiences.

25,000 ANSI Lumens Extreme Output

Designed to perform in high ambient light environments and over extended throw distances. Ideal for outdoor facades, massive indoor auditoriums, and arena-scale installations that require uncompromised clarity and punch.

Built-in Geometry Correction & Edge Blending

Supports multi-channel edge blending, corner keystone correction, and curved surface adjustment. Enables effortless, seamless multi-projector stitching across spherical, cylindrical, or irregular projection surfaces.

Dust-Resistant Optical Engine & 360-Degree Installation

Equipped with a sealed optical system designed for IP5X dust protection, extending maintenance intervals. Flexible 360-degree installation allows portrait mode and ceiling or floor setups for complex creative layouts.

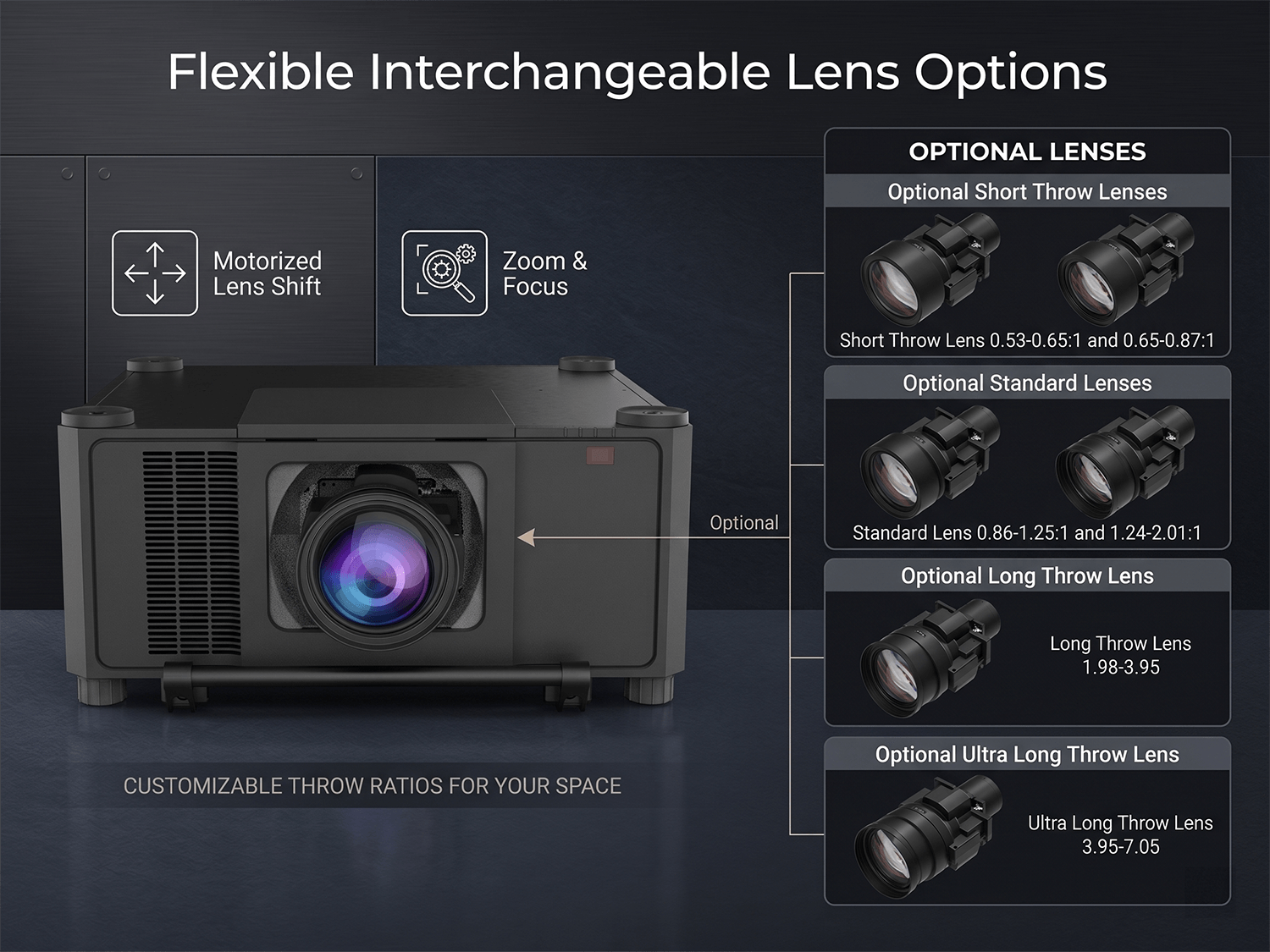

Rechangeable Lenses


25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display



Technical Specifications

Parameter Specification Details
Model SMX MX-X25000U
Display Technology 3LCD (3 x 0.76" Inorganic LCD Panels)
Light Source Dual-Color Laser (Red & Blue Diodes)
Brightness 25,000 ANSI Lumens
Native Resolution WUXGA (1920 x 1200 pixels, 16:10)
Dynamic Contrast Ratio 5,000,000:1
Light Source Life 20,000 Hours (Standard) / 30,000 Hours (Eco Mode)
Lens Shift Motorized Vertical ±60%, Horizontal ±30%
Inputs & Connectivity HDMI x 2, DisplayPort x 1, 3G-SDI in/out, DVI-D, HDBaseT, LAN (RJ45), RS-232C
Operating Mode 360-Degree Free Orientation, Portrait Mode Supported

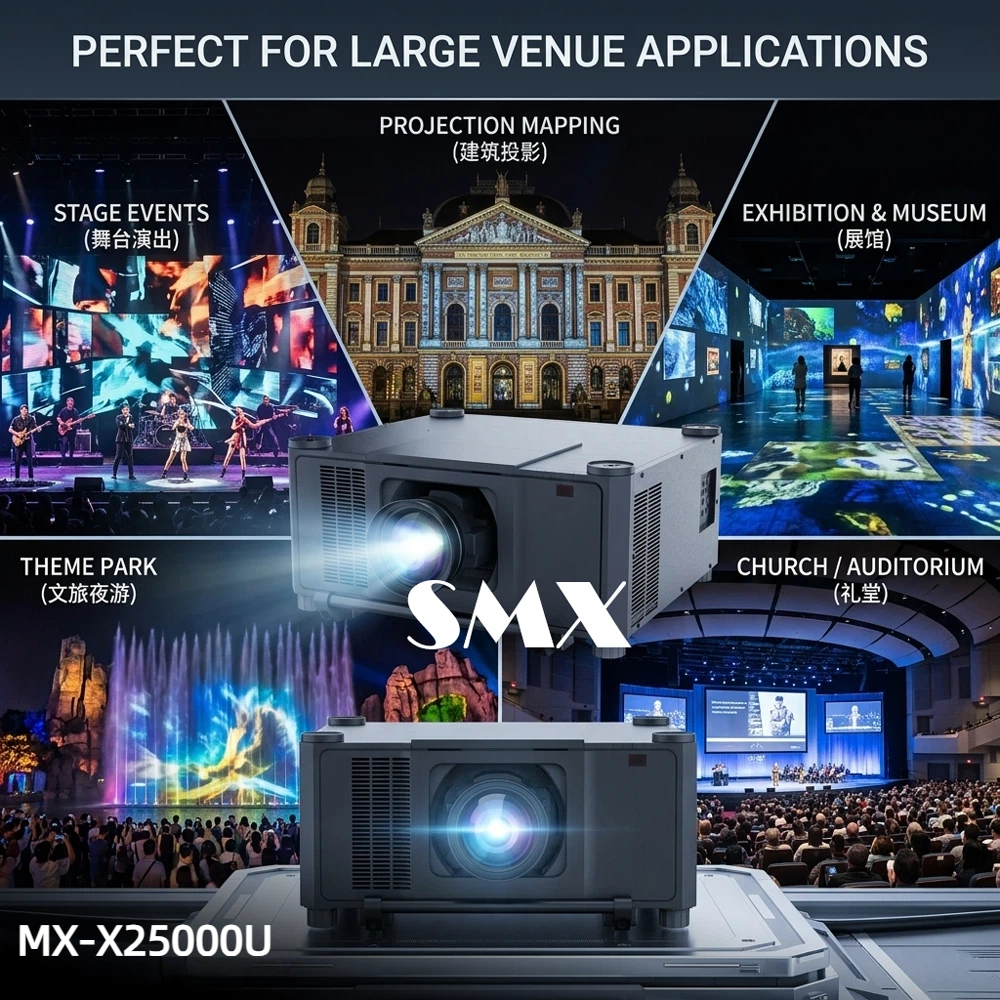

Target Engineering Applications

  • Outdoor Building & Architectural Mapping: High-power output capable of illuminating complex facade structures.
  • Cultural Tourism Nighttime Shows: Rich red color fidelity ensures realistic projections for theme parks and outdoor cultural displays.
  • Large Auditoriums & Convention Centers: Delivers sharp text and vibrant visuals across large format screens.
  • Immersive Museums & Digital Art Spaces: Seamless edge-blending creates fully immersive multi-channel wall and floor projection environments.


25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display


Partnering with SMX Projector

As an original projector manufacturer, SMX provides direct factory prices, OEM/ODM customization options, optional interchangeable lenses, and custom flight cases for commercial and engineering system integrators worldwide.
