Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Specifications
Certification :
ISO，CE，RoHS
Display Technology :
3LCD
Model Number :
MX-X25000U
Light Source :
Dual-Color Laser
MOQ :
1Pc
Packaging Details :
Carton/Flight Case
Resolution :
WUXGA
Control :
Remote
Supply Ability :
15000pcs/monthly
Lenses :
Rechangeable Motorized Lenses
Application :
Outdoor Mapping, Stadium Shows, Cultural Tourism
Payment Terms :
T/T
Keystone Correction :
Yes
Delivery Time :
7-15days
Lens Shift :
Yes
Technology :
3LCD Dual-Color Laser
Place of Origin :
China
Contrast :
5,000,000:1
Brand Name :
SMX
Brightness :
25000 Lumens
Install :
360° Installation
Description

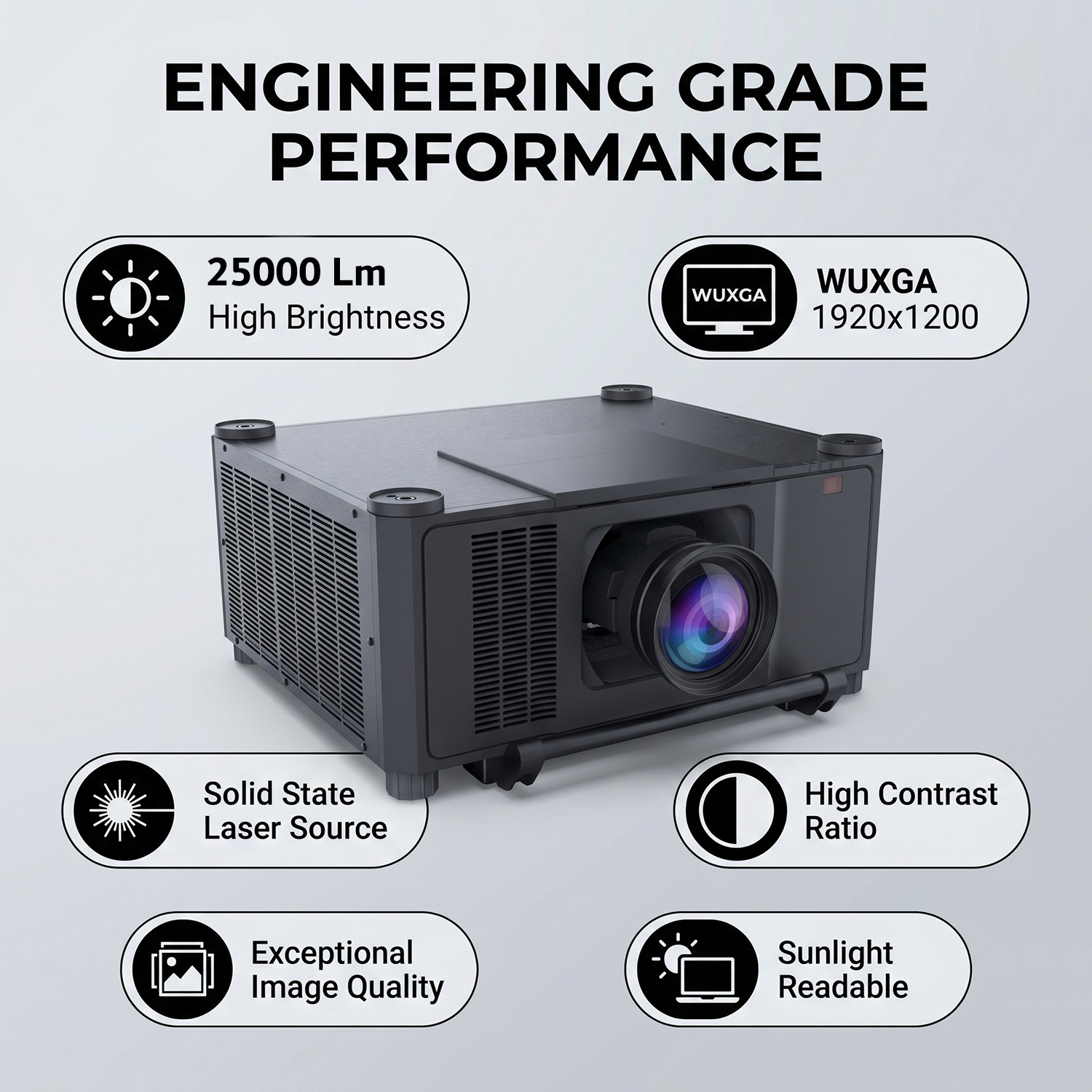

3D Mapping Projector 25000 Lumens WUXGA 3LCD Dual Color Laser
Professional Projection Solution for High-Impact Applications
Designed for high-impact outdoor architectural projection mapping, massive stadium shows, and immersive cultural tourism displays, the SMX 25,000 Lumens 3LCD Dual-Color Laser Projector represents the absolute pinnacle of professional engineering optics.
Combining an extraordinary 25,000 ISO Lumens output with advanced Dual-Color Solid-State Laser diodes and a 3-chip 3LCD optical prism, this flagship engine breaks through intense ambient lighting while delivering ultra-saturated, color-accurate WUXGA graphics. Engineered for non-stop 24/7 continuous operation, it comes complete with a versatile suite of motorized bayonet lenses to overcome any complex architectural installation challenge.
Key Specifications:
  • Brightness: 25,000 ANSI Lumens
  • Light Source: Dual-Color Laser (Red & Blue) + 3LCD Optics
  • Native Resolution: WUXGA (1920 × 1200), 16:10
  • Dynamic Contrast Ratio: 5,000,000:1
  • Light Source Life: 20,000 Hours (Normal) / 30,000 Hours (Eco)
  • Lens Options: Fully Motorized Interchangeable Lenses (Optional)
Request Factory Quote Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection

Technical Specifications
Performance / Metric Flagship Engineering Specifications
Luminous Brightness 25,000 ISO / ANSI Lumens (Calibrated High-Output)
Light Source Technology Dual-Color (Red & Blue) Solid-State Laser Array
Imaging Technology 3-Chip 3LCD Optical Prism Alignment
Native Resolution WUXGA (1920 X 1200) with 16:10 Native Aspect Ratio
Color Light Output (CLO) 100% Equal Color & White Brightness
Optical Engine Structure IP5X Sealed Dust-Proof Optics (Filter-Free Design)
Light Source Lifespan 20,000+ Hours (Zero Lamp Consumables)
Built-in Processors Hardware Multi-Point Edge Blending & Geometric Warping
Lens Options Fully Motorized Quick-Release Bayonet Lenses (0.53:1 to 7.51:1)

Core Engineering & Visual Advantages
1. Dual-Color Laser Engine: Superior Gamut at 25,000 Lumens
Traditional ultra-high-brightness projectors often sacrifice color saturation to boost white lumens, resulting in dull, greenish tones. By combining Red and Blue laser diodes, our 25,000-lumen platform vastly expands the color gamut spectrum. Coupled with 3-chip 3LCD technology, it outputs 100% Equal Color Brightness, producing deep reds, natural skin tones, and rich vibrant hues on massive building facades.

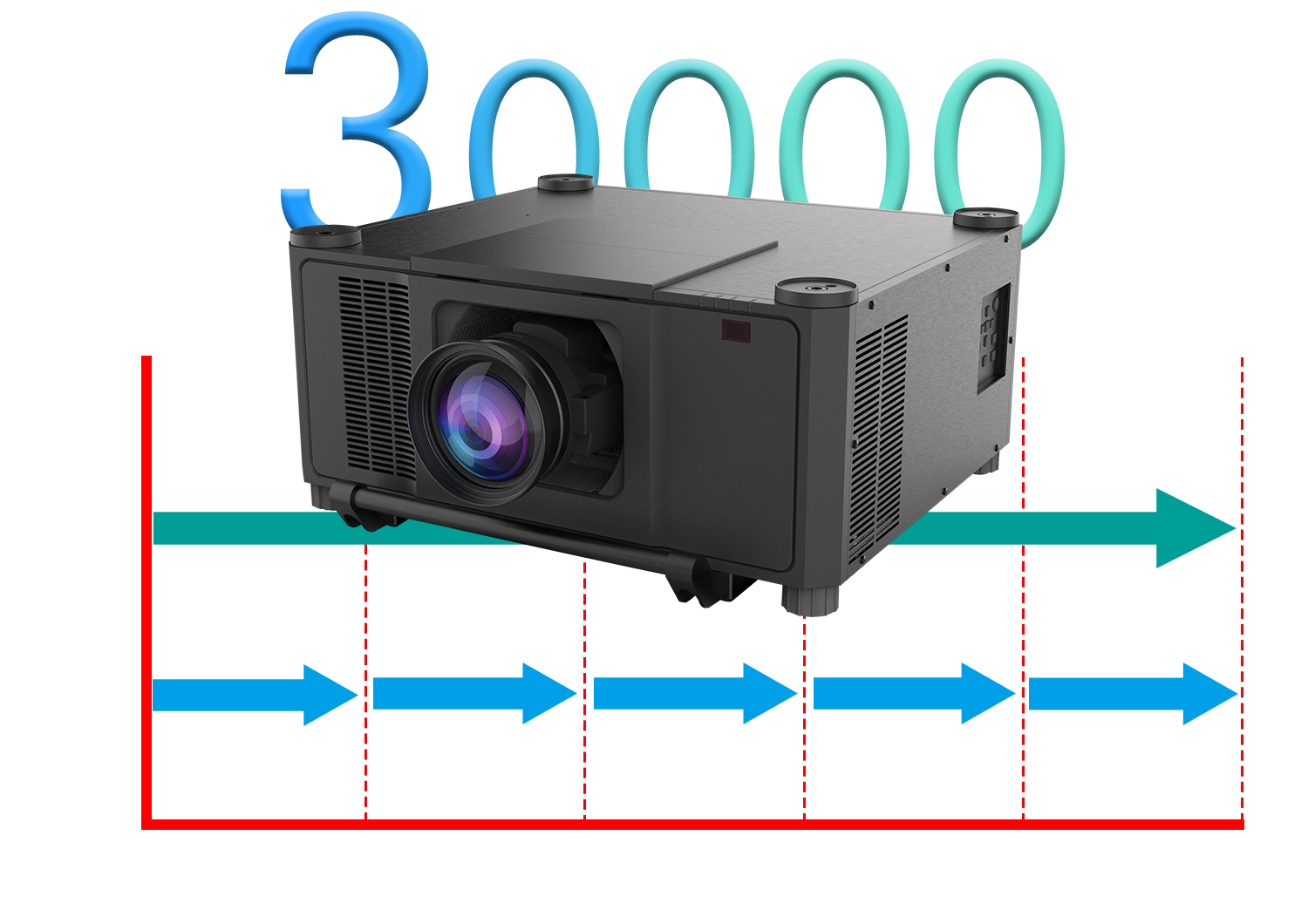

2. Laser Light Source Technology
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection

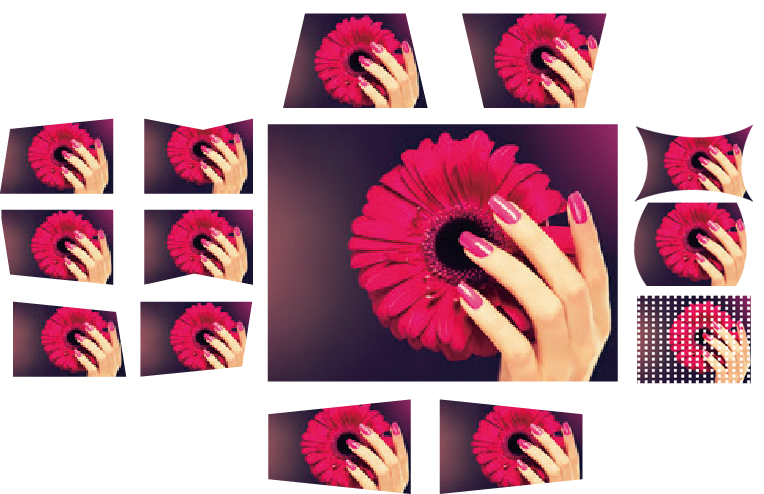

3. Built-in Multi-Projector Edge Blending & Geometric Warping
Executing complex 3D Mapping on curved surfaces, spheres, or irregular architectural landmarks requires precise optical warping. This projector features industrial-grade hardware-level Edge Blending and Geometry Correction built into the firmware. System integrators can seamlessly blend multiple 25,000-lumen streams into a single seamless canvas without needing high-latency external video processors.
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection

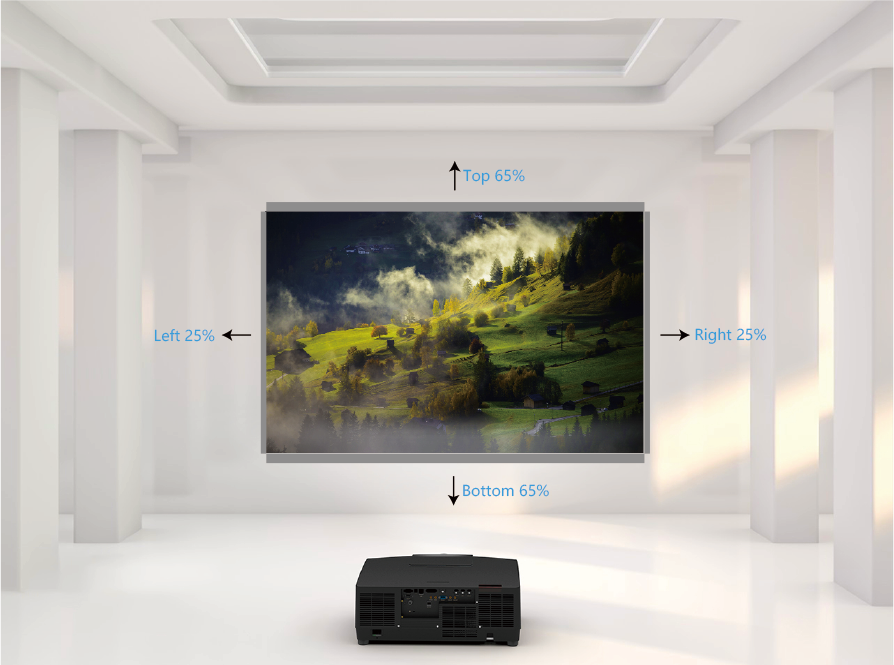

4. Lens Shift with Motorized Lenses for Easy Image Positioning
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection

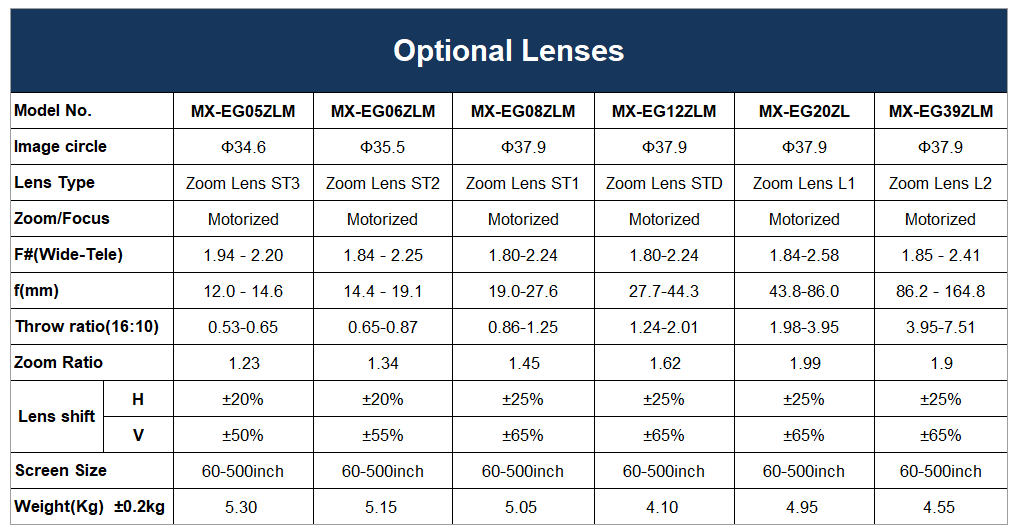

5. Interchangeable Motorized Lens Suite for Installation Freedom
No two outdoor venues share the same throw parameters. SMX supports this 25,000-lumen platform with a dynamic suite of interchangeable motorized lenses, ranging from 0.53:1 short-throw options up to 7.51:1 long-throw telephoto optics. Full motorized Zoom, Focus, and extended Vertical/Horizontal Lens Shift can be fine-tuned remotely via network commands.
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
6. IP5X Fully Sealed Optical Engine: 24/7 Heavy-Duty Reliability
Outdoor projection mapping environments subject hardware to dust, humidity, and temperature spikes. The optical block and laser diode modules are encased in an IP5X dust-proof sealed structure. This prevents dust accumulation on internal LCD panels, eliminates filter cleanings, and ensures consistent brightness over a 20,000-hour operational lifespan.

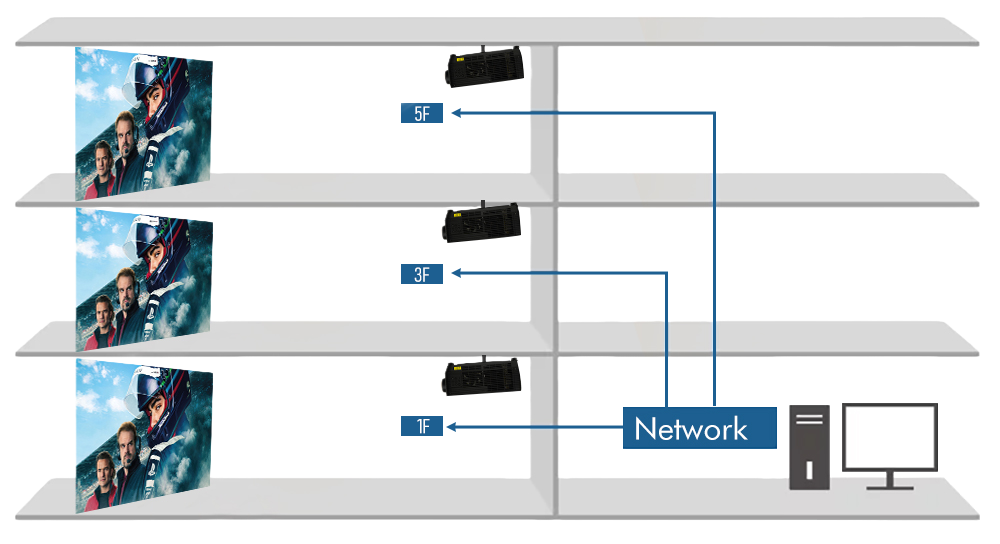

7. Advanced LAN Control System
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Target Engineering Applications
  • 3D Architectural Projection Mapping: Transforming historical building facades, castles, and towers into dynamic night-tour art canvases
  • Stadiums & Arenas: Filling massive sports arena floors and opening ceremony stages with daylight-busting visuals
  • Immersive Cultural Museums & Dome Theaters: Creating seamless 360-degree panoramic rooms without visible pixel gaps or color falloff
  • Staging Rentals & Live Concert Tours: Built with heavy-duty rigging frames for swift load-ins, uncompromised stability, and 360° flexible tilting orientations
Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
Frequently Asked Questions
Q1: How does dual-color laser technology differ from standard single-blue laser setups?
Single-blue laser setups use a blue diode with a phosphor wheel to generate red and green light, often resulting in weak red color performance. Dual-color laser setups add a dedicated red laser diode array, significantly boosting color depth, color brightness, and DCI-P3 color gamut coverage at ultra-high lumen levels.
Q2: Does this 25,000-lumen projector support remote IT monitoring for large venue setups?
Yes. Fully compatible with PJLink, Crestron RoomView, and AMX control protocols, AV managers can monitor thermal profiles, shutter status, and laser bank health across dozens of networked units from a centralized control console.

Why Partner with SMX Projector?

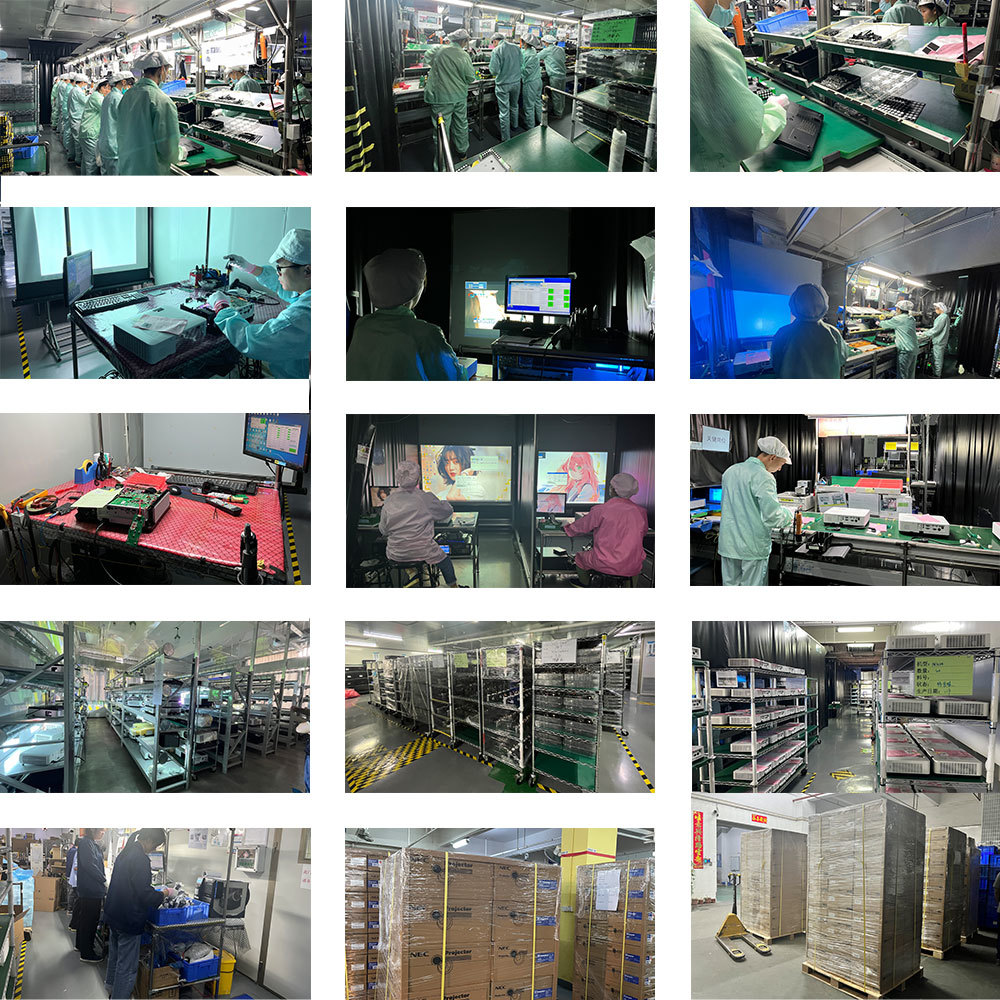

  • Direct Factory Manufacturer: Commercial and large-venue projection technology provider
  • OEM & ODM Solutions: Customizable chassis branding, firmware UI, lens bundles, and specialized shipping cases for global partners
  • Rigorous Quality Control: Fully sealed optical engine design ensuring IP5X dust protection and stable 24/7 continuous operation
  • Global Technical Support: Engineering documentation, throw distance calculators, and comprehensive warranty support
Ready to Upgrade Your Large Venue Projection Project?
Contact our engineering team today to receive a customized projection distance calculation, full optical datasheet, or competitive factory quote.
Contact Us Stadium Show 25000 Lumens WUXGA 3D Mapping Projector Dual Color Laser Outdoor Projection
