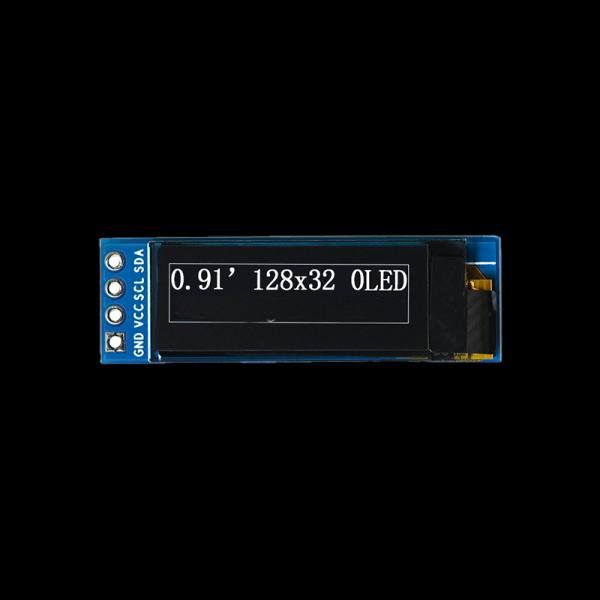

0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
0.91-inch OLED Display 128x32 LCD Serial Interface Screen I²C Interface SSD1306 128x32 OLED,segment lcd display,segment lcd
Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Dimensions :
12 × 38 (mm)
Material :
PMOLED
Resolution :
128*32
Interface Type :
IIC Interface
Operating Voltage :
3.3V
Control Chip :
SSD 1306
Display Colors :
White, Blue, Yellow
Display Area :
22.384X5.584 Module
Pixel Pitch :
0.175 × 0.175 (mm)
Pixel Size :
0.159 × 0.159 (mm)
Pin Count :
4 (single-row header with 2.54mm pitch)
Viewing Angle :
Full-angle
Operating Temperature :
-40°C to 70°C
Description

Module Interface Definition

Serial Number Symbol Functional Description
1 GND Power Ground
2 VCC Power Supply +3.3V
3 SCL IIC Clock Line
4 SDA IIC Data Line
