Specifications
MOQ :
First purchase, no purchase quantity limit
Price :
Prices are set based on design and quantity
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity
Dimensions :
0.95 inches
Material :
High-brightness PM OLED
Resolution :
96(RGB)X64
Control Chip :
SSD1331Z
Brightness Adjustment :
Supports software brightness adjustment
Display Colors :
Full color
Display Area :
20.135(W)X13.42(H)(mm)
Panel Size :
25.7X22.2X1.28(mm)
PCB Size :
27.3X30.7(mm)
Interface Type :
SPI
Pixel Size :
0.05X0.19(mm)
Pixel Pitch :
0.07X0.21(mm)
Pin Count :
7
Connection Method :
2.54mm pitch single-row header
Viewing Angle :
Full viewing angle
Operating Voltage :
3.3V
Operating Temperature :
-40~70°C
Description

1.Interface Definition

Serial Number Symbol Meaning
1 GND Power Ground
2 VCC Power Supply Positive 3.3V
3 SCL SPI Clock Line
4 SDA SPI Data Line
5 RES OLED Display Reset Pin (Requires one reset after power-up)
6 DC Data/Command Control Pin
7 CS Chip Select (Active Low, Must Not Float)

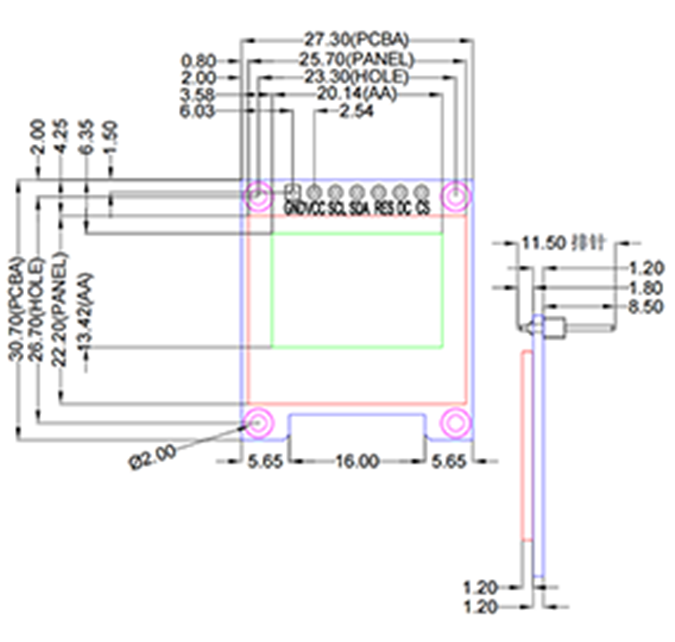

2.Structural Drawings
