Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Dimensions :
1.45 inches
Material :
High-brightness PMOLED
Resolution :
160 (RGB) x 128
Control Chip :
SSD1333
Display Colors :
Full Color
Display Area :
28.78 x 23.024 mm
Panel Dimensions :
35.80 x 30.80 x 1.60 mm
Interface Type :
8-bit 68XX/80XX Parallel, 4-wire SPI, I²C
Pixel Size :
0.04 x 0.164 mm (mm)
Pixel Pitch :
0.06 x 0.18 (mm)
Connection Method :
Plug-in (0.5mm pitch 30-pin top-mount FPC socket)
Viewing Angle :
Full Viewing Angle
Description

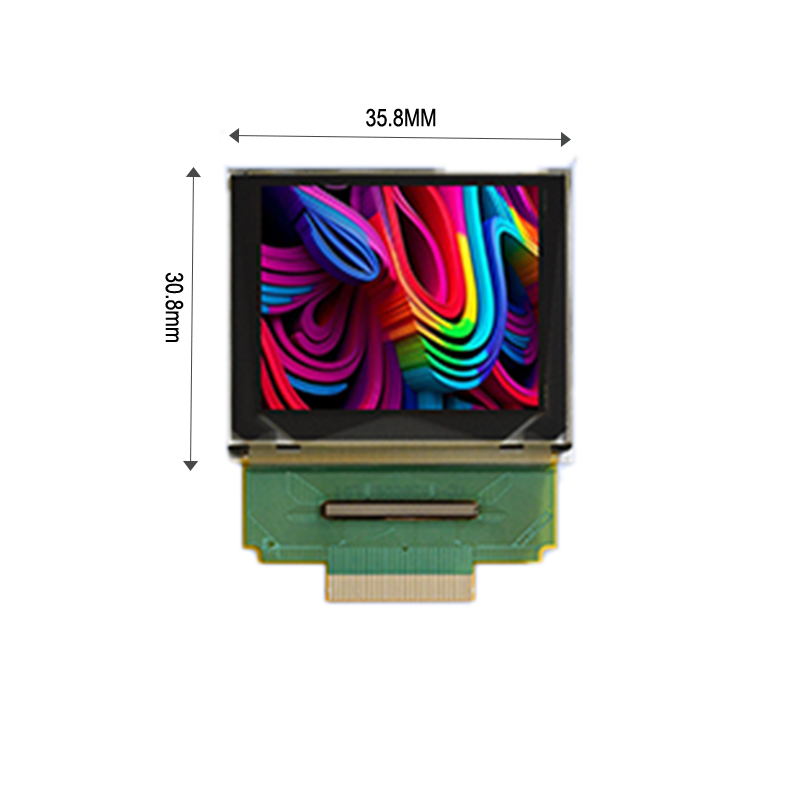

1.45-inch color OLED display

1.45-inch 160x128 OLED Display Full-Color OLED Display Color Display SSD1333 Driver,segment lcd display,segment lcd

Interface Definition

Pin Symbol Pin Symbol
1 NC 16 BS1
2 VLSS 17 BS2
3 VSL 18 CS#
4 SCOMH 19 D/C#
5 VCC 20 RES#
6 D7 21 FR
7 D6 22 VDD
8 D5 23 VSS
9 D4 24 IREF
10 D3 25 VCC
11 D2 26 VP
12 D1 27 VCOMH
13 D0 28 VSL
14 E(RD#) 29 VLSS
15 R/W#(WR#) 30 NC
