4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions
Specifications
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Display area :
95.04 (W) x 53.86 (H)
Backlight type :
8 LEDs in series
Delivery Time :
4~6 Working Days
Interface type :
RGB888/666/565
Operating Temperature :
-20 to 70°C
Viewing Angle :
Full viewing angle
Place of Origin :
China
Material :
TFT LCD
Brand Name :
ORIENTRONIC
Size :
4.3-inch IPS display
Supply Ability :
Design based on the product

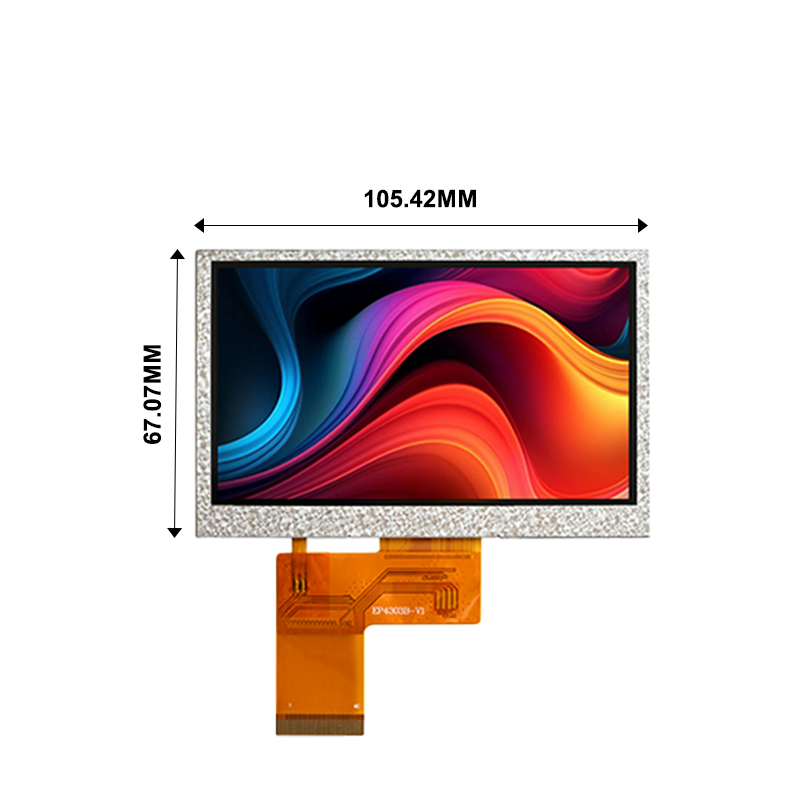

Bare panel dimensions :
Without touch (105.42 (W) x 67.07 (H) x 3.0 (T) mm), Resistive touch (105.42 (W) x 67.07 (H) x 4.2 (T) mm), Capacitive touch (105.42 (W) x 67.07 (H) x 4.2 (T) mm)
Storage Temperature :
-30 to 80°C
MOQ :
First purchase, no purchase quantity limit.
Resolution :
480 (RGB) x 272; display orientation is adjustable, supporting both landscape and portrait modes
Price :
Prices are set based on design and quantity.
Control chip :
NV3047
Supply Voltage :
5V (default 5V; if 3.3V is required, please refer to the specifications for modification)
Packaging Details :
Prices are set based on design and quantity.
Touch type :
Three options available: no touch, resistive touch, capacitive touch (5-point touch)
Current :
30mA
Description

4.3-inch color TFT screen size

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

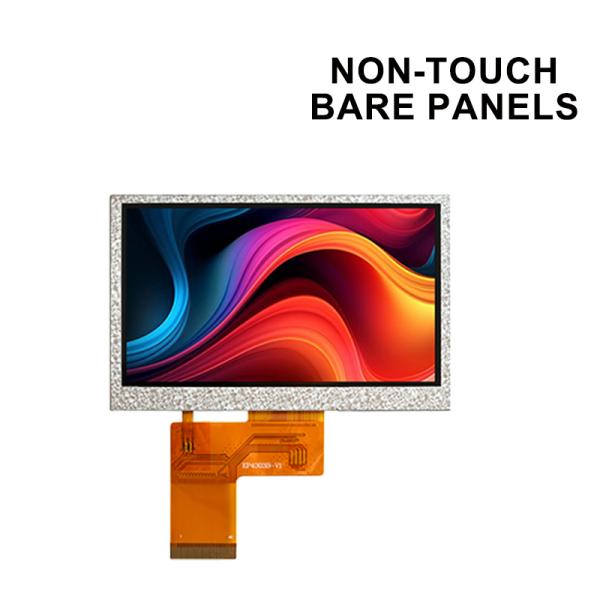

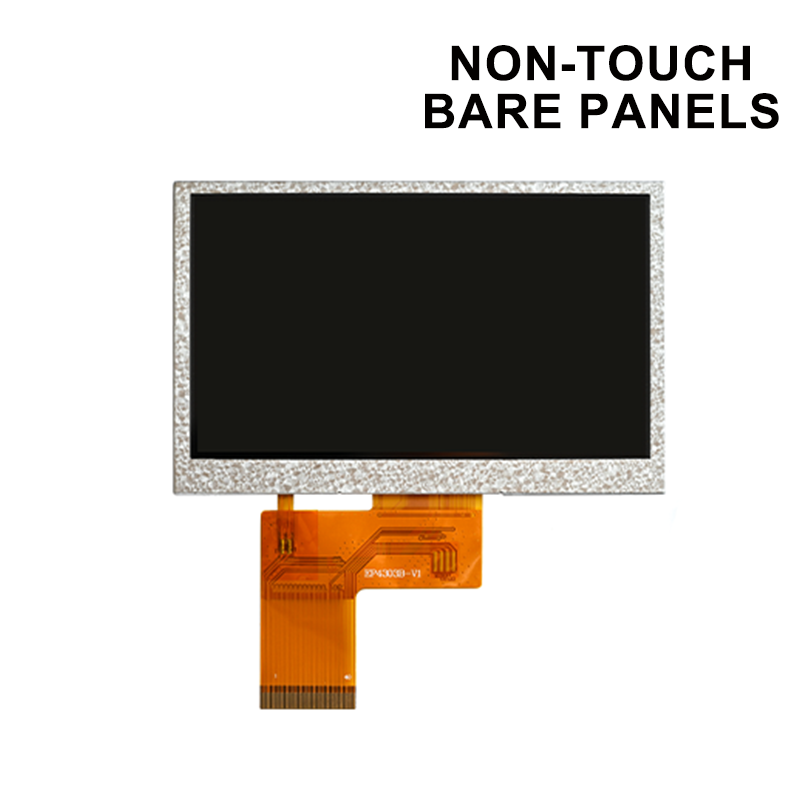

4.3-inch Non-Touch Bare Panel Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

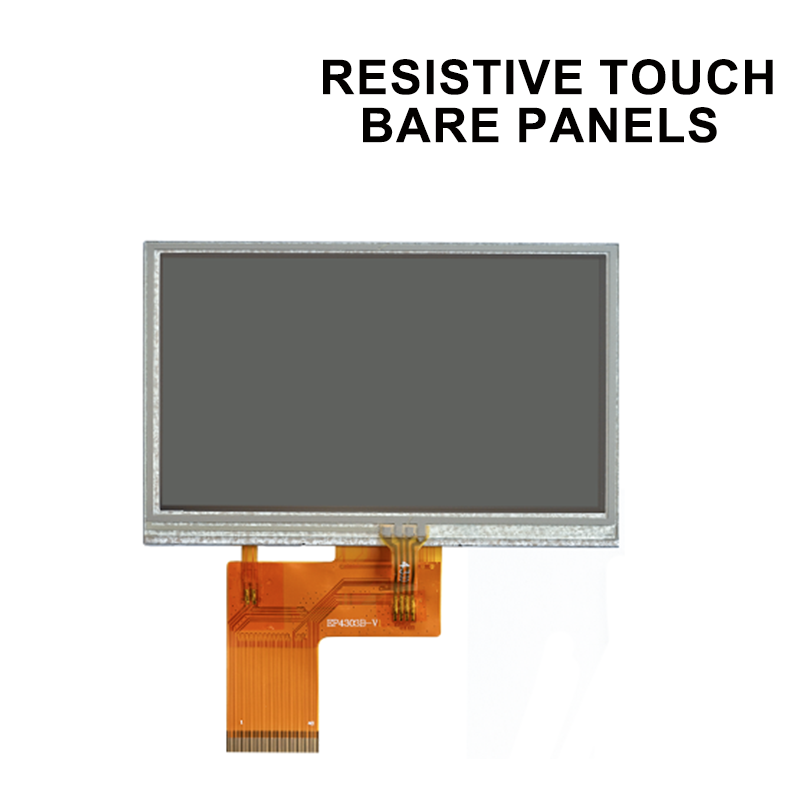

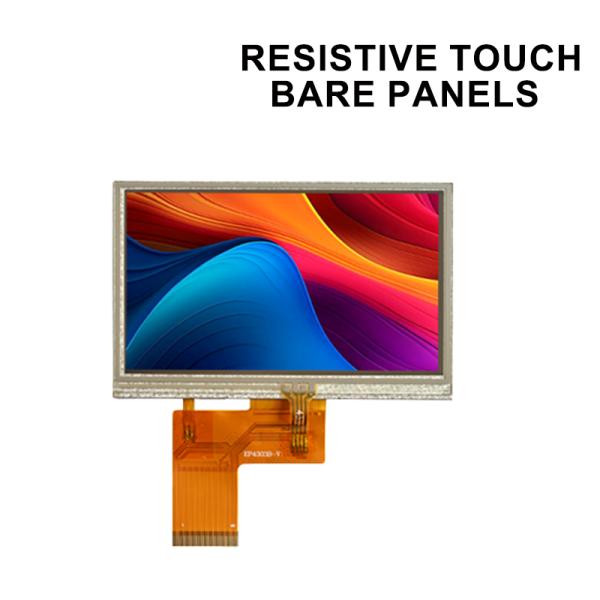

4.3-inch Resistive Touch Bare Panel Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

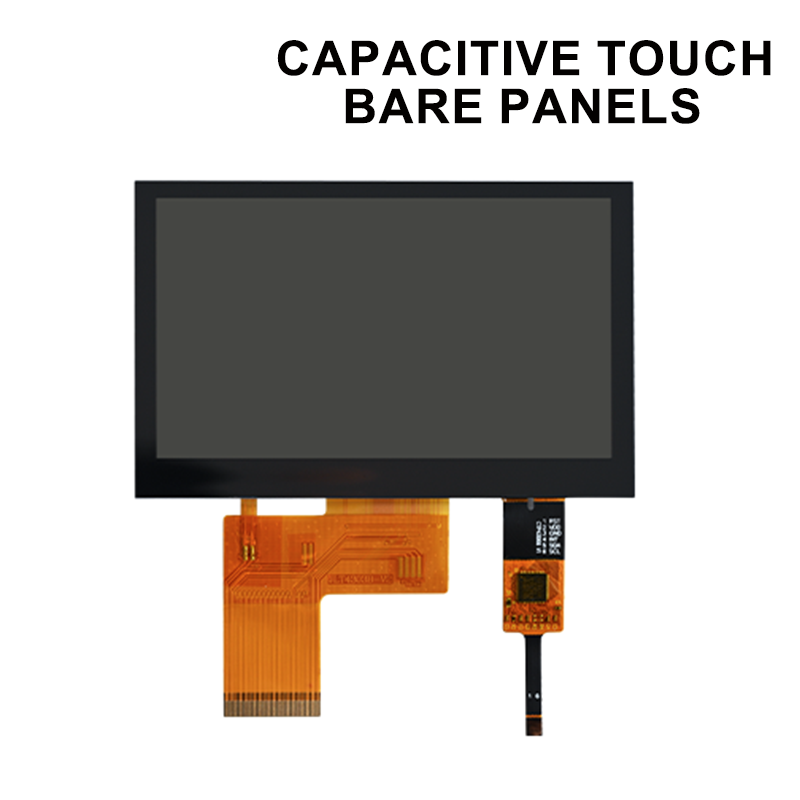

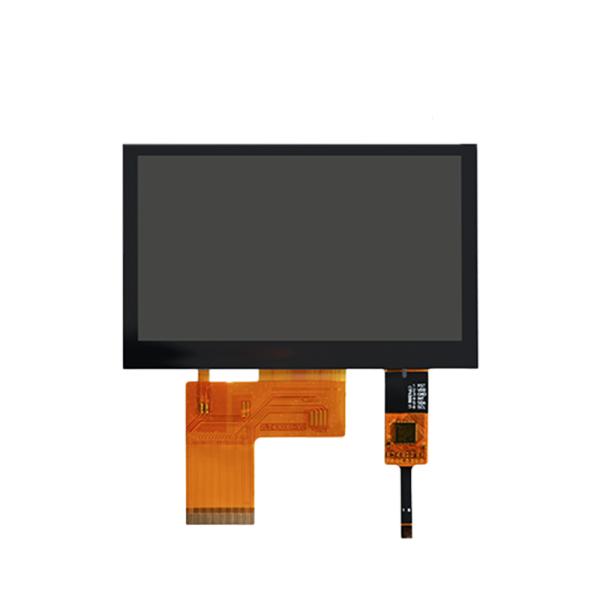

4.3-inch Capacitive Touch Bare Panel Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display (bare panel), available in non-touch or touchscreen versions

4.3-inch bare display interface definition

Item No Bare Screen (Non-Touch) Resistive Touch Bare Screen Capacitive Touch Bare Screen Display Interface Capacitive Touch Bare Screen Touch Interface
1 LED- LED- LED- Pin1-RST
2 LED+ LED+ LED+ Pin2-VCC
3 GND GND GND Pin3-GND
4 VDD VDD VDD Pin4-INT
5-12 R0-R7 RO-R7 R0-R7 Pin5-SDA
13-20 G0-G7 G0-G7 G0-G7 Pin6-SCL
21-28 B0-B7 B0-B7 B0-B7
29 GND GND GND
30 DCLK DCLK DCLK
31 DISP DISP DISP
32 HSYNC HSYNC HSYNC
33 VSYNC VSYNC VSYNC
34 DE DE DE
35 NC NC CN
36 GND GND GND
37 NC X1(XR) NC
38 NC Y1(YD) NC
39 NC X2(XL) NC
40 NC Y2(YU) NC
