Specifications
Brand Name :
Junxian or Customizable
Model Number :
JM12232B
Certification :
ROHS,GB/T19001-2016/IS09001:2015
Place of Origin :
Shenzhen,China
MOQ :
5 sets
Price :
Negotiable
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
200000 pieces per month
Delivery Time :
1-4 weeks
Packaging Details :
Standard Exportation Package
Name :
Graphic LCD Display
Driving voltage :
5V
Resolution :
122×32 Pixels
LCD Size :
84.0x44.0x14.0mm
Visual Area :
60.0x18.0mm
Control driver :
SBN1661G
Surface Luminance :
190cd
Touch Screen: :
Without Touch Screen (Customizable)
Display Color :
blue/yellow-green
Backlight :
LED white light/yellow-green
LED Lifetime :
40,000 hours
Description

1.5 inch Monochrome LCD Module – High-Performance Display Solution

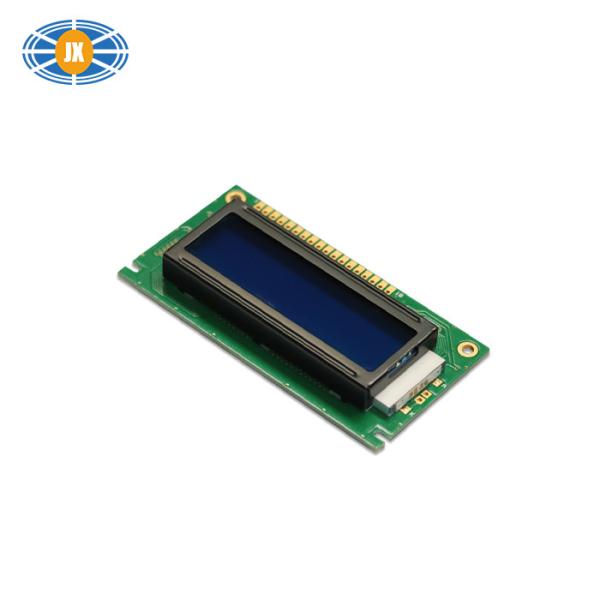

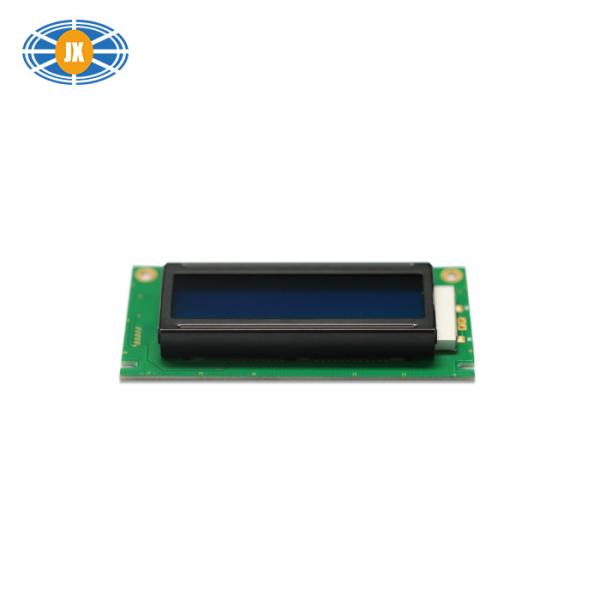

Designed for reliability and versatility, the JM12232B-GSBLWNB5 is a 122×32 dot-matrix monochrome LCD module ideal for industrial, medical, and embedded applications. Built with a STN (Blue) transmissive/negative LCD type, it delivers sharp contrast and clear visibility with a 6 o’clock viewing direction. The module supports multiple backlight configurations to suit diverse needs:

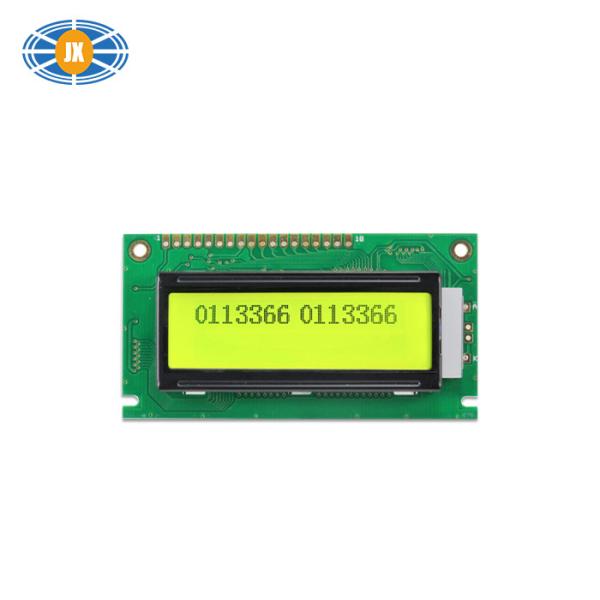

Yellow-green LED backlight for high-visibility black text on a vibrant yellow-green background.

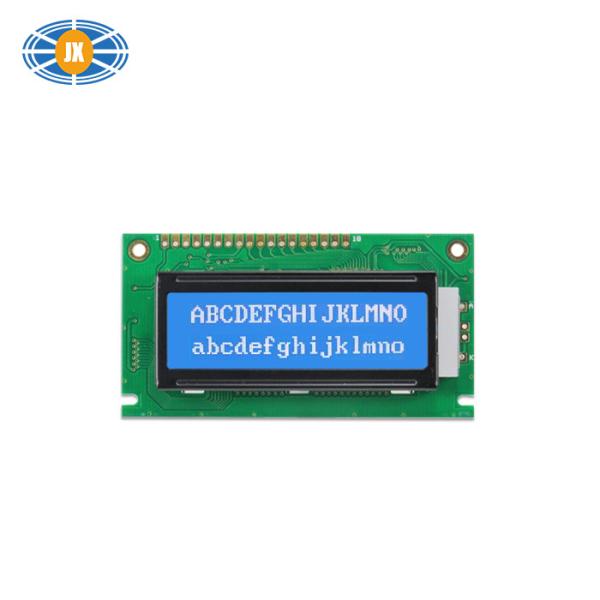

White LED backlight enabling crisp white text on a blue background or black text on a neutral gray background.

1. Product Features and Advantages

(1) Core Features:

High contrast ratio for clear readability in various lighting conditions.

Flexible backlight options for customizable display aesthetics.

Rugged mechanical design with grounded metal frames and ESD protection.

Low power consumption, suitable for battery-powered devices.

This module combines durability, ease of integration, and visual flexibility, making it an optimal choice for applications requiring reliable monochrome display performance.

(2) Key Specifications:

Display Technology: 1/32 duty, 1/5 bias, with a driver voltage (Vop) of 4.7V and logic supply (VDD) of 5.0V.

Physical Dimensions: Compact 84.0×44.0×14.0mm outline, featuring a 60.0×18.0mm viewing area and 0.40×0.45mm dot size.

Electrical Range: Operates at -20°C to 70°C (storage: -30°C to 80°C), with robust voltage tolerance (VDD: 4.5–5.5V).

Interface: Compatible with 6800/8080 series microcontrollers, using an 8-bit parallel data bus (DB0–DB7) for seamless integration.

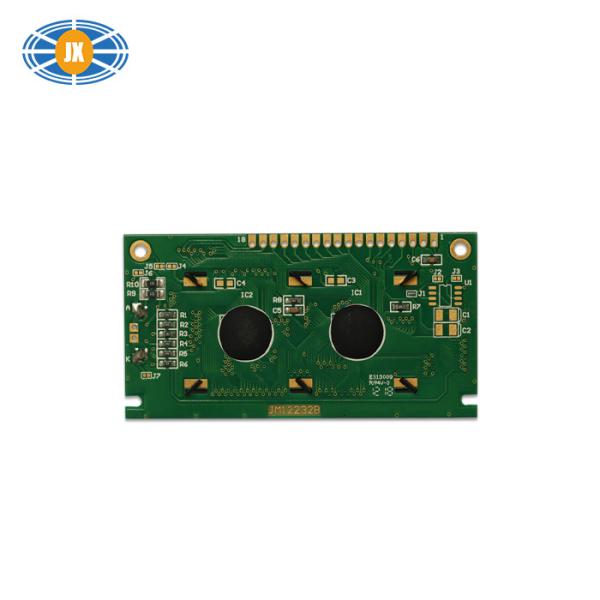

Driver IC: Powered by the SBN1661G, ensuring stable performance and low power consumption (backlight: 40mA at 5.0V).

2. Product technical parameters
Keywords: 1.5-inch monochrome LCD screen
Resolution: 122×32 Pixels
LCD Size: 84.0x44.0x14.0mm
Visual Area: 60.0x18.0mm
Control driver: SBN1661G
Surface Luminance: 190cd
Operating Temp: -20℃～＋70℃
Storage Temp: -30℃～＋80℃
Display Type: STN blue, yellow-green
Driving voltage: 5V
LED Lifetime: 40,000 hours
Backlight: LED white light/yellow-green
Display Color: blue/yellow-green
Certificate: GB/T19001-2016/IS09001:2015
Compliance: REACH & RoHS Compliant

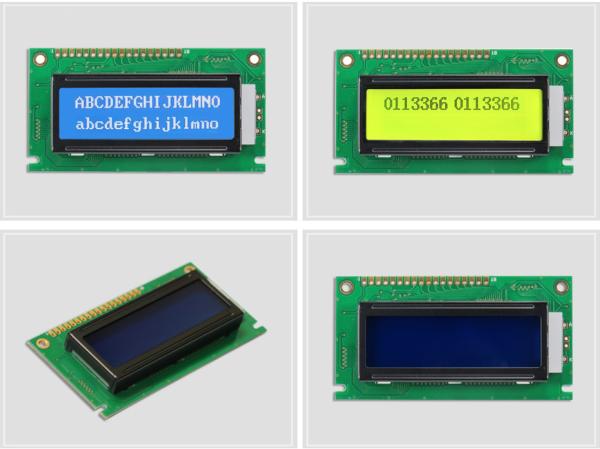

3. Product in details:

5V High Contrast Ratio LCD Display Rugged Mechanical Graphic LCD Screen

5V High Contrast Ratio LCD Display Rugged Mechanical Graphic LCD Screen

PS: This 1.5 -inch Graphic LCD Display is available for order with standard parameters. We also offer 122×32 dot-matrix monochrome LCD screen in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.

4. Application fields

Here are the recommended application areas for the Graphic LCD Display:

  • Industrial Control Panels: Ideal for real-time data visualization and system status monitoring.
  • Medical Devices: Supports clear display of patient information, diagnostic results, and operation interfaces.
  • Consumer Electronics: Suited for smart home appliances, digital cameras, and portable gaming devices for enhanced user experience.
  • Automotive Displays: Perfect for instrument clusters, infotainment systems, and rearview monitors.
  • Point-of-Sale (POS) Terminals: Enables intuitive interaction and detailed transaction display.

Why Choose JUNXian?

Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.

5V High Contrast Ratio LCD Display Rugged Mechanical Graphic LCD Screen

1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.

5V High Contrast Ratio LCD Display Rugged Mechanical Graphic LCD Screen

2. Custom LCD Displays & CTP-Integrated Modules

With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.

5V High Contrast Ratio LCD Display Rugged Mechanical Graphic LCD Screen

3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.

5V High Contrast Ratio LCD Display Rugged Mechanical Graphic LCD Screen

4. Certificates and Honors

We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.

5V High Contrast Ratio LCD Display Rugged Mechanical Graphic LCD Screen

5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.

With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.

Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!

Please Note

All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
