3 Inch COG Monochrome LCD Monitor , COG Dot Matrix Display With ST7567 Driver

Specifications

Brand Name :

Junxian or Customizable

Model Number :

JM12864C08

Certification :

ROHS,GB/T19001-2016/IS09001:2015

Place of Origin :

Shenzhen,China

MOQ :

5 sets

Price :

Negotiable

Payment Terms :

L/C,T/T,Paypal

Supply Ability :

200000 pieces per month

Delivery Time :

1-4 weeks

Packaging Details :

Standard Exportation Package

Name :

COG Dot Matrix Display

LCD Interface :

Serial/Parallel Port,SPI

Resolution :

128×64 Pixels

LCD Size :

71.50x48.20x5.20mm

Visual Area :

65.50X38.00mm

Control driver :

ST7567

Surface Luminance :

150cd/m2

Touch Screen: :

Without Touch Screen (Customizable)

Display Color :

blue,green,white or Customizable

Backlight :

LED white light

LED Lifetime :

40,000 hours

Description

Custom & OEM 3-inch COG Monochrome LCD Monitor COG Dot Matrix Display Fit For Wearable Devices Digital Cameras

1. Definition and Principle

COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.

2.Product Key Features and Advantages

(1) High-Resolution Display: Boasts a 128x64 pixel resolution, ensuring sharp and clear presentation of images and text for accurate information visualization.
(2) Advanced Display Technology: Utilizes STN yellow or FSTN transflective positive mode, which reduces pixel crosstalk and guarantees stable optical performance, delivering consistent and reliable display quality.
(3) Efficient Data Communication: Equipped with a built-in ST7567 driver IC that supports the SPI serial interface, enabling fast and smooth data transfer for seamless operation.
(4) Low-Voltage Operation: Operates at a typical 3.3V supply voltage, making it power-efficient. The integrated white LED backlight further enhances visibility, ensuring readability in various lighting conditions.
(5)Space-Saving Design: Employing the COG (Chip On Glass) process, this module uses compact chip bonding technology. It minimizes space requirements while achieving high integration efficiency, ideal for space-constrained applications.
(6) Wide Temperature Adaptability: With an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, it can function reliably in diverse environmental conditions, expanding its usability across different scenarios.

3. Product technical parameters

Keywords:	3-inch COG monochrome LCD
Resolution:	128×64 Pixels
LCD Interface:	Serial/Parallel Port,SPI
LCD Size:	71.50x48.20x5.20mm
Visual Area:	65.50X38.00mm
Control driver:	ST7567
Surface Luminance:	150cd/m2
Operating Temp:	-20℃～＋70℃
Storage Temp:	-30℃～＋80℃
Display Type:	Positive display,FSTN
Driving voltage:	3.3V
LED Lifetime:	40,000 hours
Backlight:	LED white light
Display Color:	Gray/Green
Certificate:	GB/T19001-2016/IS09001:2015

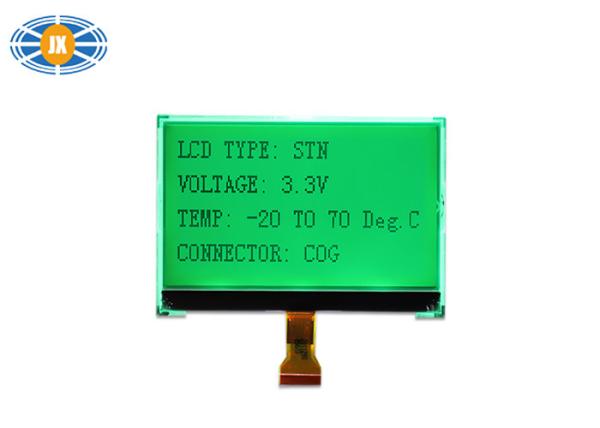

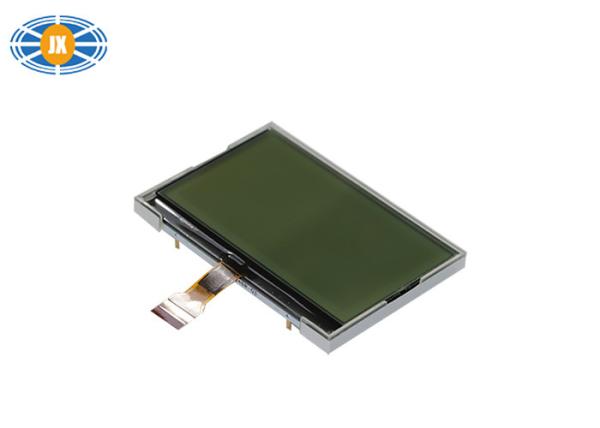

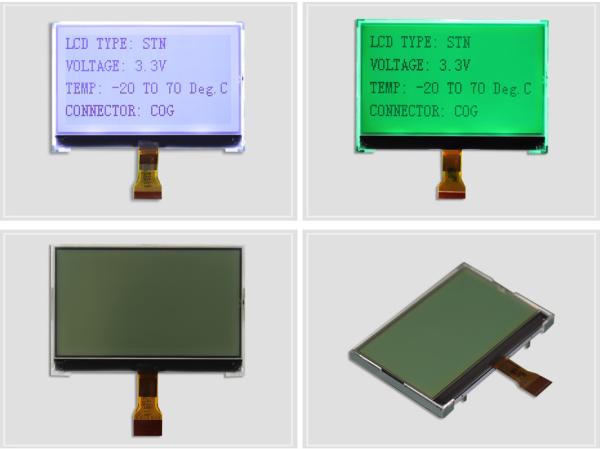

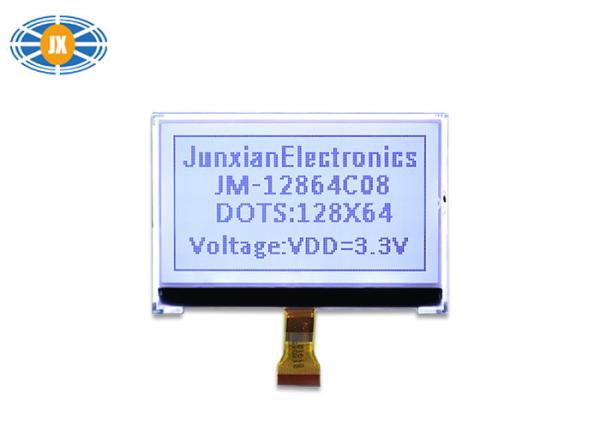

4. Product in details:
