OEM 2 Inch LCD Monitor , High Resolution LCD Display 192x64 For Wearable Devices

Specifications

Brand Name :

Junxian or Customizable

Model Number :

JM19264C03

Certification :

ROHS,GB/T19001-2016/IS09001:2015

Place of Origin :

Shenzhen,China

MOQ :

5 sets

Price :

Negotiable

Payment Terms :

L/C,T/T,Paypal

Supply Ability :

200000 pieces per month

Delivery Time :

1-4 weeks

Packaging Details :

Standard Exportation Package

Name :

2 Inch LCD Monitor

LCD Interface :

Parallel/Serial

Resolution :

192×64 Pixels

LCD Size :

56.20mmX23.24mmX3.30mm

Visual Area :

47.50x17.49mm

Control driver :

UC1604c

Surface Luminance :

150cd/m2

Display Color :

ash-colored

Backlight :

LED white light

LED Lifetime :

40,000 hours

Description

Custom & OEM 2-inch COG Monochrome LCD Monitor COG Dot Matrix Display Fit For Wearable Devices from High Resolution Display factory

1. Definition and Principle

COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.

2.Product Key Features and Advantages

(1)Superior Readability in Sunlight:

With FSTN display type and enhanced sunlight-readable features, including an optimized anti-glare surface treatment, it ensures crystal-clear visibility even under direct sunlight (≥10,000 lux ambient light), perfect for outdoor applications.
(2) Optimal Resolution & Size:

Boasts a 192×64 pixels resolution on a 2 - inch monochrome screen. Its compact dimensions of 56.20×23.24×3.30mm with a 47.50×17.49mm view area make it highly suitable for space - constrained devices.
(3)Versatile Interfaces:

Equipped with both Parallel and Serial interfaces (UC1604c driver), offering flexibility for seamless integration with various systems and meeting different technical requirements.
(4) Long - lasting & Bright Backlight:

Features a 150cd/m² LED white backlight with an impressive 40,000 - hour lifespan, providing consistent and reliable illumination over extended periods.
(5) Wide Operating Range:

Operates stably at 3.3V within a temperature range of -20℃~+70℃ and can be stored safely between -30℃~+80℃, ensuring durability in diverse environmental conditions.
(6) High - standard Compliance:

Complies with REACH/RoHS regulations, ensuring environmental friendliness, and adheres to GB/T19001 - 2016/ISO9001:2015 quality management standards, guaranteeing top - notch quality.

3. Product technical parameters

Keywords:	2-inch monochrome LCD screen
Resolution:	192×64 Pixels
LCD Interface:	Parallel/Serial
LCD Size:	56.20X23.24X3.30mm
Visual Area:	47.50x17.49mm
Control driver:	UC1604c
Surface Luminance:	150cd/m2
Operating Temp:	-20℃～＋70℃
Storage Temp:	-30℃～＋80℃
Display Type:	FSTN
perspectives:	6.0'CLOCK
Driving voltage:	3.3V
LED Lifetime:	40,000 Hours
Backlight:	LED white light
Display Color:	ash-colored
Certificate:	GB/T19001-2016/IS09001:2015
Compliance:	REACH & RoHS Compliant

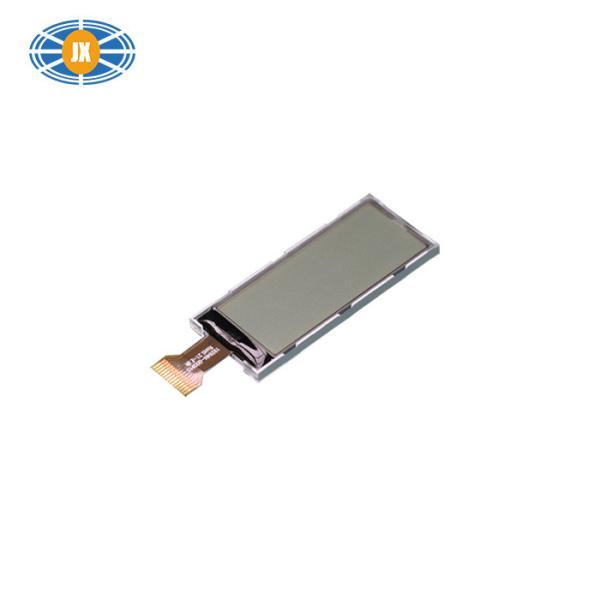

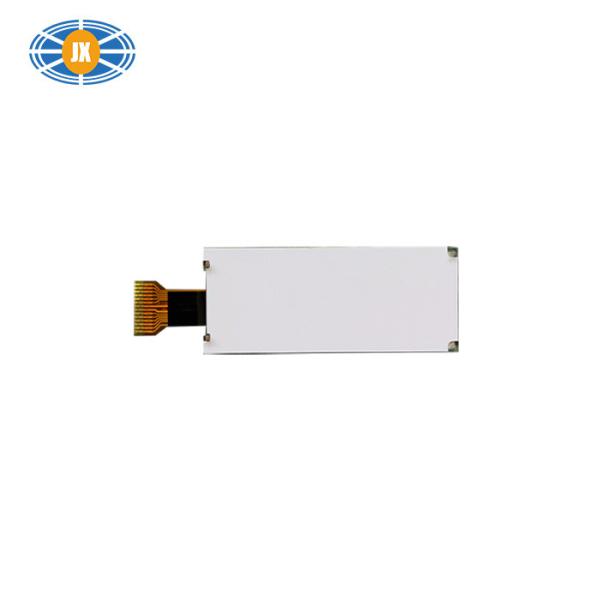

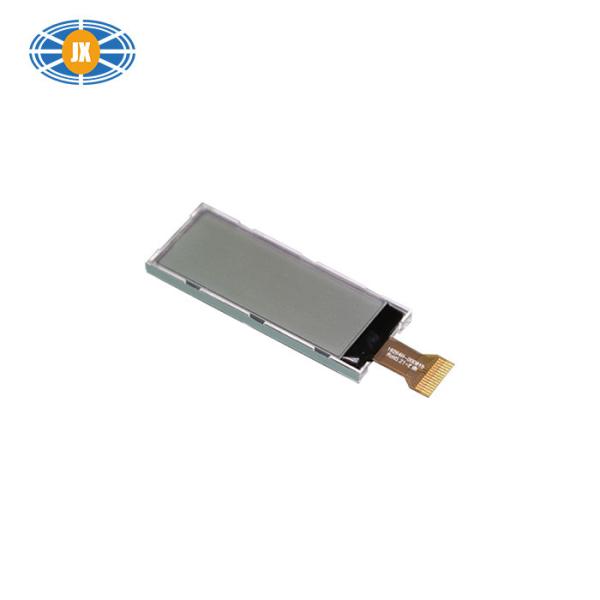

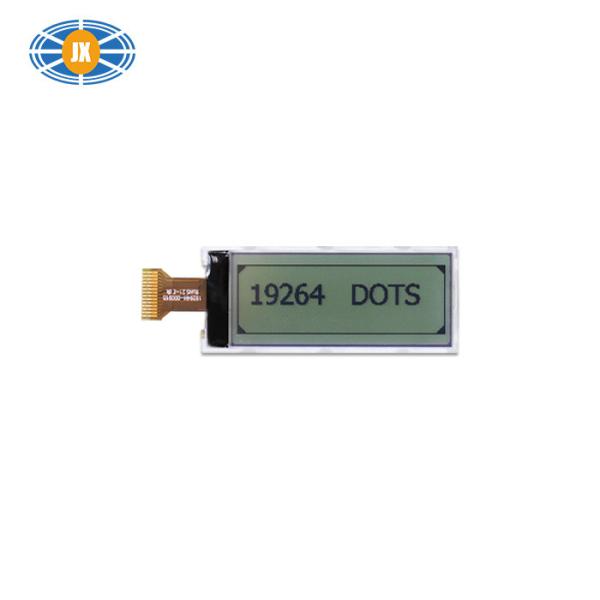

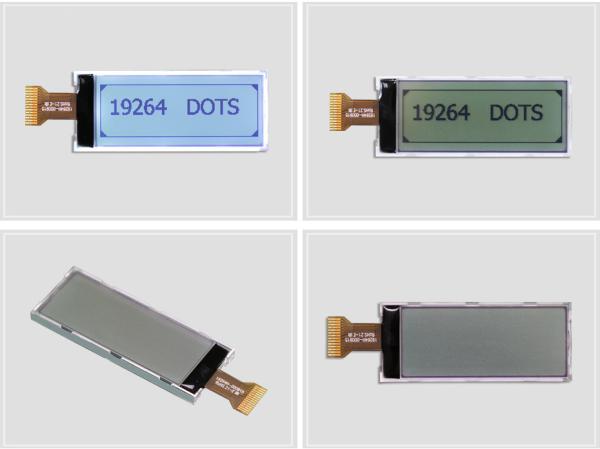

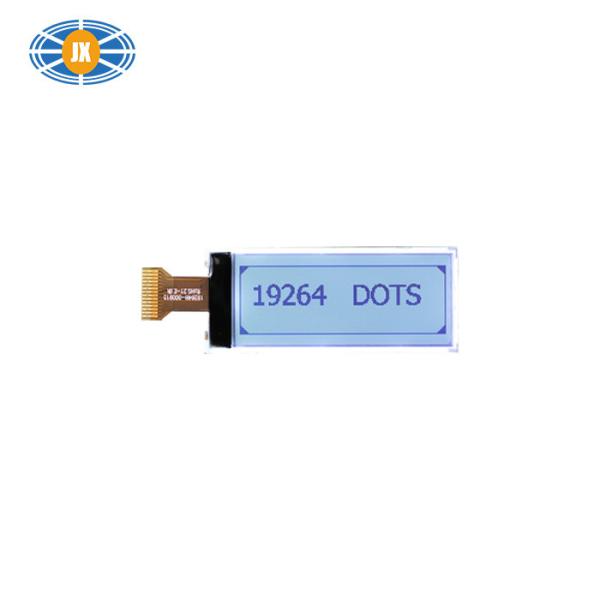

4. Product in details:
