Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
HMC500
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
50000USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Size of worktable (mm) :
500*500
X/Y/Z Axis stroke（mm） :
800*650*800
pindle end taper/diameter（mm） :
BT40-150
Maximum load on table（kg） :
600
Table graduation :
1°*360
X/Y/Z rail width（mm） :
45/45/45
Spindle motor power（kw） :
11
Description
HMC500 Cheap Price CNC Machine Tool GSK Control System Horizontal Cnc Milling Machine
Product Description:

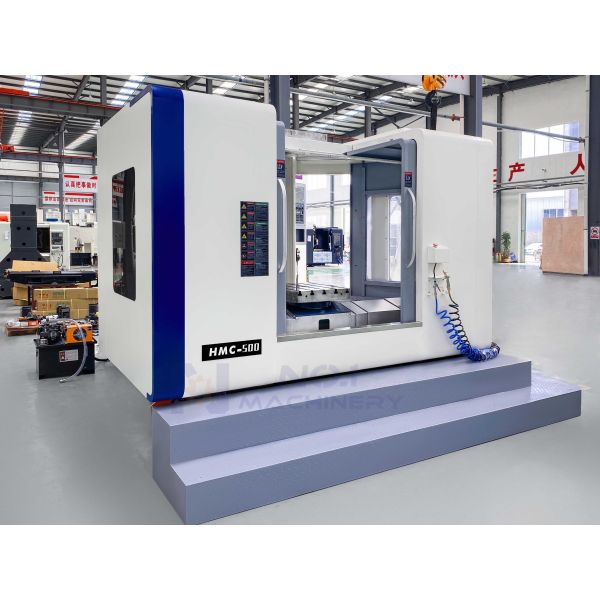

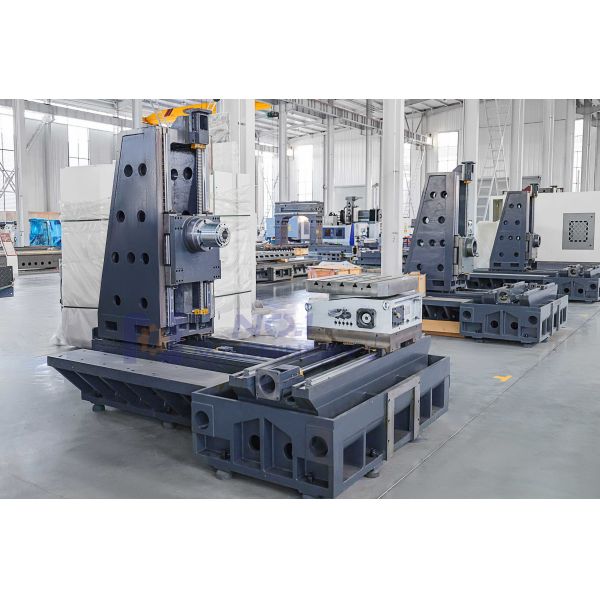

The HMC500 inverted T-type horizontal machining center delivers exceptional precision and efficiency for machining a wide range of parts. Its horizontal layout with a transverse-moving worktable ensures stable, reliable machining, while the robust machine body and rigid cast iron bed enable it to handle large workpieces and heavy loads. Equipped with a high-speed spindle and an automatic tool changer, it achieves quick tool changes and enhanced production efficiency. Additionally, its multi-axis control capabilities—including a 360° rotatable worktable—support complex cutting operations and multi-sided machining in a single setup.
Standard Configuration:

1.spindle unite:kenturn/OKADA/volis
2.bearing:SKF/NACHI

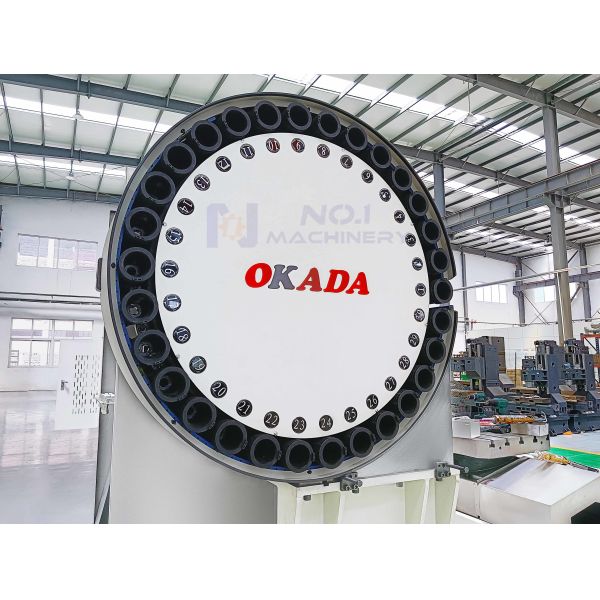

3.tool magazine:OKADA/AIMACH
4.lead screw:HIWIN/PMI
5.linear rails:HIWIN/PMI
6.Optional Table: 1°-360°
Product Specification:
Item Model
Unit
HMC500(cross table)
HMC500(Inverted structure)

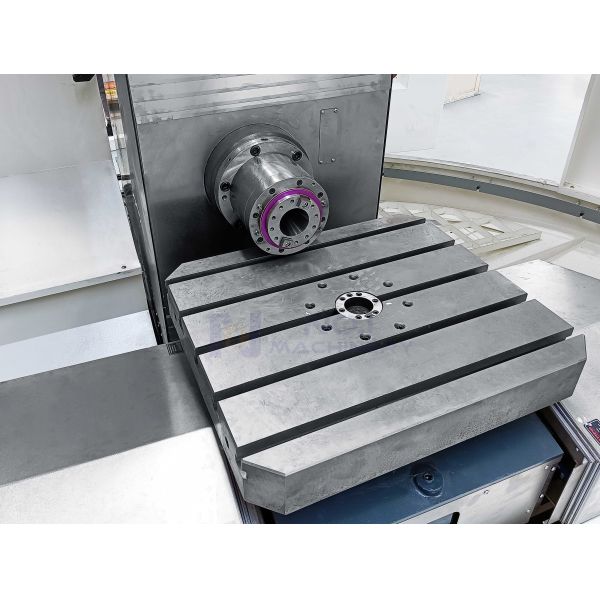

Size of worktable
mm
500*500
500*500
Table graduation
mm
1°*360
1°*360
Maximum load on table
kg
600
600
Number of worktables

1
1
X/Y/Z rail width
mm
45/45/45
45/45/45
X/Y/Z screw diameter
mm
4012/5012/4012
4012/5012/4012
X/Y/Z Axis stroke
mm
1100*700*600
800*650*800
X/Y/Z motor torque
mm
15/28/28
15/28/28
Distance from spindle face to table
mm
20-720
150-950
Distance from spindle center to column
mm
50-750
100-750
Cutting feed rate
mm/min
1-10
1-10000
X/Y/Z axis fast feed
mm/min
24/24/24
24/20/20
Spindle en taper
mm
BT40-150
BT40-150
Spindle motor power
kw
11
11
Maximum spindle speed
rpm
8000
8000
Form of Tool Magazine
-
disc
Disc/Chain type
Maximum tool diameter/weight
mm/kg
79-120/8
78-120/8
Tool change time
sec
2.5
2.5
Positioning accuracy
mm
0.008
0.008
Repeat positioning accuracy
mm
0.005
0.005
The smallest unit of positioning
mm
0.001
0.001
Weight of machine tool
kg
7800
8000
External dimensions
mm
3150*2550*2900
3500*4500*2900

Details Display:

HMC500 Cheap Price CNC Machine Tool GSK Control System Horizontal Cnc Milling Machine

HMC500 Cheap Price CNC Machine Tool GSK Control System Horizontal Cnc Milling Machine

HMC500 Cheap Price CNC Machine Tool GSK Control System Horizontal Cnc Milling Machine

HMC500 Cheap Price CNC Machine Tool GSK Control System Horizontal Cnc Milling Machine
