Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
HMC1000S
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
150000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Size of worktable (mm) :
1000x1000
X/Y/Z Axis stroke（mm） :
1600X1000X1000
pindle end taper/diameter（mm） :
BT50-190
Maximum load on table（kg） :
1200
X/Y/Z rail width（mm） :
55/55/65
Spindle motor power（kw） :
23
Form of Tool Magazine :
Disc／Chain
Description
China Double-worktable Cnc Milling Machine HMC1000 Horizontal Machining Center
Product Description:

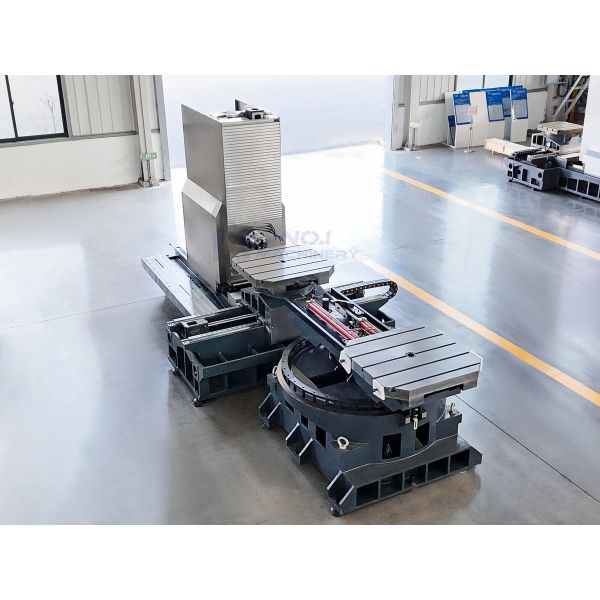

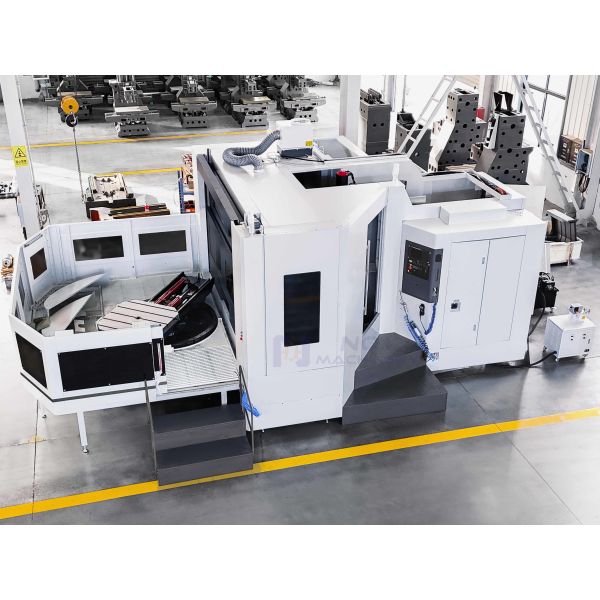

The HMC1000S is a high-precision, high-efficiency horizontal machining center suitable for machining a wide range of parts. It features strong load-bearing capacity and can easily handle large and heavy workpieces.Equipped with a high-speed spindle and automatic tool changer, the machine ensures fast tool changes and greatly improves production efficiency.The automatic rotation and exchange of double pallets allow multi-sided machining of parts. Meanwhile, loading and unloading can be performed simultaneously during machining, overlapping auxiliary time with processing time to achieve highly efficient automated operation.
Standard Configuration:

1.syntec 22ma control system
2.Bt50 Taiwan 8000 RPM spindle

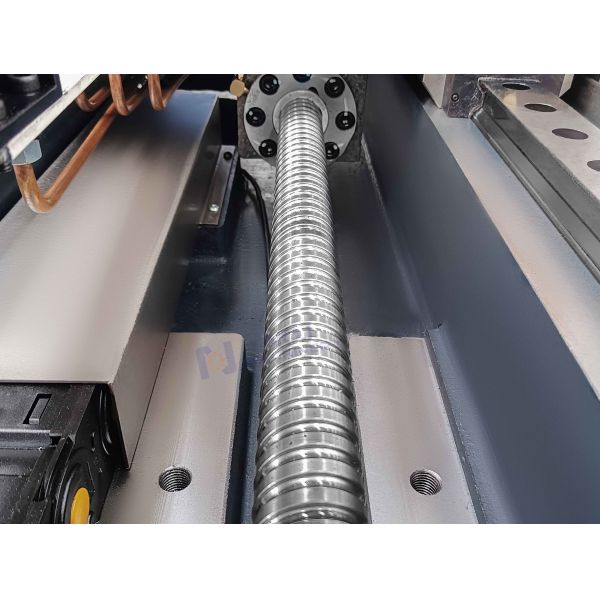

3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 30 -Disc- atc

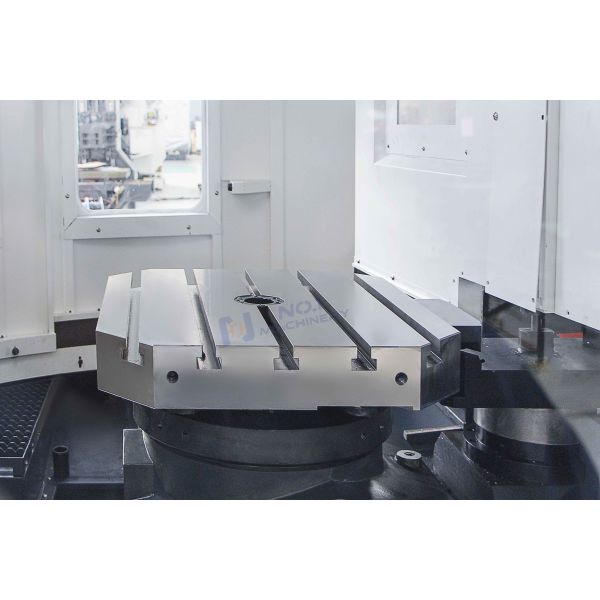

6.Table: 700 x 630 mm 1 °/360 °
Product Specification:
Item Model
Unit
HMC1000S
Size of worktable
mm
1000x1000
Table graduation
mm
1*360
Maximum load on table
kg
1500
Number of worktables
2
X/y/z rail width
mm
55/55/65
X/y/z screw diameter
mm
6312/5012/6312
X/Y/Z Axis stroke
mm
1600X1000X1000
X/y/z motor torque
mm
28/30/30
Distance from spindle face to table
mm
200-1200
Distance from Spindle Center to column
mm
120-1120
Cutting feed rate
mm/min
10000
XY/Z axis fast feed
mm/min
20/20/20
Spindle end taper
mm
BT50-190
Spindle motor power
kw
23
Maximum spindle speed
rpm
6000
Form of Tool Magazine
/Disc/Chain
Maximum tool diameter/weight
mm/kg
118/200-25
ool change time
sec
2.5
Positioning accuracy
mm
0.008
Repeat positioning accuracy
mm
0.005
The smallest unit of positioning
mm
0.001
Weight of machine tool
kg
14500
External dimensions
mm

5500X4500X3500
