HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
HMC500
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
50000USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Size of worktable (mm) :
500*500
X/Y/Z Axis stroke（mm） :
800*650*800
pindle end taper/diameter（mm） :
BT40-150
Maximum load on table（kg） :
600
Table graduation :
1°*360
X/Y/Z rail width（mm） :
45/45/45
Spindle motor power（kw） :
11
Description
HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
Product Description:

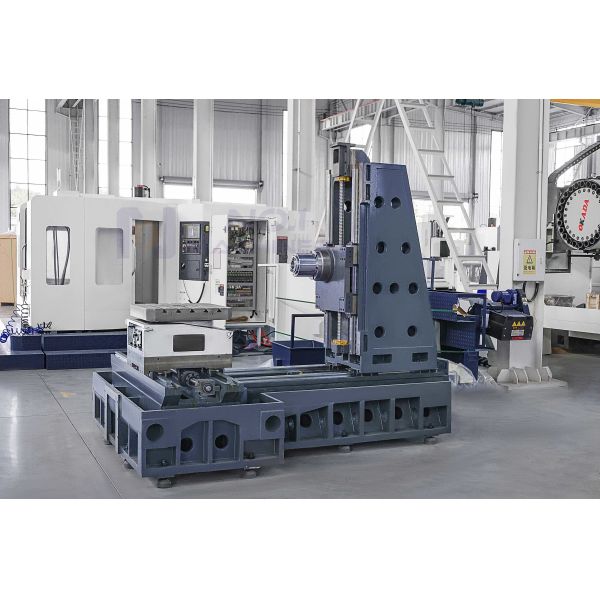

The HMC500 is an inverted T-type horizontal machining center renowned for its exceptional precision and efficiency in machining a wide range of components. It adopts a horizontal layout paired with a traversing worktable, ensuring stable and reliable machining operations at all times. Built with a robust machine body and a rigid cast iron bed, this machining center excels at handling large workpieces and heavy-load machining tasks. Outfitted with a high-speed spindle and an automatic tool changer, it enables rapid tool switching and significantly boosts production efficiency. What’s more, the HMC500 features multi-axis control capabilities, with its worktable offering 360° continuous rotation—an ideal design for complex cutting operations and multi-sided machining of components.
Standard Configuration:

1.spindle unite:kenturn/OKADA/volis
2.bearing:SKF/NACHI

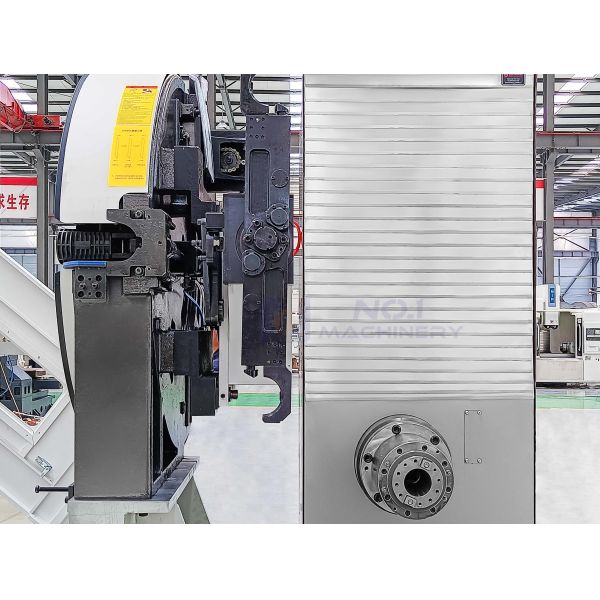

3.tool magazine:OKADA/AIMACH
4.lead screw:HIWIN/PMI
5.linear rails:HIWIN/PMI
6.Optional Table: 1°-360°
Product Specification:
Item Model
Unit
HMC500(Inverted structure)
Size of worktable
mm
500*500
Table graduation
mm
1°*360
Maximum load on table
kg
600
Number of worktables

1
X/Y/Z rail width
mm
45/45/45
X/Y/Z screw diameter
mm
4012/5012/4012
X/Y/Z Axis stroke
mm
800*650*800
X/Y/Z motor torque
mm
15/28/28
Distance from spindle face to table
mm
150-950
Distance from spindle center to column
mm
100-750
Cutting feed rate
mm/min
1-10000
X/Y/Z axis fast feed
mm/min
24/20/20
Spindle en taper
mm
BT40-150
Spindle motor power
kw
11
Maximum spindle speed
rpm
8000
Form of Tool Magazine
-
Disc/Chain type
Maximum tool diameter/weight
mm/kg
78-120/8
Tool change time
sec
2.5
Positioning accuracy
mm
0.008
Repeat positioning accuracy
mm
0.005
The smallest unit of positioning
mm
0.001
Weight of machine tool
kg
8000
External dimensions
mm
3500*4500*2900

Details Display:

HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine

HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine

HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine

HMC500 Low Prices Horizontal Machining Center BT40 Spindle CNC Automatic Milling Machine
