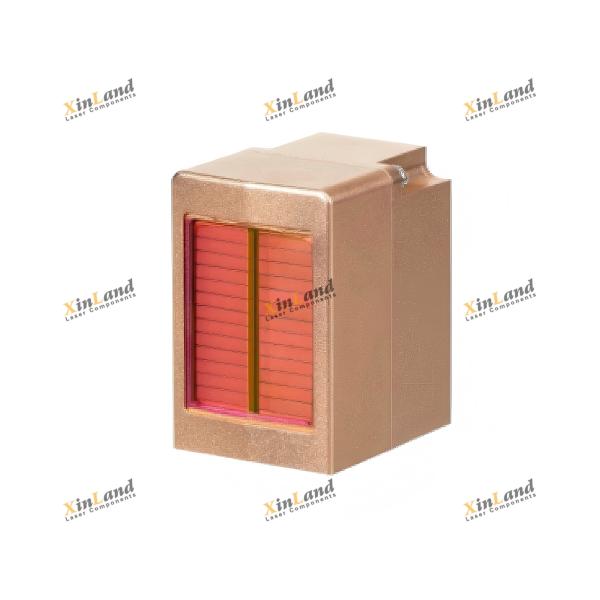

24bar 2400W 808/1064/755/940 nm For Laser Hair Removal Machine
24bar 2400W 808/1064/755/940 nm For Laser Hair Removal Machine
24bar 2400W 808/1064/755/940 nm For Laser Hair Removal Machine
24bar 2400W 808/1064/755/940 nm For Laser Hair Removal Machine
Specifications
Brand Name :
Xinland
Model Number :
XPL-C
Place of Origin :
Shaanxi，China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10000PCS
Delivery Time :
30DAYS
Output Wavelength :
808/1064/755/940 Optional nm
Wavelength :
808/1064/755/940 Optional ±15nm
Working current :
≤120 Typical value 95 A
Working voltage :
1.8V/Bar V
Weight :
0.05kg
Description

Specification

Output Wavelength:808/1064/755/940 Optional nm
Wavelength: ±15 nm
Bar quantity :24 Pcs
Peak Power:2400 W

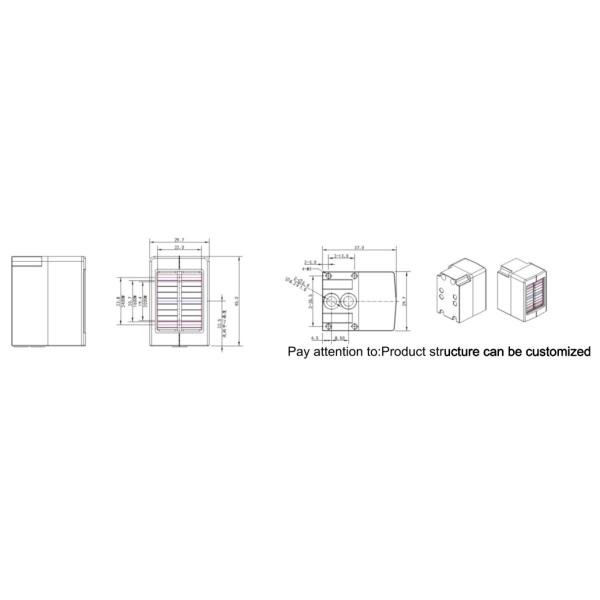

Light size:22X23.5 mm X mm
Angel of divergence:Fast≤31°；slow≤8°
Wavelength:drigt coefficient 0.28 nm/℃
Optical collimation:Customizable /
Working current :≤120 Typical value 95 A
Working voltage:1.8V/Bar V
Threshold Current:≤19 A
Slope Efficiency per Bar:≥1.1 W/A
Power Conversion Effciency:250 %
Duty cycle:≤20 %
Pulse width:1~100 msec
Frequency:1~10 Hz
Water quality :Distilled or deionized water(Filtration system≤30um) /
Water temperature : 18~28 ℃
Water pressure:0.3~0.4 Mpa
Water discharge:3~4.5 lpm

Product Description

Product Features:
1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.Wide range of customer application conditions.
5.Collimation can be added.
Main application:
1.Laser hair removal.
2.pumping.
3.Laser illumination.

24bar 2400W 808/1064/755/940 nm For Laser Hair Removal Machine

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.
