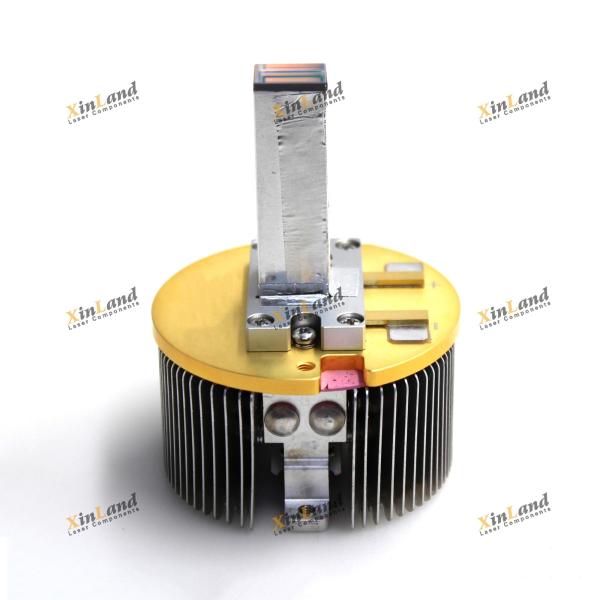

50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical
50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical
50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical
50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical
50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical
50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical
Specifications
Brand Name :
Xinland
Model Number :
XTB
Place of Origin :
Shaanxi，China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10000PCS
Delivery Time :
30DAYS
Output power :
50/100/150W
Wavelength :
755/808/1064±10nm
Working current :
45~50A
Working voltage :
1.8/3.6/5.4V
Weight :
0.05kg
Description

Specification

Output power:50/100/150W
Wavelength: 755/808/1064±10nm
Bar quantity :1/2/3 Pcs
Bar interval:1.6mm
Light size: 12*9 mm X mm
Working current :45~50A
Working voltage:1.8/3.6/5.4V
Duty cycle: 40%
Pulse width:Duty cycle:*1000/Hz ms
Frequency: 1~5 Hz
Cooling Method: Fan heat dissipation
Fan parameter: DC5.0V,40*40*20t,7200rpm
Air volume: 7.6 CFM
Ambient temperature: -10℃~28℃(Continuous operation 30min) ℃
Operation temperature: -109C~45C(Strict control)℃

Product Description

755/808/1064±10nm-50W/100W/150W Laser Diode Stacks Trade

1.Gold tin packaging.
2.High reliability and stability.
3.Best alternative to IPL.
4.Small size suitable for home use.
5.Can be customized according to customers.

50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.

50W 100W 150W 755nm 808nm 1064nm Laser Diode Stacked Emitter Laser Diode Bar Chip for IPL Laser Equipment and Biomedical
