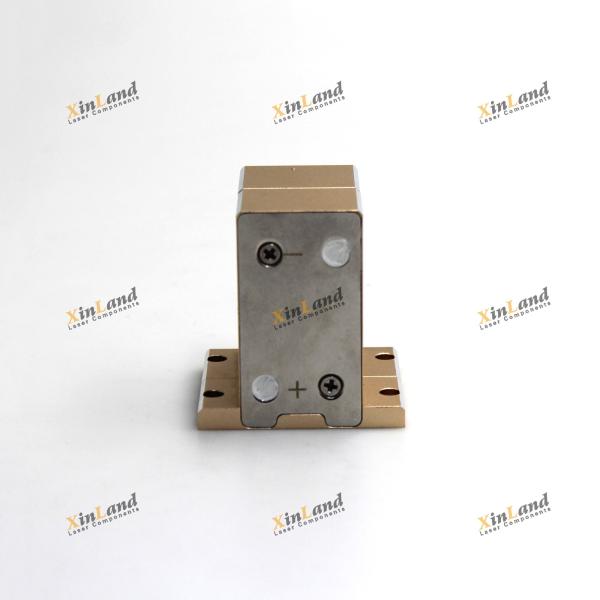

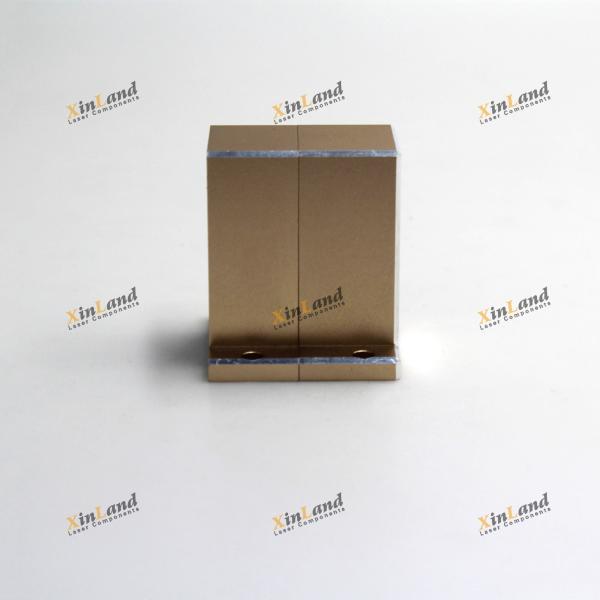

500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair
500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair
500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair
500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair
500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair
500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair
Specifications
Brand Name :
Xinland
Model Number :
XPL-FAC
Place of Origin :
Shaanxi，China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10000PCS
Delivery Time :
30DAYS
Output power :
500~1600 W
Wavelength :
755/808/1064 nm
Working current :
50-100 A
Working voltage :
1.8V/Bar V
Weight :
0.05kg
Description

Specification

Output power:500~1600 W
Wavelength:755/808/1064 nm
Bar quantity :24 Pcs
Light size:Can be Customized according to customers mm X mm
Working current :50-100 A
Working voltage:1.8V/Bar V
Duty cycle:≤40 %
Pulse width:≤400 msec
Frequency:1~10 Hz
Water quality :Distilled or deionized water
Water temperature :18~30 ℃
Water pressure:0.3~0.4 Mpa
Water discharge:3.0~4.0 lpm

Product Description

1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.Can be customized with crystal size.
5.Good homogenization and low light loss.
6.Can be customized according to customers.

500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.

500W 600W 808nm Laser Diode Bar Chip 6 10 12bars Diode Laser Stack for Diode Laser Hair Removal Handpiece Repair
