SF8025H 8M Fully Enclosed Dual Pallet Exchange Fiber Laser Cutting Machine 8000x2500mm Sheet Cutter with 15000W Laser

SF8025H 8M Fully Enclosed Dual Pallet Exchange Fiber Laser Cutting Machine

The SF8025H is an 8-meter ultra-large format fully enclosed fiber laser cutting machine engineered for the most demanding long-sheet processing applications. With an 8000*2500mm working area, dual pallet exchange system, and laser power up to 15000W, it handles full 8-meter sheets in a single operation without splicing. The multi-section welded bed with multi-support gantry structure ensures exceptional straightness and stability across the entire 8-meter travel. Available in two configurations to match different production needs: the H-type dual pallet exchange for maximum productivity, and the G-type single table for economical operation.

Core Advantages

8-Meter Ultra-Large Format

With an 8-meter extra-long processing travel, the SF8025H is specially designed for large sheets and long workpieces. Full sheet cutting without splicing eliminates secondary joining processes, dramatically improving efficiency and dimensional accuracy for oversized components used in engineering machinery, shipbuilding, and steel structure fabrication.

Dual Model Configurations Available

Choose between two configurations: the H-type dual pallet exchange for maximum production throughput with near-zero idle time, or the G-type single table for cost-effective operation. Both share the same robust 8-meter platform, fully enclosed safety structure, and high-power laser capabilities.

Sectional Welded Precision Bed

Multi-section integrally welded bed, individually precision-machined then assembled on-site to ensure exceptional straightness and flatness for the full 8-meter travel. The segmented design enables container shipping while maintaining structural integrity and long-term dimensional stability under heavy workpiece loads.

Multi-Support Gantry Structure

The extended gantry beam features a multi-support point design that eliminates vibration during long-travel high-speed operation. This ensures stable, vibration-free cutting at speeds up to 140m/min, delivering consistently excellent cut end surface quality across the entire working envelope.

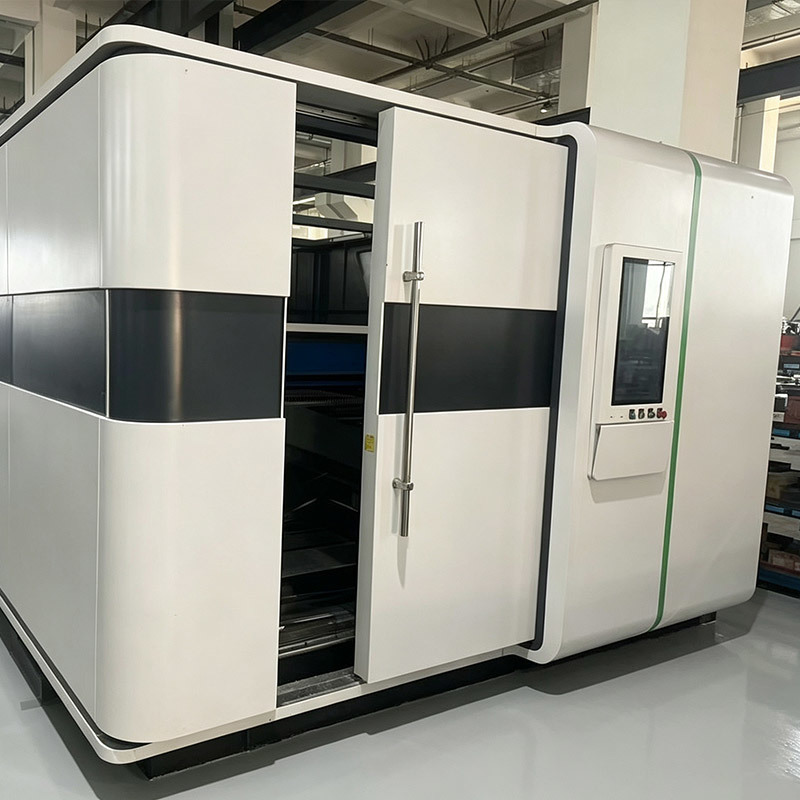

Fully Enclosed Safety Protection

The integral fully enclosed protective cover with multiple safety doors provides comprehensive operator protection while maintaining convenient access for loading, unloading, and maintenance. CE-certified safety design with door interlocks and light curtains meets the highest international safety standards.

15000W Ultra-High Power Compatibility

Supports fiber laser sources up to 15000W, delivering class-leading thick plate cutting capability. Achieve clean cuts in carbon steel up to 60mm and stainless steel up to 35mm at maximum power, covering the full range from thin sheet to ultra-thick plate processing on a single platform.

Intelligent Zoned Dust Collection

The multi-zone independent dust removal system automatically switches extraction zones based on cutting head position, maximizing collection efficiency across the 8-meter work area. This intelligent system minimizes energy consumption while maintaining a clean workshop environment.

Automatic Long Guide Rail Lubrication

A fully automatic centralized lubrication system delivers timed and metered lubrication to guide rails and racks throughout the 8-meter travel. This significantly reduces manual maintenance requirements and ensures consistent long-term precision without lubrication-related degradation.

Technical Specifications

Application Scenarios

Applicable Industries: Engineering machinery, agricultural machinery, elevator manufacturing, steel structures, shipbuilding, rail transit, new energy equipment, and more.

Applicable Materials: Carbon steel, stainless steel, aluminum alloy, galvanized sheet, hot-rolled plate, wear-resistant steel, high-strength steel, and other metal sheets.

Typical Applications: 8-meter full sheet blanking, large frame beam cutting, elevator door panel processing, engineering machinery structural parts.

Packaging and Shipping

• Sectional Export Packaging: Bed packed in 3 independent sections, each with fumigated wooden crate, suitable for 40HQ sea freight
• Enclosure Packaging: Protective cover disassembled and packed in sections; glass panels with protective film packed separately
• Heavy-Duty Reinforcement: 150mm thick solid wooden blocks at bottom, whole unit secured with steel straps to prevent transportation deformation
• Precision Parts Protection: Laser source, cutting head, and servo motor in dedicated shockproof and moisture-proof packaging
• Guide Rail Anti-Rust Treatment: Long guide rails coated with special anti-rust grease, wrapped with anti-rust paper and plastic sheath
• Packing Markings: Each crate marked with crate number, weight, center of gravity, lifting points, and installation direction
• Installation Service: Engineer on-site assembly and commissioning including bed splicing calibration, optical path adjustment, and personnel training

Safety Precautions

• Use crane or forklift for 8-meter long sheet loading/unloading; at least two operators required
• Foundation level calibration is essential for installation due to the long bed requiring high foundation flatness
• Regularly check fastening of bed section connecting bolts to prevent looseness affecting precision
• Ensure sufficient lubrication for long-travel guide rails; regularly check lubrication oil lines
• Check all safety door interlocks on the multiple sectional doors each shift
• Pay attention to scrap handling when cutting extra-long workpieces to prevent falling injuries
• Monitor laser water temperature during high-power cutting to ensure cooling system operates properly
• Re-calibrate level and optical path after equipment relocation or long-distance transportation
