SF3015CM Sheet Tube Integrated Fiber Laser Cutting Machine 3000x1500mm Dual Function Pipe Square Cutter with 4000W Laser

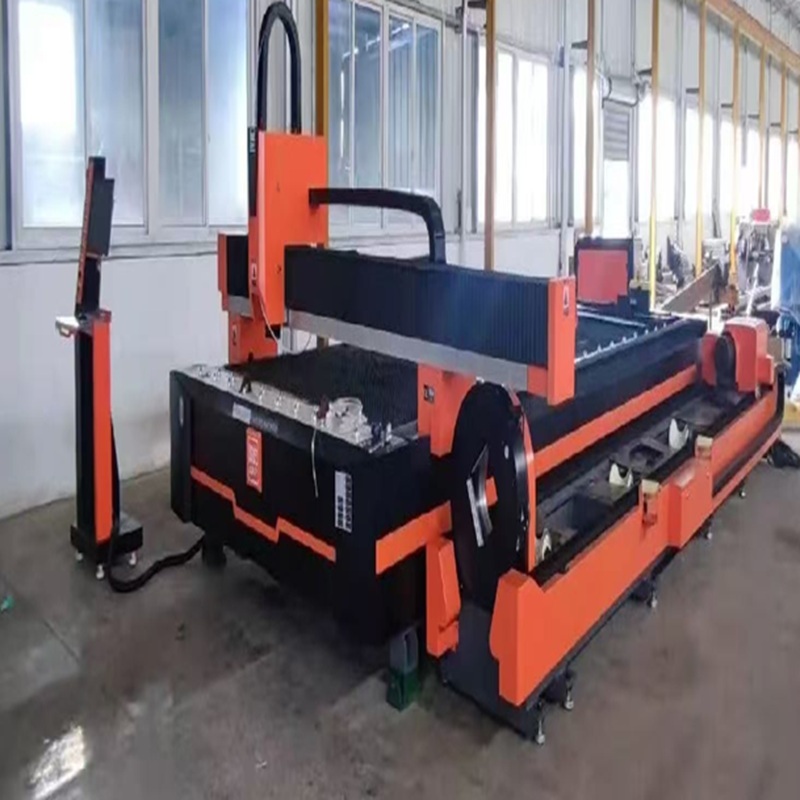

SF3015CM Sheet & Tube Integrated Fiber Laser Cutting Machine

The SF3015CM is a sheet and tube integrated fiber laser cutting machine that combines two essential fabrication processes in one compact platform. With a 3000*1500mm sheet working area and 3000mm tube processing capability, it handles both flat plate cutting and tube cutting of various profiles including round tubes (Φ20-Φ160mm), square tubes (20-120mm), rectangular tubes, and oval tubes. The quick-switch design between sheet and tube modes, high-precision pneumatic chuck, and professional tube cutting software make it the ideal solution for small and medium enterprises requiring both sheet metal and tube processing without investing in two separate machines.

Core Advantages

Sheet & Tube Dual Function in One Machine

One machine combines both sheet cutting and tube cutting functionality, eliminating the need for separate equipment. This dual-purpose design saves significant equipment investment and floor space while providing full processing capability for both metal plates and tube profiles in a single production cell.

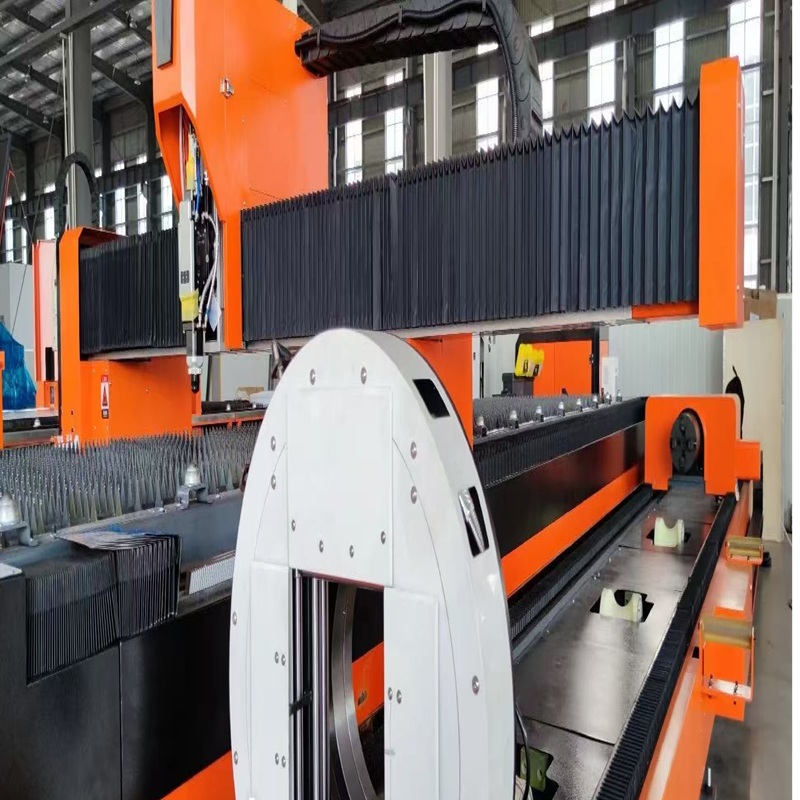

Professional Tube Cutting Chuck System

Equipped with a high-precision pneumatic chuck for stable and reliable tube clamping. The precision rotation mechanism ensures excellent cut section quality and accurate positioning for complex tube processing operations including bevel cuts, hole patterns, slots, and intersecting line cuts.

Quick Mode Switching

Rapid switching between sheet cutting and tube cutting modes without complex retooling or recalibration. Operators can transition between plate and tube jobs in minutes, maximizing machine utilization across diverse production requirements.

Gantry Structure for Precision Sheet Cutting

The sheet cutting section adopts a rigid gantry structure for stable operation at high speed. Combined with the fiber laser source, it delivers clean, precise cuts across carbon steel, stainless steel, aluminum, and other metal sheets.

Multi-Tube Profile Support

Supports cutting of round tubes, square tubes, rectangular tubes, and oval tubes, providing comprehensive tube processing capability. Adjustable tube support wheels prevent sagging deformation of long tubes, ensuring consistent cutting accuracy across the full tube length.

Intelligent Tube Cutting Software

Professional tube cutting software supports complex processes including bevel cutting, hole opening, slotting, and intersecting line cutting. The intuitive interface simplifies programming of complex tube geometries, reducing setup time and improving production efficiency.

Comprehensive Dust Collection

Dedicated dust extraction ports serve both the sheet cutting and tube cutting areas, ensuring effective fume collection regardless of operating mode. This maintains a clean workshop environment suitable for continuous production.

Technical Specifications

Application Scenarios

Applicable Industries: Metal furniture, shelf and display rack manufacturing, sports equipment, agricultural machinery, doors and windows guardrails, advertising signs, mechanical and electrical housings, and more.

Applicable Materials: Carbon steel, stainless steel, aluminum alloy, galvanized pipe, square tube, round tube, rectangular tube, and other metal sheets and tubes.

Typical Applications: Sheet metal parts cutting, tube blanking, furniture frame processing, shelf column cutting, guardrail and handrail hole opening.

Packaging and Shipping

• Split Export Packaging: Main unit, tube cutting mechanism, and control cabinet packed separately for easy container loading
• Fumigated Wooden Crates: All crates fumigation-treated solid wood, complying with international sea freight export standards
• Special Chuck Protection: Precision chuck coated with anti-rust oil, protected with cover, shockproof and moisture-proof packaging
• Guide Rail Protection: Guide rails and racks coated with anti-rust grease, wrapped with anti-rust paper to prevent corrosion during transportation
• Internal Securing: Key internal components supported and fixed to prevent shifting during transportation
• Accessory Packaging: Spare parts, tools, and wearing parts packed by category with detailed bilingual packing list
• Installation and Commissioning: Engineer on-site installation, commissioning, operation training, and process guidance services provided

Safety Precautions

• Clean worktable and tube area before switching cutting modes to prevent interference and collision
• Ensure tube concentricity when clamping; excessive eccentricity can cause cutting deviation and chuck damage
• Reduce cutting parameters appropriately for thin-walled tubes to prevent deformation and edge burning
• Regularly check chuck jaw wear; replace severely worn jaws promptly to maintain clamping force
• Pay attention to scrap handling when cutting long tubes to prevent falling tubes from damaging equipment or injuring personnel
• Avoid tube cutting mechanism during sheet cutting to prevent cutting head collision
• Regularly lubricate chuck rotation mechanism and support wheels to ensure smooth operation
• Operators must master operating procedures for both sheet and tube cutting processes
