SF4015CM Sheet Tube Integrated Fiber Laser Cutting Machine 4000x1500mm Dual Pipe Profile Cutter with 6000W

SF4015CM 4M Extended Sheet & Tube Integrated Fiber Laser Cutting Machine

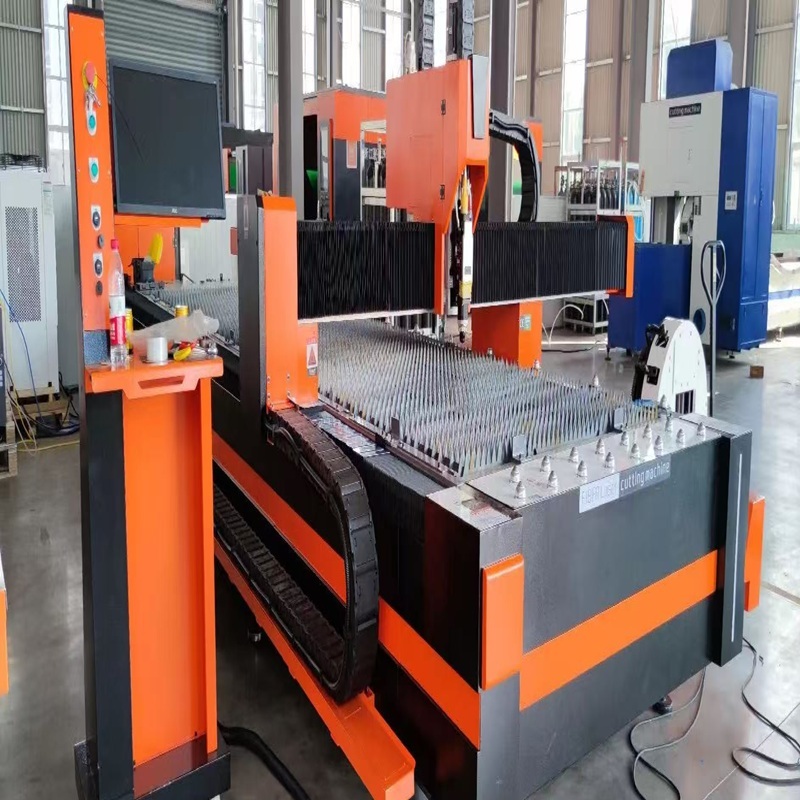

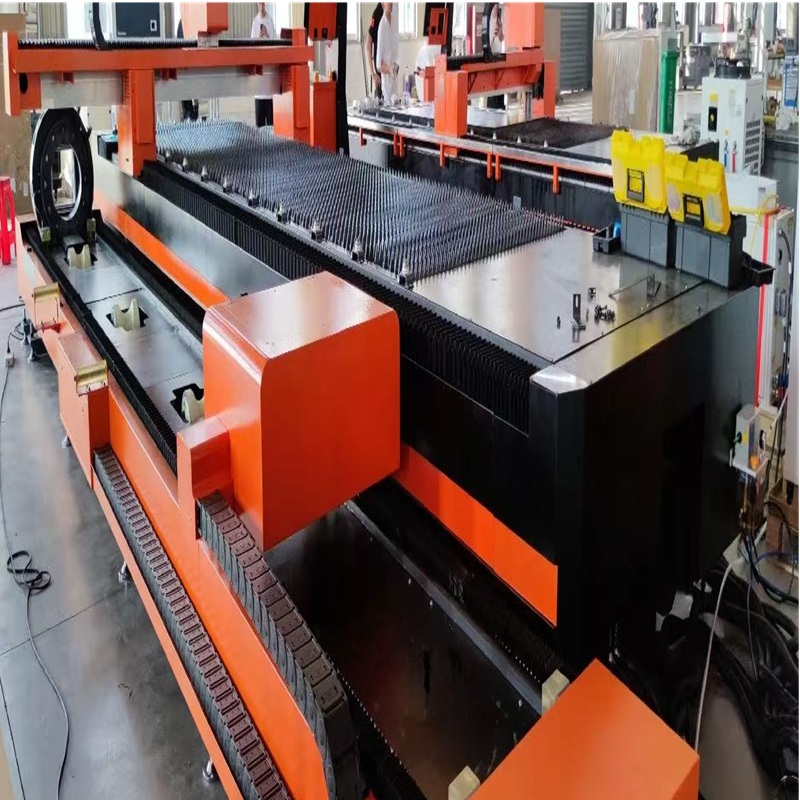

The SF4015CM is a 4-meter extended sheet and tube integrated fiber laser cutting machine designed for medium-to-large scale fabrication shops. With a 4000*1500mm sheet working area and 4000mm tube processing length, it handles both plate cutting and tube processing of various profiles including round tubes up to Φ200mm, square tubes up to 150mm, rectangular tubes, angle steel, and channel steel. The heavy-duty pneumatic chuck, dual-drive gantry structure, and dual-station independent operation make it the versatile workhorse for enterprises requiring comprehensive sheet and tube processing capability without investing in multiple specialized machines.

Core Advantages

4M Extended Sheet & Tube Integration

The 4-meter sheet cutting area paired with 4-meter tube processing length meets medium-to-long size sheet and tube processing requirements. One machine replaces two separate cutting systems, dramatically saving floor space and equipment investment while providing comprehensive processing capability for both plate and profile fabrication.

Heavy-Duty Pneumatic Chuck System

High-torque pneumatic chuck with strong clamping force supports large diameter tube cutting up to Φ200mm for round tubes and 150mm for square tubes. The precision rotation mechanism ensures stable operation, high rotation accuracy, and excellent cut section quality across all supported profiles.

Dual-Drive Gantry for Precision Sheet Cutting

The sheet cutting section features a Y-axis dual-drive gantry structure for stable high-speed operation. This dual-motor configuration eliminates racking, maintains precise synchronization, and delivers consistently high cutting accuracy and surface quality across the full 4000mm work envelope.

Multi-Profile Compatibility

Beyond standard round, square, and rectangular tubes, the SF4015CM handles angle steel and channel steel profiles, providing exceptional processing flexibility for structural steel applications. This broad compatibility makes it ideal for construction, agricultural machinery, and infrastructure component manufacturing.

Professional Tube Cutting Software

The dedicated tube cutting programming software supports complex cutting processes including intersecting lines, bevel cuts, hole patterns, and slotting. The intuitive interface simplifies programming of complex tube geometries, reducing setup time and enabling efficient batch production.

Multi-Point Tube Support System

Multi-point adjustable tube support wheels prevent sagging and vibration of long tubes during processing, ensuring consistent cutting accuracy across the full 4-meter tube length. Easy height adjustment accommodates different tube diameters while maintaining perfect concentricity with the chuck centerline.

Dual-Zone Intelligent Dust Collection

Independent dust extraction systems for the sheet cutting and tube cutting stations ensure efficient fume collection regardless of operating mode. This dual-zone design optimizes extraction efficiency while maintaining a clean, safe workshop environment suitable for continuous production.

Technical Specifications

Application Scenarios

Applicable Industries: Fitness equipment, agricultural machinery, storage shelves, auto parts, doors and windows guardrails, steel structure accessories, mechanical and electrical equipment, and more.

Applicable Materials: Carbon steel, stainless steel, aluminum alloy, galvanized pipe, seamless pipe, square and rectangular tube, angle steel, channel steel, and other metal profiles.

Typical Applications: 4m tube blanking, fitness equipment pipe processing, shelf column and beam cutting, agricultural machinery pipe fittings processing.

Packaging and Shipping

• Split Export Packaging: Three main packages including main unit, tube cutting assembly and control cabinet, fitting 40ft standard containers
• Fumigated Waterproof Wooden Crates: IP65 grade fumigated waterproof wooden crates complying with ISPM15 international export standards, suitable for ocean transportation
• Precision Chuck Protection: Chuck, rotary joint and other precision components packed separately in shockproof packaging, protected with anti-rust grease
• Guide Rail Anti-Rust Treatment: All guide rails, racks and lead screws coated with anti-rust grease, multi-layer anti-rust packaging
• Machine Reinforcement: Heavy-duty wooden blocks at bottom, bolted fixation, steel strap binding to prevent transportation shifting
• Classified Accessory Packing: Accessories, tools, wearing parts and documents packed separately with detailed bilingual lists
• Installation Service: Engineer on-site installation, commissioning, operation training and cutting process guidance provided

Safety Precautions

• Straighten tubes before clamping; bent or deformed tubes are prohibited from machine cutting
• Two-person coordination required for 4m long tube loading/unloading; use special lifting tools
• Reduce rotation speed and cutting speed appropriately when cutting large diameter thick-walled tubes
• Regularly check chuck air pressure stability; insufficient pressure causes clamping slippage affecting precision
• Confirm tube cutting mechanism is in safe position before sheet cutting to prevent collision
• Adjust support wheel height according to tube diameter to ensure tube concentricity
• Regularly clean iron chips and debris from chuck jaws and support wheels to prevent scratching tube surfaces
• Mode switching must be performed when machine is stopped; never switch stations during operation
